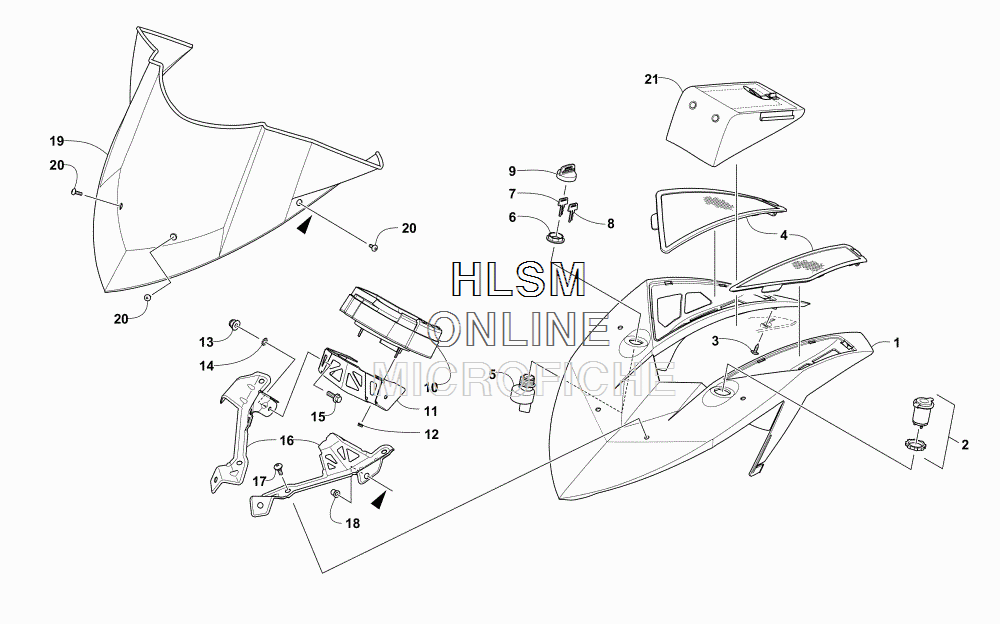

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 9000 ET LTD 129 BLACK [S2016ZRNEEUSB] - 2016 года выпуска
-
№АртикулНазвание
-
16606-398 POD, INSTRUMENT - BLACKPOD, INSTRUMENT - BLACK
-
20641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
31623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40608-736 VENT, INTAKE - RIGHTVENT, INTAKE - RIGHT
-
40608-737 VENT, INTAKE - LEFTVENT, INTAKE - LEFT
-
50609-911 SWITCH, IGNITION (INC. 6-9)SWITCH, IGNITION (INC. 6-9)
-
60430-050 ...NUT, RETAINING...NUT, RETAINING
-
70430-042 ...KEY, IGNITION...KEY, IGNITION
-
80430-043 ...KEY, IGNITION...KEY, IGNITION
-
90430-054 ...COVER, KEY...COVER, KEY
-
100620-390 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
115706-252 BRACKET, SPEEDOMETER GAUGE - CENTER - BLACKBRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
-
120423-493 NUT W/WASHERNUT W/WASHER
-
138427-602 NUT, LOCKNUT, LOCK
-
148053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
158410-616 SCREW, CAPSCREW, CAP
-
165706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACKBRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
-
165706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - BLACKBRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
-
170423-355 SCREW, SHOULDERSCREW, SHOULDER
-
181623-764 NUT, EXPANSIONNUT, EXPANSION
-
196606-134 WINDSHIELD - MID - BLACKWINDSHIELD - MID - BLACK
-
208477-516 SCREW, MACHINESCREW, MACHINE
-
216606-566 BAG, GOGGLEBAG, GOGGLE
