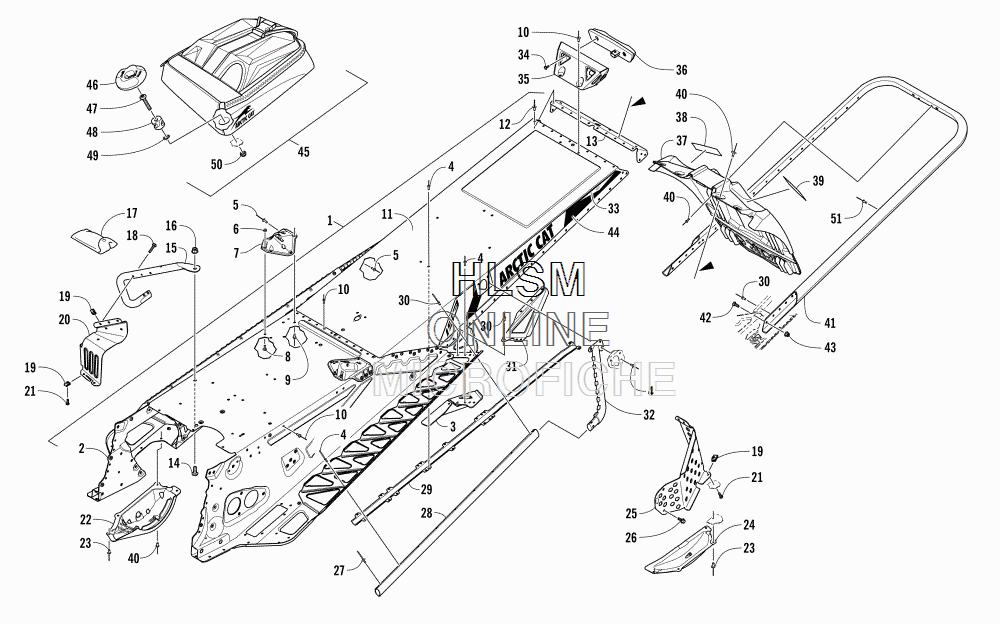

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 LTD 153 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
–2707-092 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-302 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-294 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
32707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-686 ......RIVET ZINC......RIVET ZINC
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 RIVET BLACKRIVET BLACK
-
112707-300 TUNNEL, REAR - BLACKTUNNEL, REAR - BLACK
-
128060-482 RIVET - ZINCRIVET - ZINC
-
131707-725 END CAP, TUNNEL - BLACKEND CAP, TUNNEL - BLACK
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
151707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
151707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
168427-802 NUTNUT
-
170744-090 KIT, TOOLKIT, TOOL
-
188468-535 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
201707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVETRIVET
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
252707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
268408-613 SCREW, CAPSCREW, CAP
-
271623-130 RIVETRIVET
-
281707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
290630-317 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
301623-241 RIVETRIVET
-
312707-288 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
312707-289 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
321707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
321707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
330621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
348470-510 SCREW, MACHINESCREW, MACHINE
-
350730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
360609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
376606-394 SNOWFLAPSNOWFLAP
-
385611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
395611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
408061-706 RIVET - BLACKRIVET - BLACK
-
412707-761 BUMPER, REAR - 153" - GREENBUMPER, REAR - 153" - GREEN
-
428476-620 SCREW, MACHINESCREW, MACHINE
-
438427-602 NUT, LOCKNUT, LOCK
-
443621-322 DECAL, TUNNEL - "153" - RIGHT - BLACKDECAL, TUNNEL - "153" - RIGHT - BLACK
-
443621-323 DECAL, TUNNEL - "153" - LEFT - BLACKDECAL, TUNNEL - "153" - LEFT - BLACK
-
457639-434 BAG, SHOVEL PACK (INC. 46-50)BAG, SHOVEL PACK (INC. 46-50)
-
462623-204 ...RING, CAMLOCK...RING, CAMLOCK
-
478468-525 ...SCREW, MACHINE...SCREW, MACHINE
-
482623-203 ...SPOOL, CAMLOCK...SPOOL, CAMLOCK
-
490423-377 ...WASHER, EXTERNAL TOOTH LOCK...WASHER, EXTERNAL TOOTH LOCK
-
508431-503 ...NUT, LOCK...NUT, LOCK
-
518060-706 RIVET BLACKRIVET BLACK
