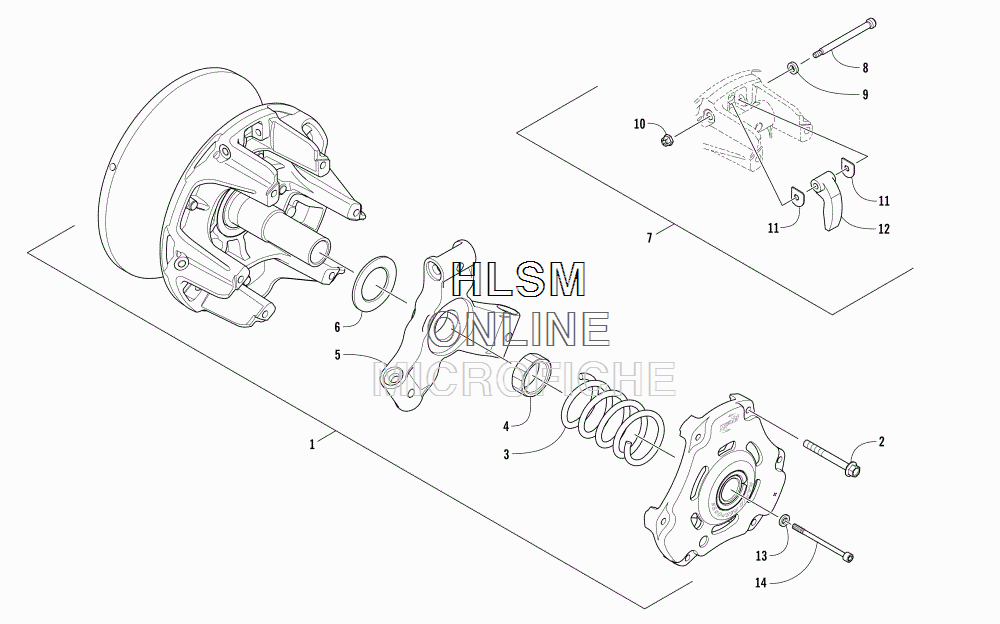

DRIVE CLUTCH для Arctic Cat M 8000 SNO PRO 153 GREEN INTERNATIONAL - 2017 года выпуска

№

Артикул

Название
1

0746-881 CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)

CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)

130 ₽
2

0646-950 ...SCREW, SHOULDER

...SCREW, SHOULDER

1 450 ₽
3

0646-877 SPRING, DRIVE CLUTCH

SPRING, DRIVE CLUTCH

15 800 ₽
4

0646-466 NUT, JAM

NUT, JAM

4 150 ₽
5

0646-957 SPIDER

SPIDER

45 750 ₽
6

0646-964 SHIM - 1.27X210X0.70

SHIM - 1.27X210X0.70

2 070 ₽
6

0646-949 SHIM - 1.270X1.625X.120

SHIM - 1.270X1.625X.120

1 870 ₽
6

0646-965 SHIM - 1.35X1.575X0.030

SHIM - 1.35X1.575X0.030

2 070 ₽
7

7639-127 KIT, CAM ARM (INC. 8-11)

KIT, CAM ARM (INC. 8-11)

24 540 ₽
8

0823-396 ...PIN, CAM ARM

...PIN, CAM ARM

1 870 ₽
9

2623-091 ...WASHER

...WASHER

860 ₽
10

0823-399 ...NUT, LOCK

...NUT, LOCK

1 450 ₽
11

0646-880 ...WASHER, THRUST

...WASHER, THRUST

3 110 ₽
12

0646-894 ARM, CAM

ARM, CAM

8 940 ₽
13

1623-649 WASHER, HIGH COLLAR

WASHER, HIGH COLLAR

860 ₽
14

2623-180 BOLT, CLUTCH

BOLT, CLUTCH

4 150 ₽
