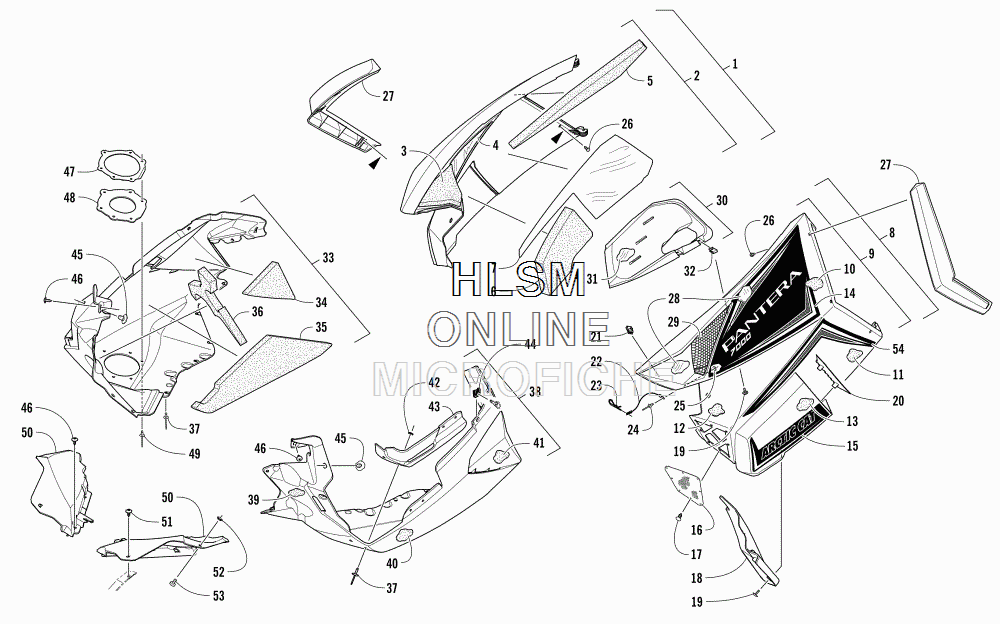

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat PANTERA 7000 LTD BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15718-004 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7,14-15, 22-25, AND 54)PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-7,14-15, 22-25, AND 54)
-
23718-786 ...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7, 22-25)...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7, 22-25)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - CENTER - RIGHT......FOIL, PROTECTIVE - CENTER - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER PANEL - REAR RIGHT......FOIL, PROTECTIVE - LOWER PANEL - REAR RIGHT
-
85718-005 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-17, 22-25, AND 54)PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 9-17, 22-25, AND 54)
-
94718-339 ...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-13,16-17, AND 22-25)...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-13,16-17, AND 22-25)
-
100617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
130617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
143621-312 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
143621-313 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
153621-316 ...DECAL, SIDE PANEL - FRONT - RIGHT...DECAL, SIDE PANEL - FRONT - RIGHT
-
153621-317 ...DECAL, SIDE PANEL - FRONT - LEFT...DECAL, SIDE PANEL - FRONT - LEFT
-
162602-704 ...SCREEN, VENT...SCREEN, VENT
-
170623-269 ...CLIP, RETAINING...CLIP, RETAINING
-
182602-711 DEFLECTOR, AIRDEFLECTOR, AIR
-
190623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
202602-703 RETAINER, AIR DEFLECTORRETAINER, AIR DEFLECTOR
-
211623-637 CLIP, U-NUTCLIP, U-NUT
-
220607-447 CABLECABLE
-
230605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
248060-486 RIVETRIVET
-
258050-127 WASHERWASHER
-
262623-017 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
276606-706 FLARE, SIDE PANEL - RIGHT - BLACKFLARE, SIDE PANEL - RIGHT - BLACK
-
276606-707 FLARE, SIDE PANEL - LEFT - BLACKFLARE, SIDE PANEL - LEFT - BLACK
-
280619-206 FOIL, PROTECTIVE (OPT.)FOIL, PROTECTIVE (OPT.)
-
295706-531 SCREEN, INTAKE - UPPER - LEFT - BLACK (OPT.)SCREEN, INTAKE - UPPER - LEFT - BLACK (OPT.)
-
301702-369 DUCT, BELT COOLING (INC. 31)DUCT, BELT COOLING (INC. 31)
-
316606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
321623-030 CLIP, U-NUTCLIP, U-NUT
-
333718-788 PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 34-36)PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 34-36)
-
340617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
350617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
360617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
378061-708 RIVETRIVET
-
383718-789 PLATE, SKID - LEFT W/FOAM - BLACK (INC. 37, 39-42)PLATE, SKID - LEFT W/FOAM - BLACK (INC. 37, 39-42)
-
390617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
400617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
410617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
420123-802 WASHERWASHER
-
436606-613 PANEL, REINFORCEMENTPANEL, REINFORCEMENT
-
442623-005 CLIP, RETAININGCLIP, RETAINING
-
456606-592 PIN, RETAININGPIN, RETAINING
-
462623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
472612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
482612-964 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
498061-508 RIVETRIVET
-
506606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
506606-579 FASCIA, FRONT LEFT - BLACKFASCIA, FRONT LEFT - BLACK
-
510623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
522623-001 NUT, PUSH (OPT.)NUT, PUSH (OPT.)
-
531623-999 SCREW, THUMB (OPT.)SCREW, THUMB (OPT.)
-
543621-314 DECAL, SIDE PANEL - LOWER - RIGHTDECAL, SIDE PANEL - LOWER - RIGHT
-
543621-315 DECAL, SIDE PANEL - LOWER - LEFTDECAL, SIDE PANEL - LOWER - LEFT
