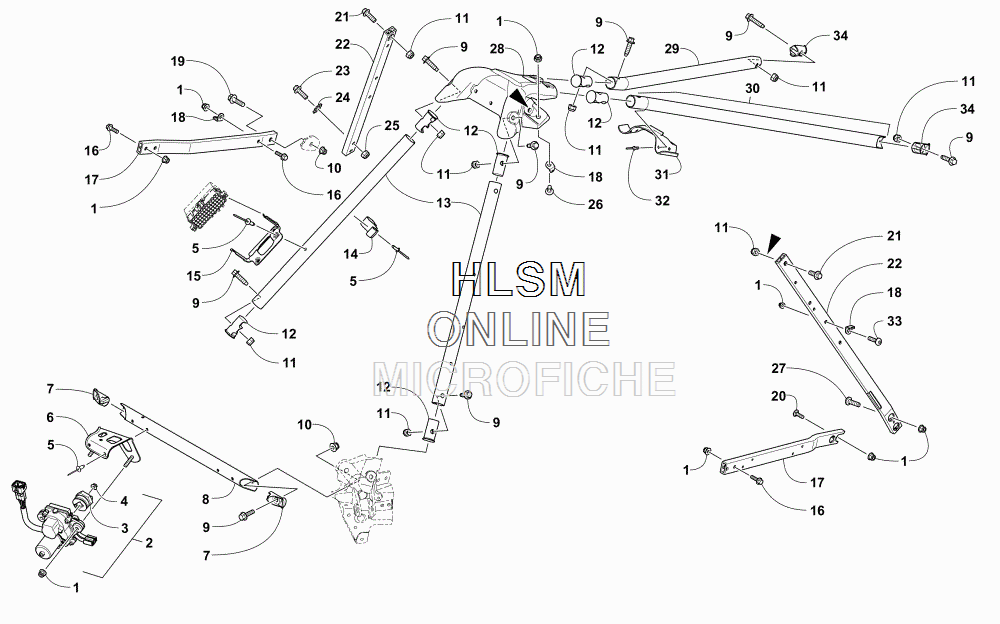

STEERING SUPPORT ASSEMBLY для Arctic Cat XF 6000 HIGH COUNTRY 141 ORANGE INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
20902-012 SERVOMOTOR (INC. 3-4)SERVOMOTOR (INC. 3-4)
-
30902-019 ...PULLEY, CONTROLLER...PULLEY, CONTROLLER
-
48424-501 ...NUT...NUT
-
58060-686 RIVETRIVET
-
64706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
71607-002 INSERTINSERT
-
81707-582 SUPPORT, SHOCK MOUNT BRACKET -BLACKSUPPORT, SHOCK MOUNT BRACKET -BLACK
-
92623-121 SCREW, CAPSCREW, CAP
-
108427-802 NUTNUT
-
118422-802 NUT, LOCKNUT, LOCK
-
121607-747 INSERTINSERT
-
132707-424 SPAR, FRONT - BLACKSPAR, FRONT - BLACK
-
141623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
150645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
168408-630 SCREW, CAPSCREW, CAP
-
170607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
171607-583 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
182612-707 TAB, SPRINGTAB, SPRING
-
198408-885 SCREW, CAPSCREW, CAP
-
201623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
218408-820 SCREW, CAPSCREW, CAP
-
220607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
221607-581 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
238408-625 SCREW, CAPSCREW, CAP
-
248053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
258422-602 NUTNUT
-
268408-620 SCREW, CAPSCREW, CAP
-
278476-616 SCREW, MACHINESCREW, MACHINE
-
281707-571 SUPPORT, STEERINGSUPPORT, STEERING
-
292707-504 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
306706-034 BRACKET, HOLD-DOWN - SEAT-BASE ASSY (INC. 31-32)BRACKET, HOLD-DOWN - SEAT-BASE ASSY (INC. 31-32)
-
316606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
328060-482 ...RIVET...RIVET
-
338476-630 SCREW, MACHINESCREW, MACHINE
-
341607-680 INSERTINSERT
