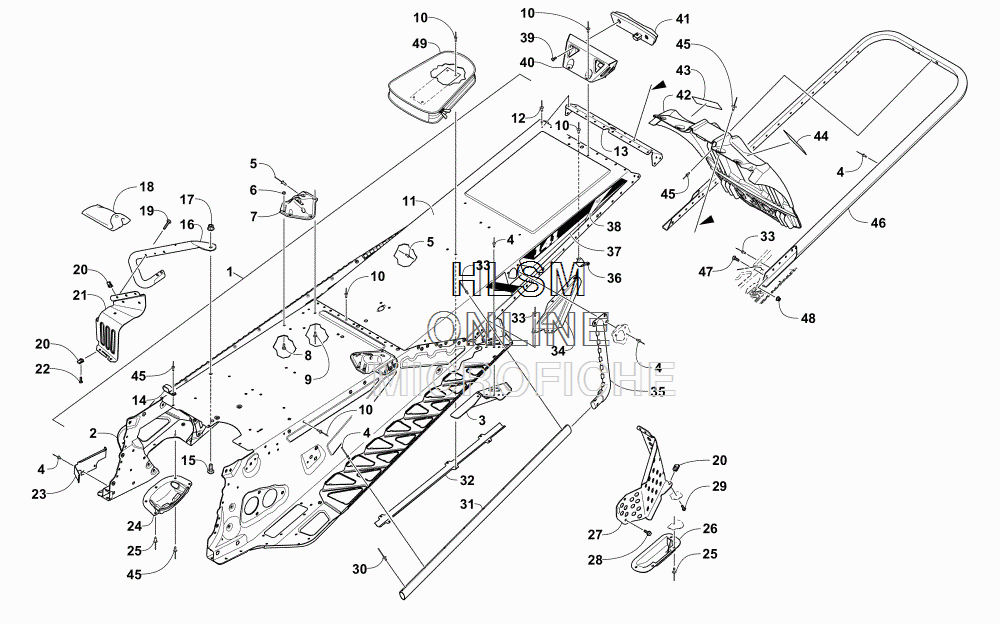

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 6000 HIGH COUNTRY 141 ORANGE INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
-2707-747 COMPLETE CHASSIS ASSEMBLY - ORANGECOMPLETE CHASSIS ASSEMBLY - ORANGE
-
12707-998 TUNNEL ASSEMBLY - ORANGE (INC. 2-13)TUNNEL ASSEMBLY - ORANGE (INC. 2-13)
-
22707-333 ...TUNNEL, FRONT - ASSEMBLY - ORANGE (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - ORANGE (INC. 3-4)
-
32707-324 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - ORANGE......BRACKET, MOUNTING - SUSPENSION - RIGHT - ORANGE
-
32707-325 ......BRACKET, MOUNTING - SUSPENSION - LEFT - ORANGE......BRACKET, MOUNTING - SUSPENSION - LEFT - ORANGE
-
48060-686 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
72707-326 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - ORANGE...BRACKET, MOUNTING - REAR SPAR - RIGHT - ORANGE
-
72707-327 ...BRACKET, MOUNTING - REAR SPAR - LEFT - ORANGE...BRACKET, MOUNTING - REAR SPAR - LEFT - ORANGE
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
112707-988 ...TUNNEL, REAR - ORANGE...TUNNEL, REAR - ORANGE
-
128060-504 ...RIVET...RIVET
-
132707-331 ...END CAP, TUNNEL - ORANGE...END CAP, TUNNEL - ORANGE
-
141623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
161707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
178427-802 NUTNUT
-
180744-089 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
212707-014 FOOTREST - RIGHT ORANGEFOOTREST - RIGHT ORANGE
-
212707-015 FOOTREST - LEFT ORANGEFOOTREST - LEFT ORANGE
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
230608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
241607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
258060-688 RIVETRIVET
-
260607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
272707-043 SHIELD, BRAKE DISC ORANGESHIELD, BRAKE DISC ORANGE
-
288408-613 SCREW, CAPSCREW, CAP
-
298470-520 SCREW, MACHINESCREW, MACHINE
-
301623-130 RIVETRIVET
-
312707-330 ROLL, TUNNEL - ORANGEROLL, TUNNEL - ORANGE
-
320630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
331623-241 RIVETRIVET
-
342707-986 GUSSET, RUNNING BOARD - RIGHT - ORANGEGUSSET, RUNNING BOARD - RIGHT - ORANGE
-
342707-987 GUSSET, RUNNING BOARD - LEFT - ORANGEGUSSET, RUNNING BOARD - LEFT - ORANGE
-
352707-328 GUSSET, TUNNEL ROLL - RIGHT - ORANGEGUSSET, TUNNEL ROLL - RIGHT - ORANGE
-
352707-329 GUSSET, TUNNEL ROLL - LEFT - ORANGEGUSSET, TUNNEL ROLL - LEFT - ORANGE
-
360630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
373621-156 DECAL, TUNNEL - RIGHT - ORANGEDECAL, TUNNEL - RIGHT - ORANGE
-
373621-157 DECAL, TUNNEL - LEFT - ORANGEDECAL, TUNNEL - LEFT - ORANGE
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
398470-510 SCREW, MACHINESCREW, MACHINE
-
400730-231 BRACKET, MOUNTING - TAILLIGHT - ORANGEBRACKET, MOUNTING - TAILLIGHT - ORANGE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458061-706 RIVETRIVET
-
462707-574 BUMPER, REAR - WHITEBUMPER, REAR - WHITE
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
496606-615 BAG, BELTBAG, BELT
