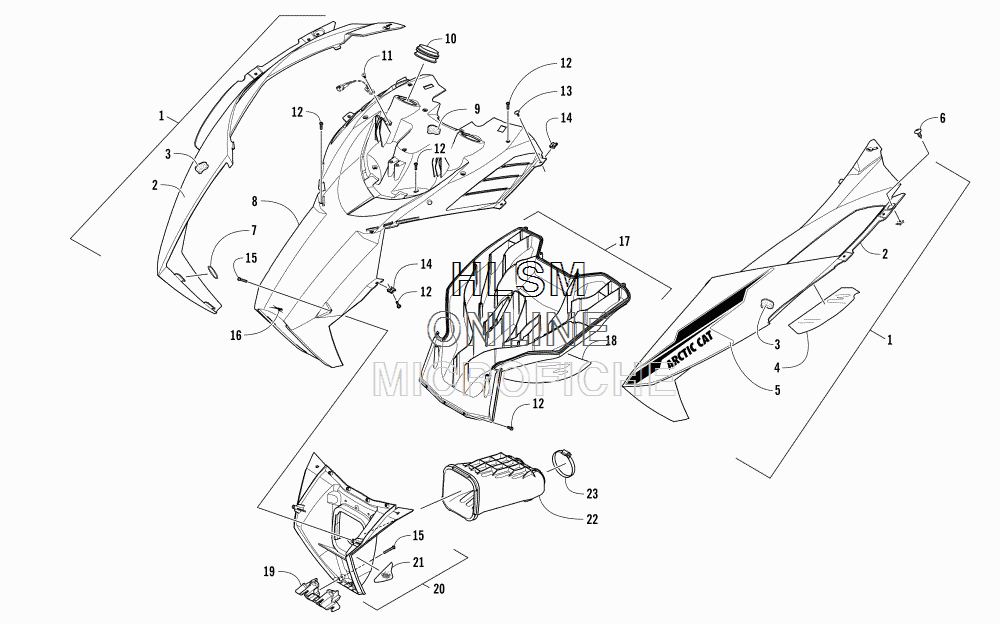

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat XF 8000 CROSSTREK ES 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
15718-046 HOOD W/DECALS - RIGHT - GREEN (INC. 2-3 AND 5)HOOD W/DECALS - RIGHT - GREEN (INC. 2-3 AND 5)
-
15718-047 HOOD W/DECALS - LEFT - GREEN (INC. 2-5)HOOD W/DECALS - LEFT - GREEN (INC. 2-5)
-
23718-656 ...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)
-
23718-657 ...HOOD W/O DECALS - LEFT - GREEN (INC. 3-4)...HOOD W/O DECALS - LEFT - GREEN (INC. 3-4)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE - HOOD - LEFT......FOIL, PROTECTIVE - HOOD - LEFT
-
53621-152 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
53621-153 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
60623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
71623-960 O-RINGO-RING
-
85706-356 PLENUM, INTAKE - UPPER (INC. 9)PLENUM, INTAKE - UPPER (INC. 9)
-
90617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
106606-386 SEALSEAL
-
110623-165 CLIP, RETAININGCLIP, RETAINING
-
121623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141623-939 NUT, UNUT, U
-
151623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
164411-479 DECAL, AIRCATDECAL, AIRCAT
-
176706-151 PLENUM, INTAKE - LOWER REAR (INC. 18)PLENUM, INTAKE - LOWER REAR (INC. 18)
-
187606-307 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
196606-822 RETAINER, PLENUMRETAINER, PLENUM
-
205706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)
-
210621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
222670-328 BOOTBOOT
-
230423-018 CLAMP, HOSECLAMP, HOSE
