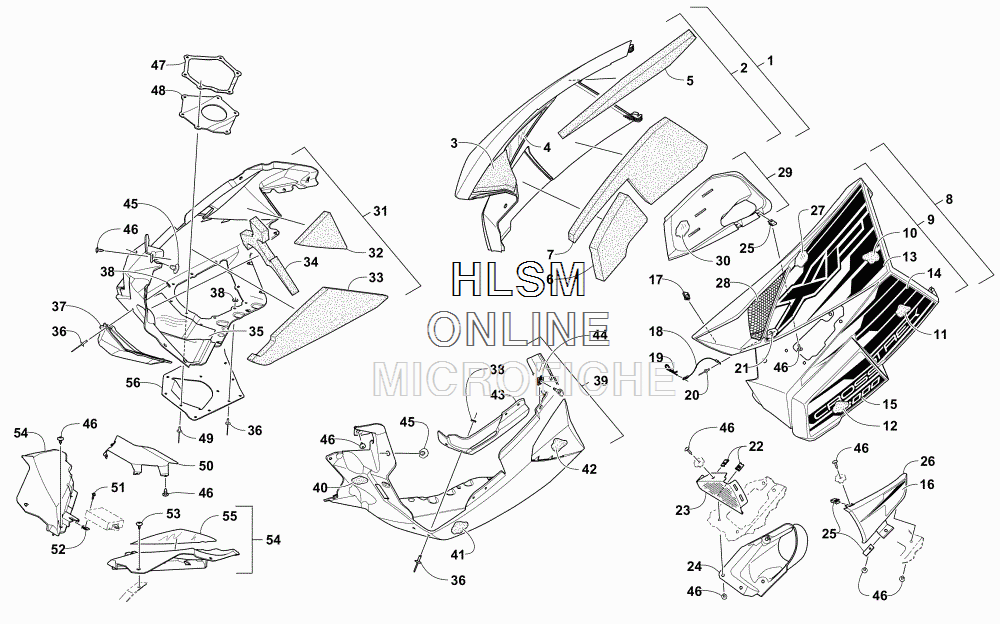

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 8000 CROSSTREK ES 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
15718-064 PANEL, SIDE - RIGHT W/DECALS - GREEN (INC. 2-7, 13-16, AND 18-21)PANEL, SIDE - RIGHT W/DECALS - GREEN (INC. 2-7, 13-16, AND 18-21)
-
23718-858 ...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7 AND 18-21)...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7 AND 18-21)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE SIDE PANEL - RIGHT......FOIL, PROTECTIVE - MIDDLE SIDE PANEL - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
85718-065 PANEL, SIDE - LEFT W/DECALS - GREEN (INC. 9-15 AND 17-21)PANEL, SIDE - LEFT W/DECALS - GREEN (INC. 9-15 AND 17-21)
-
94718-577 ...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 10-12 AND 17-21)...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 10-12 AND 17-21)
-
100617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
133621-140 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
133621-141 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
143621-144 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
143621-145 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
153621-150 ...DECAL, SIDE PANEL - FRONT - RIGHT...DECAL, SIDE PANEL - FRONT - RIGHT
-
153621-151 ...DECAL, SIDE PANEL - FRONT - LEFT...DECAL, SIDE PANEL - FRONT - LEFT
-
163621-142 DECAL, SIDE PANEL - MID - RIGHTDECAL, SIDE PANEL - MID - RIGHT
-
163621-155 DECAL, SIDE PANEL - VENT - LEFTDECAL, SIDE PANEL - VENT - LEFT
-
171623-637 CLIP, U-NUTCLIP, U-NUT
-
180607-447 CABLECABLE
-
190605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
208060-486 RIVETRIVET
-
218050-127 WASHERWASHER
-
221623-052 CLIP, U-NUTCLIP, U-NUT
-
236606-925 SCREEN, INTAKESCREEN, INTAKE
-
242602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
251623-030 CLIP, U-NUTCLIP, U-NUT
-
262602-801 DUCT, INTAKE - OUTER - GREENDUCT, INTAKE - OUTER - GREEN
-
270619-206 FOIL, PROTECTIVE (OPT.)FOIL, PROTECTIVE (OPT.)
-
285706-531 SCREEN, INTAKE - (OPT.)SCREEN, INTAKE - (OPT.)
-
291702-369 DUCT, BELT COOLING (INC. 30)DUCT, BELT COOLING (INC. 30)
-
306606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
314718-158 PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 32-38, AND 49)PLATE, SKID - RIGHT W/FOAM- BLACK (INC. 32-38, AND 49)
-
320617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
330617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
340617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
352612-970 ...FOIL, PROTECTIVE - RIGHT...FOIL, PROTECTIVE - RIGHT
-
368061-708 ...RIVET...RIVET
-
372612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
380123-802 ...WASHER...WASHER
-
393718-789 PLATE, SKID - LEFT W/FOAM - BLACK (INC. 36, 38, AND 40-43)PLATE, SKID - LEFT W/FOAM - BLACK (INC. 36, 38, AND 40-43)
-
400617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
410617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
420617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
436606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
442623-005 CLIP, RETAININGCLIP, RETAINING
-
456606-592 PIN, RETAININGPIN, RETAINING
-
462623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
472612-972 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
482612-971 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
498061-710 RIVETRIVET
-
506606-295 SHIELD, HEAT - EMCSHIELD, HEAT - EMC
-
518408-620 SCREW, CAPSCREW, CAP
-
520423-031 NUT, SPEEDNUT, SPEED
-
530623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
546606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
543718-303 FASCIA, FRONT - LEFT - BLACK (INC. 55)FASCIA, FRONT - LEFT - BLACK (INC. 55)
-
556606-405 ...FOIL, PROTECTIVE - FILLER PANEL - LEFT...FOIL, PROTECTIVE - FILLER PANEL - LEFT
-
561712-963 DEFLECTOR, EXHAUST OUTLET - BLACKDEFLECTOR, EXHAUST OUTLET - BLACK
