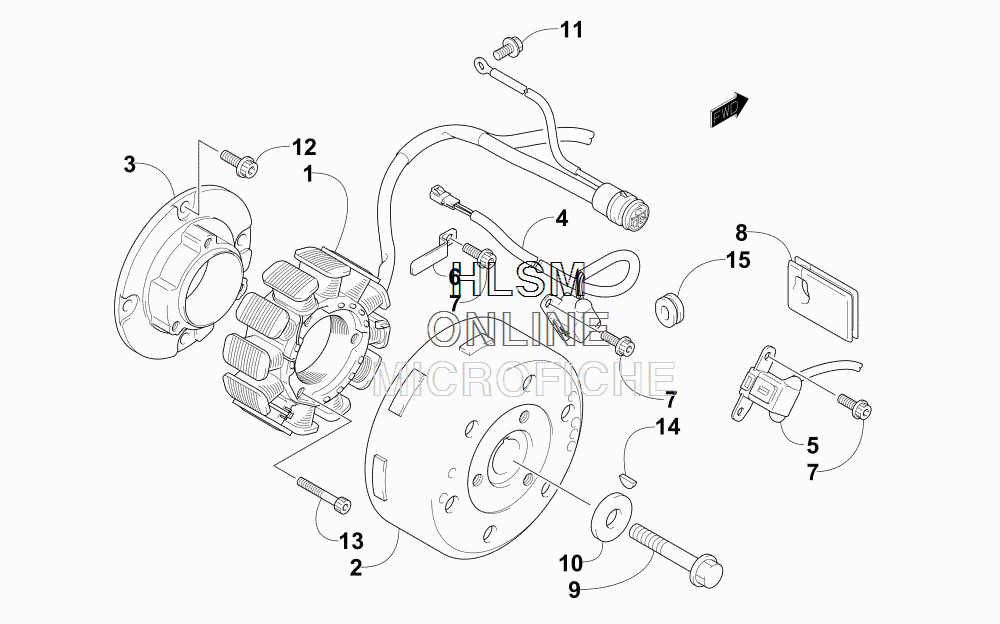

MAGNETO для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13007-711 STATOR ASSEMBLYSTATOR ASSEMBLY
-
23007-315 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33007-546 BASE, STATOR - PLATEBASE, STATOR - PLATE
-
43007-317 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
53007-318 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
63005-960 RETAINER, WIRERETAINER, WIRE
-
73007-433 BOLTBOLT
-
83005-775 GROMMETGROMMET
-
93006-476 BOLTBOLT
-
103005-987 WASHERWASHER
-
113007-371 BOLTBOLT
-
123007-449 BOLTBOLT
-
133007-450 BOLTBOLT
-
143004-540 KEY, WOODRUFFKEY, WOODRUFF
-
153007-547 GROMMETGROMMET
