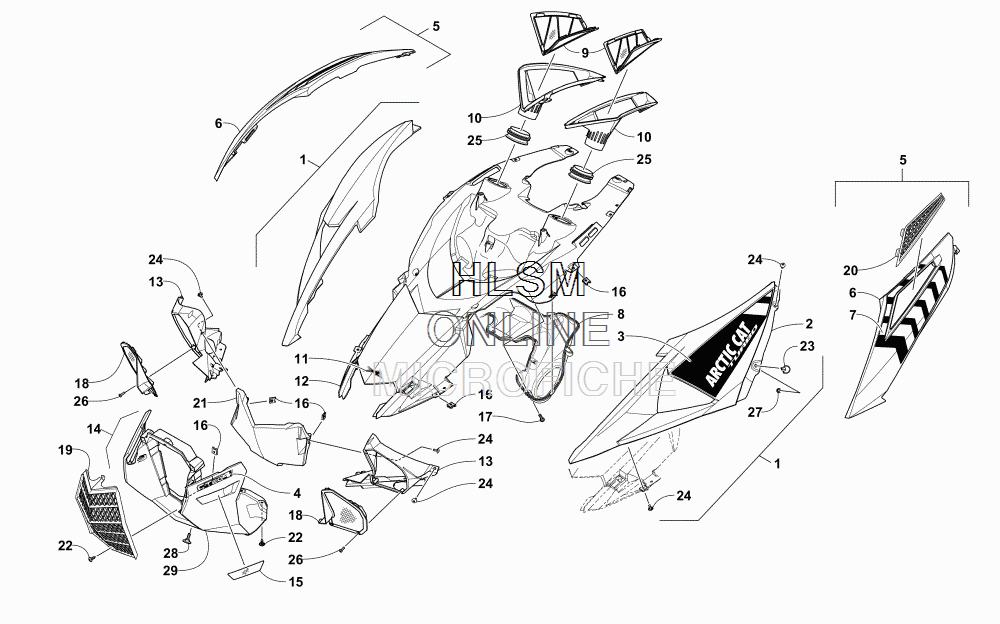

HOOD ASSEMBLY для Arctic Cat XF 9000 CROSS COUNTRY 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
15718-270 HOOD W/DECALS - RIGHT - BLACK (INC. 2-3)HOOD W/DECALS - RIGHT - BLACK (INC. 2-3)
-
15718-271 HOOD W/DECALS - LEFT - BLACK (INC. 2-3)HOOD W/DECALS - LEFT - BLACK (INC. 2-3)
-
27606-138 ...HOOD W/O DECALS - RIGHT - BLACK...HOOD W/O DECALS - RIGHT - BLACK
-
27606-139 ...HOOD W/O DECALS - LEFT - BLACK...HOOD W/O DECALS - LEFT - BLACK
-
33621-616 ...DECAL, HOOD - REAR - RIGHT...DECAL, HOOD - REAR - RIGHT
-
33621-617 ...DECAL, HOOD - REAR - LEFT...DECAL, HOOD - REAR - LEFT
-
40621-993 DECAL, HOOD - "C-TEC4"DECAL, HOOD - "C-TEC4"
-
55718-272 PANEL, UPPER SIDE W/DECALS - RIGHT - BLACK (INC. 6-7)PANEL, UPPER SIDE W/DECALS - RIGHT - BLACK (INC. 6-7)
-
55718-273 PANEL, UPPER SIDE W/DECALS - LEFT - BLACK (INC. 6-7)PANEL, UPPER SIDE W/DECALS - LEFT - BLACK (INC. 6-7)
-
67606-152 ...PANEL, UPPER SIDE - RIGHT - BLACK...PANEL, UPPER SIDE - RIGHT - BLACK
-
67606-153 ...PANEL, UPPER SIDE - LEFT - BLACK...PANEL, UPPER SIDE - LEFT - BLACK
-
73621-618 ...DECAL, UPPER SIDE PANEL - RIGHT...DECAL, UPPER SIDE PANEL - RIGHT
-
73621-619 ...DECAL, UPPER SIDE PANEL - LEFT...DECAL, UPPER SIDE PANEL - LEFT
-
82670-500 PLENUM, INTAKE - LOWERPLENUM, INTAKE - LOWER
-
90608-758 SCREEN, INTAKE DUCT - RIGHTSCREEN, INTAKE DUCT - RIGHT
-
90608-759 SCREEN, INTAKE DUCT - LEFTSCREEN, INTAKE DUCT - LEFT
-
100608-748 DUCT, INTAKE - RIGHTDUCT, INTAKE - RIGHT
-
100608-749 DUCT, INTAKE - LEFTDUCT, INTAKE - LEFT
-
114411-479 DECAL, AIRCATDECAL, AIRCAT
-
127606-095 PLENUM, INTAKE - UPPERPLENUM, INTAKE - UPPER
-
137606-054 VENT - RIGHTVENT - RIGHT
-
137606-055 VENT - LEFTVENT - LEFT
-
145718-284 FASCIA, FRONT W/DECAL - BLACK (INC. 4 AND 29)FASCIA, FRONT W/DECAL - BLACK (INC. 4 AND 29)
-
152621-915 DECAL, REFLECTOR - AMBERDECAL, REFLECTOR - AMBER
-
161623-939 NUT, UNUT, U
-
171623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
187606-056 BEZEL, VENT - RIGHTBEZEL, VENT - RIGHT
-
187606-057 BEZEL, VENT - LEFTBEZEL, VENT - LEFT
-
197606-117 GRILLEGRILLE
-
207606-272 VENT, UPPER - SIDE PANEL - RIGHTVENT, UPPER - SIDE PANEL - RIGHT
-
207606-273 VENT, UPPER - SIDE PANEL - LEFTVENT, UPPER - SIDE PANEL - LEFT
-
217606-097 CLOSE-OFFCLOSE-OFF
-
222623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
232623-003 PIN, RETAININGPIN, RETAINING
-
242623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
256606-386 SEALSEAL
-
262623-211 SCREWSCREW
-
272623-004 NUT, PUSHNUT, PUSH
-
281423-060 SCREW, SHOULDERSCREW, SHOULDER
-
297606-196 FASCIA, FRONT W/O DECAL - BLACKFASCIA, FRONT W/O DECAL - BLACK
