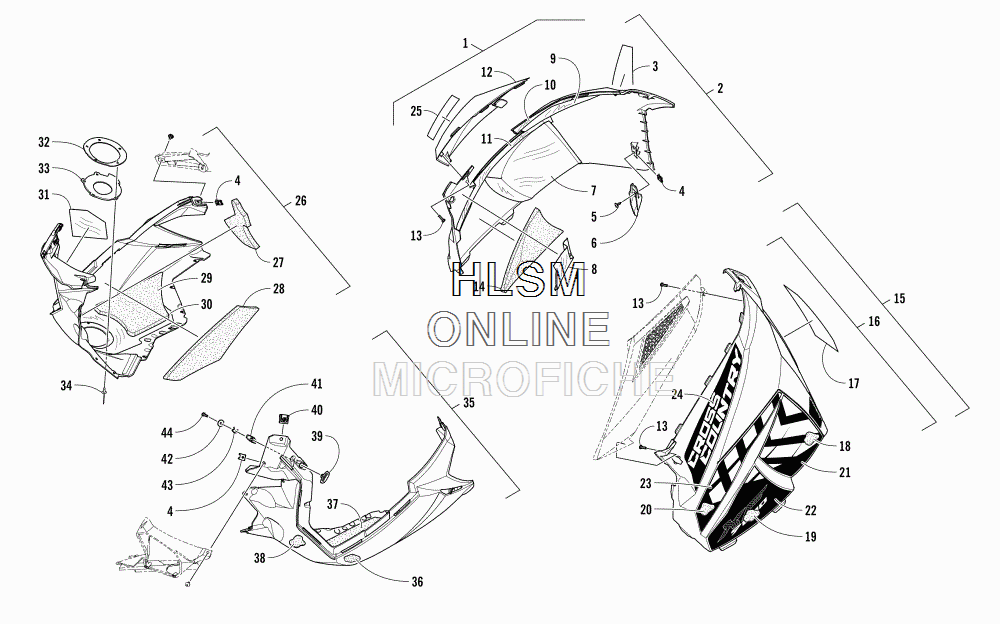

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 9000 CROSS COUNTRY 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
15718-274 PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-14 AND 21-25)PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-14 AND 21-25)
-
25718-030 ...PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 3-14)...PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 3-14)
-
33621-487 ......DECAL, WARNING - ENGLISH......DECAL, WARNING - ENGLISH
-
41623-939 ......NUT, U......NUT, U
-
52623-166 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
67606-292 ......HOOK, MOUNTING - RIGHT......HOOK, MOUNTING - RIGHT
-
67606-293 ......HOOK, MOUNTING - LEFT......HOOK, MOUNTING - LEFT
-
77606-076 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
-
87606-498 ......FOIL, PROTECTIVE - UPPER FRONT - RIGHT......FOIL, PROTECTIVE - UPPER FRONT - RIGHT
-
97606-288 ......FOIL, PROTECTIVE - UPPER - RIGHT......FOIL, PROTECTIVE - UPPER - RIGHT
-
107606-432 ......FOIL, PROTECTIVE - RIGHT......FOIL, PROTECTIVE - RIGHT
-
117606-116 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
127606-091 ......VENT, SIDE PANEL......VENT, SIDE PANEL
-
132623-211 ......SCREW......SCREW
-
140617-754 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
155718-275 PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 4-6 AND 16-24)PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 4-6 AND 16-24)
-
165718-031 ...PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 4-6 AND 17-20)...PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 4-6 AND 17-20)
-
173621-486 ......DECAL, WARNING - FRENCH......DECAL, WARNING - FRENCH
-
180617-757 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
190617-755 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
200617-759 ......FOAM, SIDE PANEL - MIDDLE - LEFT......FOAM, SIDE PANEL - MIDDLE - LEFT
-
213621-626 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
213621-627 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
223621-622 ...DECAL, SIDE PANEL - LOWER FRONT - "9000" - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - "9000" - RIGHT
-
223621-623 ...DECAL, SIDE PANEL - LOWER FRONT - "9000" - LEFT...DECAL, SIDE PANEL - LOWER FRONT - "9000" - LEFT
-
233621-624 ...DECAL, SIDE PANEL - MID FRONT - RIGHT...DECAL, SIDE PANEL - MID FRONT - RIGHT
-
233621-625 ...DECAL, SIDE PANEL - MID FRONT - LEFT...DECAL, SIDE PANEL - MID FRONT - LEFT
-
243621-620 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT...DECAL, SIDE PANEL - UPPER REAR - RIGHT
-
243621-621 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT...DECAL, SIDE PANEL - UPPER FRONT - LEFT
-
253621-628 DECAL, SIDE PANEL - LOWER VENT - RIGHTDECAL, SIDE PANEL - LOWER VENT - RIGHT
-
264718-970 PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 27-31, AND 39-44)PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 27-31, AND 39-44)
-
270617-760 ...FOAM, SKID PLATE - FRONT - RIGHT...FOAM, SKID PLATE - FRONT - RIGHT
-
280617-762 ...FOAM, SKID PLATE - MIDDLE - RIGHT...FOAM, SKID PLATE - MIDDLE - RIGHT
-
290617-764 ...FOAM, SKID PLATE - LOWER - RIGHT...FOAM, SKID PLATE - LOWER - RIGHT
-
303612-192 ...FOIL, SKID PLATE - RIGHT...FOIL, SKID PLATE - RIGHT
-
313612-274 ...FOIL, SKID PLATE - RIGHT...FOIL, SKID PLATE - RIGHT
-
323612-193 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
333612-191 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
348061-708 RIVETRIVET
-
354718-971 PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4 AND 36-44)PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4 AND 36-44)
-
360617-765 ...FOAM, SKID PLATE - LOWER - LEFT...FOAM, SKID PLATE - LOWER - LEFT
-
370617-763 ...FOAM, SKID PLATE - MIDDLE - LEFT...FOAM, SKID PLATE - MIDDLE - LEFT
-
380617-761 ...FOAM, SKID PLATE - FRONT - LEFT...FOAM, SKID PLATE - FRONT - LEFT
-
397606-265 ...KNOB, HOLDDOWN...KNOB, HOLDDOWN
-
402623-005 ...CLIP, RETAINING...CLIP, RETAINING
-
417606-296 ...PLATE, BACKING...PLATE, BACKING
-
422623-171 ...WASHER, FLAT...WASHER, FLAT
-
432623-155 ...CLIP, RETAINING...CLIP, RETAINING
-
441623-933 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
