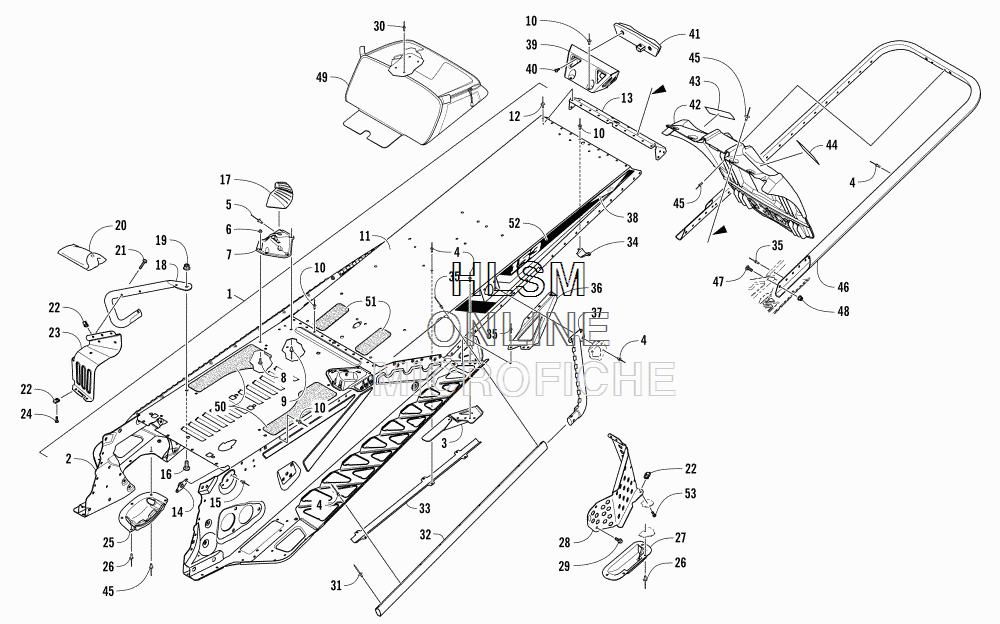

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 1.7 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
-2707-845 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-967 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-962 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
32707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET...RIVET
-
112707-965 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
128060-482 ...RIVET...RIVET
-
131707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
140608-631 PLATE, RETAININGPLATE, RETAINING
-
158060-708 RIVETRIVET
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
176606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
176606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
182707-684 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
182707-685 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
198427-802 NUTNUT
-
200744-088 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
231707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
231707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
251607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-708 RIVETRIVET
-
270607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
282707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
298408-613 SCREW, CAPSCREW, CAP
-
308061-628 RIVETRIVET
-
311623-130 RIVETRIVET
-
321707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
330630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
340630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
351623-241 RIVETRIVET
-
362707-288 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
362707-289 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
371707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
371707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
390730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
458061-706 RIVETRIVET
-
462707-761 BUMPER, REAR - 153" - GREENBUMPER, REAR - 153" - GREEN
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
497606-419 SADDLEBAG, REARSADDLEBAG, REAR
-
506606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
506606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
516606-877 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
523621-512 DECAL, TUNNEL - 153" - RIGHTDECAL, TUNNEL - 153" - RIGHT
-
523621-513 DECAL, TUNNEL - 153" - LEFTDECAL, TUNNEL - 153" - LEFT
-
538470-520 SCREW, MACHINESCREW, MACHINE
