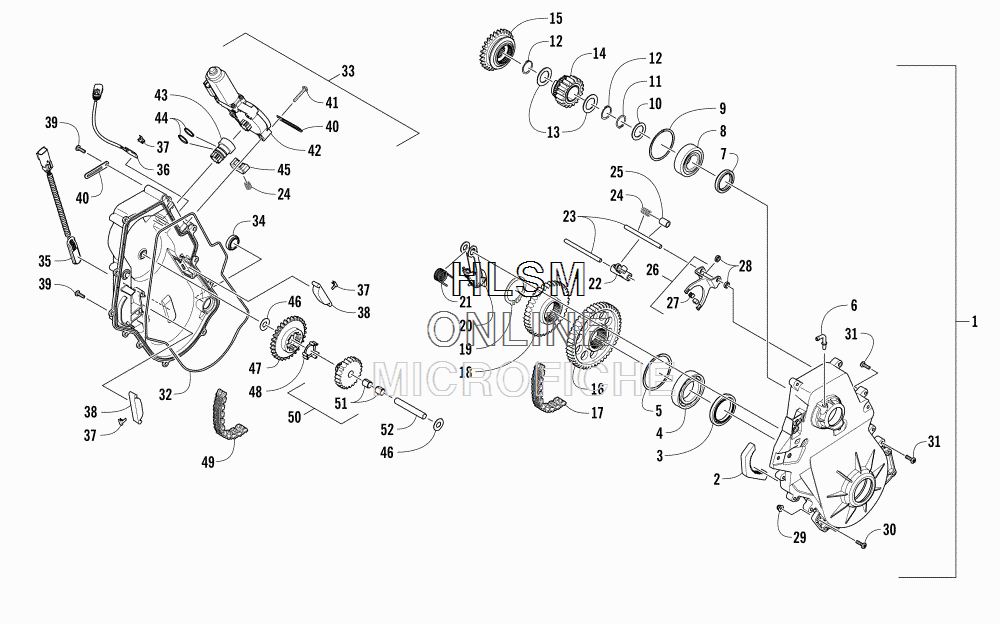

CHAIN CASE ASSEMBLY для Arctic Cat ZR 3000 LXR 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
11702-451 CHAIN CASE ASSEMBLY (INC. 2-13)CHAIN CASE ASSEMBLY (INC. 2-13)
-
22602-230 PLATE, RATCHETPLATE, RATCHET
-
32602-172 SEALSEAL
-
42602-281 BEARINGBEARING
-
52602-280 RING, RETAININGRING, RETAINING
-
62602-641 FITTING, ELBOWFITTING, ELBOW
-
72602-204 SEALSEAL
-
82602-734 BEARINGBEARING
-
92602-236 RING, RETAININGRING, RETAINING
-
100648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
111423-175 RING, RETAININGRING, RETAINING
-
121623-690 RING, RETAININGRING, RETAINING
-
132602-922 WASHER, THRUSTWASHER, THRUST
-
141702-416 SPROCKET - 19T (13 WIDE)SPROCKET - 19T (13 WIDE)
-
152602-270 GEAR, SHIFT - REVERSEGEAR, SHIFT - REVERSE
-
162602-746 SPROCKET - 50T (13 WIDE)SPROCKET - 50T (13 WIDE)
-
172602-760 CHAIN - 90P (13 WIDE)CHAIN - 90P (13 WIDE)
-
182602-276 SPROCKET - 40T (11 WIDE)SPROCKET - 40T (11 WIDE)
-
192602-629 RING, RETAININGRING, RETAINING
-
201702-398 ARM, TENSIONER - ASSEMBLYARM, TENSIONER - ASSEMBLY
-
212602-336 SPRINGSPRING
-
221702-265 ARM, SHIFT FORKARM, SHIFT FORK
-
232602-418 SHAFT, REVERSESHAFT, REVERSE
-
242602-417 SPRINGSPRING
-
252602-996 BUSHINGBUSHING
-
261702-299 SHIFT FORK - ASSEMBLY (INC. 27)SHIFT FORK - ASSEMBLY (INC. 27)
-
272602-341 ...PAD, WEAR - SHIFT FORK...PAD, WEAR - SHIFT FORK
-
282602-997 BUSHINGBUSHING
-
298427-602 NUT, LOCKNUT, LOCK
-
308476-630 SCREW, MACHINESCREW, MACHINE
-
311623-814 SCREW, MACHINESCREW, MACHINE
-
322602-817 SEAL, CHAIN CASESEAL, CHAIN CASE
-
331702-446 COVER, CHAIN CASE (INC. 34-38)COVER, CHAIN CASE (INC. 34-38)
-
342602-232 ...GLASS, SIGHT...GLASS, SIGHT
-
350730-172 ...KIT, SPEEDOMETER SENSOR...KIT, SPEEDOMETER SENSOR
-
360730-197 ...KIT, GEAR POSITION SENSOR...KIT, GEAR POSITION SENSOR
-
371623-703 ...CLIP...CLIP
-
382602-387 ...SNUBBER, CHAIN...SNUBBER, CHAIN
-
398468-626 SCREW, MACHINESCREW, MACHINE
-
401623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
412623-157 SCREW, MACHINESCREW, MACHINE
-
420630-285 ACTUATOR, REVERSEACTUATOR, REVERSE
-
430630-331 EXTENSION, ACTUATOREXTENSION, ACTUATOR
-
440830-185 O-RINGO-RING
-
450630-332 BLOCK, DETENTBLOCK, DETENT
-
462602-338 WASHER, THRUSTWASHER, THRUST
-
472602-920 GEAR, REVERSE IDLER - 30T (11 WIDE)GEAR, REVERSE IDLER - 30T (11 WIDE)
-
482602-415 INSERT, IDLERINSERT, IDLER
-
492602-342 CHAIN - 68P (11 WIDE)CHAIN - 68P (11 WIDE)
-
501702-173 IDLER, REVERSE - ASSEMBLY (INC. 51)IDLER, REVERSE - ASSEMBLY (INC. 51)
-
512602-337 ...BEARING...BEARING
-
522602-277 SHAFT, REVERSESHAFT, REVERSE
