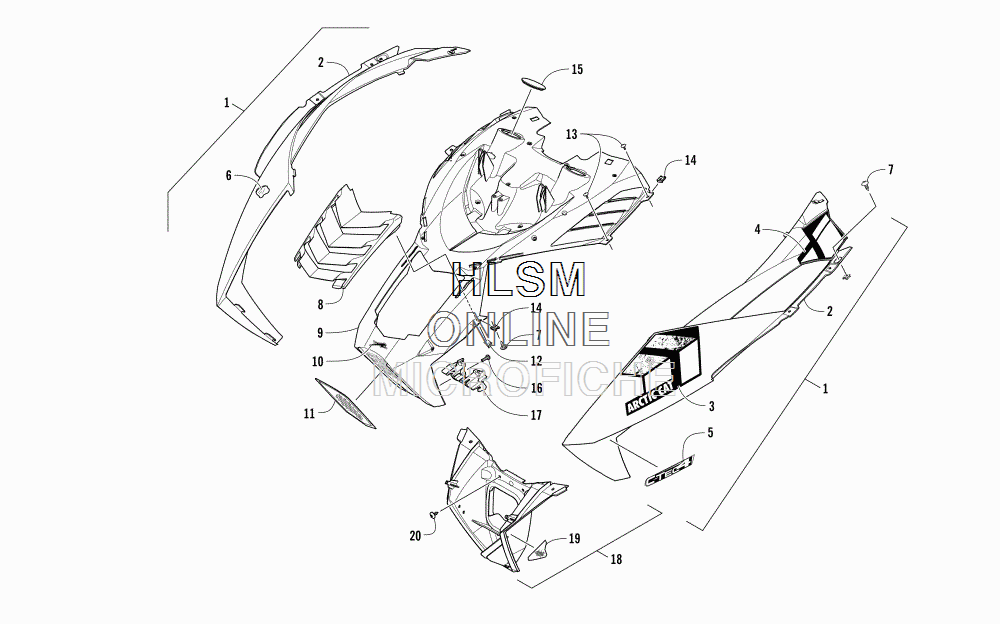

HOOD ASSEMBLY для Arctic Cat ZR 3000 LXR 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15718-096 HOOD W/DECALS - RIGHT - BLACK (INC. 2-4 AND ONE NO. 5)HOOD W/DECALS - RIGHT - BLACK (INC. 2-4 AND ONE NO. 5)
-
15718-097 HOOD W/DECALS - LEFT - BLACK (INC. 2-4 AND ONE NO. 5)HOOD W/DECALS - LEFT - BLACK (INC. 2-4 AND ONE NO. 5)
-
25718-088 ...HOOD W/O DECALS - W/PROTECTIVE FOIL - RIGHT - BLACK...HOOD W/O DECALS - W/PROTECTIVE FOIL - RIGHT - BLACK
-
26606-319 ...HOOD W/O DECALS - LEFT - BLACK...HOOD W/O DECALS - LEFT - BLACK
-
33621-260 ...DECAL, HOOD - FRONT - RIGHT...DECAL, HOOD - FRONT - RIGHT
-
33621-261 ...DECAL, HOOD - FRONT - LEFT...DECAL, HOOD - FRONT - LEFT
-
43621-258 ...DECAL, HOOD - REAR - RIGHT...DECAL, HOOD - REAR - RIGHT
-
43621-259 ...DECAL, HOOD - REAR - LEFT...DECAL, HOOD - REAR - LEFT
-
52621-993 ...DECAL, TUNNEL - LEFT...DECAL, TUNNEL - LEFT
-
62670-550 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
70623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
86606-388 GRILLE, INTERCOOLERGRILLE, INTERCOOLER
-
96606-510 PLENUM, INTAKE - UPPERPLENUM, INTAKE - UPPER
-
104411-479 DECAL, AIRCATDECAL, AIRCAT
-
110608-696 SCREEN, VENTSCREEN, VENT
-
121623-694 CLIP, RETAININGCLIP, RETAINING
-
130623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141623-939 NUT, UNUT, U
-
152623-055 PLUGPLUG
-
161623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
176606-822 RETAINER, PLENUMRETAINER, PLENUM
-
185706-992 PLENUM, INTAKE - LOWER FRONT (INC. 19)PLENUM, INTAKE - LOWER FRONT (INC. 19)
-
190621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
201623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
