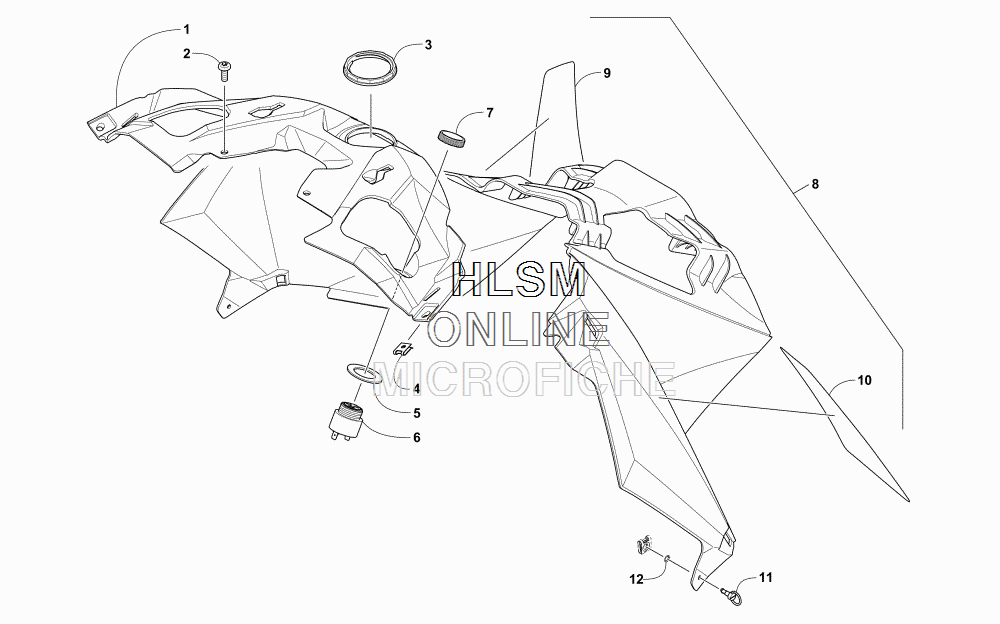

CONSOLE ASSEMBLY для Arctic Cat ZR 6000 LTD ES 129 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
16606-305 CONSOLE, UPPER - BLACKCONSOLE, UPPER - BLACK
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
36606-390 NUT, RETAININGNUT, RETAINING
-
41623-939 NUT, UNUT, U
-
50630-264 WASHERWASHER
-
60630-243 ALARM, REVERSE (INC. 7)ALARM, REVERSE (INC. 7)
-
70630-017 ...RING, RETAINING...RING, RETAINING
-
83718-998 CONSOLE, LOWER, W/WARNING DECALS - BLACK (INC. 9-10)CONSOLE, LOWER, W/WARNING DECALS - BLACK (INC. 9-10)
-
99611-499 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
109611-498 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
112623-003 PIN, RETAININGPIN, RETAINING
-
122623-004 NUT, PUSHNUT, PUSH
