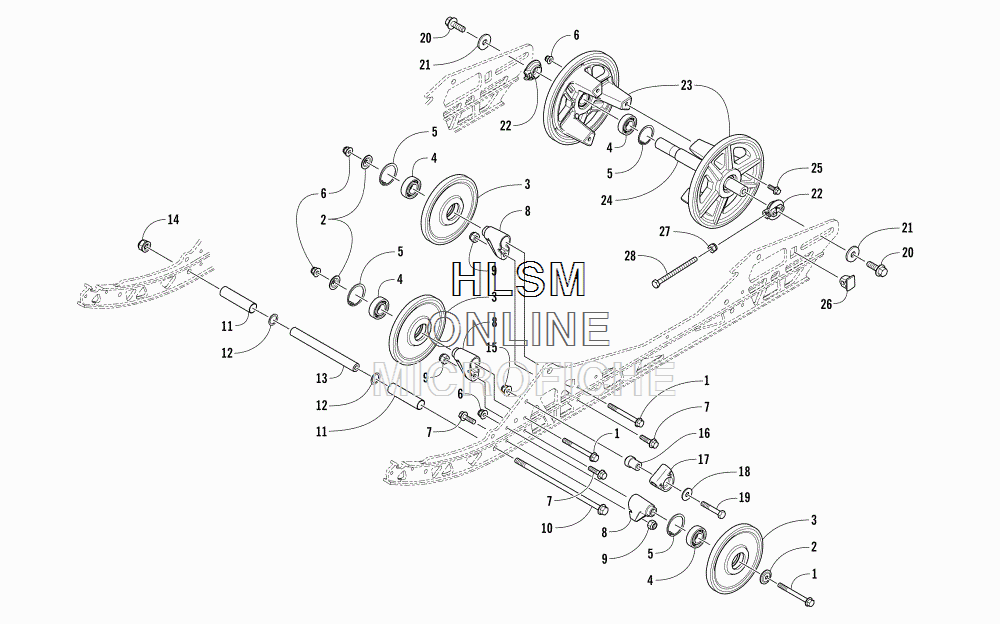

IDLER WHEEL ASSEMBLY для Arctic Cat ZR 6000 LTD ES 129 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW, CAPSCREW, CAP
-
22623-025 WASHERWASHER
-
33604-039 WHEEL, IDLER (INC. 4-5)WHEEL, IDLER (INC. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
68427-602 NUT, LOCKNUT, LOCK
-
78413-620 SCREW, CAPSCREW, CAP
-
83604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
98422-602 NUTNUT
-
101423-064 SCREW, CAPSCREW, CAP
-
113604-083 SPACERSPACER
-
120623-912 WASHERWASHER
-
133604-269 AXLEAXLE
-
142623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
158427-802 NUTNUT
-
163604-204 BLOCK, SLIDEBLOCK, SLIDE
-
172604-515 SLIDE, SPRINGSLIDE, SPRING
-
188450-133 WASHERWASHER
-
198408-855 SCREW, CAPSCREW, CAP
-
208413-031 SCREW, CAPSCREW, CAP
-
211623-931 WASHERWASHER
-
223604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
234604-138 WHEEL, IDLER - TRI-HUB (INC. TWO NO. 4-5)WHEEL, IDLER - TRI-HUB (INC. TWO NO. 4-5)
-
243604-640 AXLE, REARAXLE, REAR
-
258408-620 SCREW, CAPSCREW, CAP
-
263604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
278422-802 NUT, LOCKNUT, LOCK
-
281623-682 SCREW, CAPSCREW, CAP
