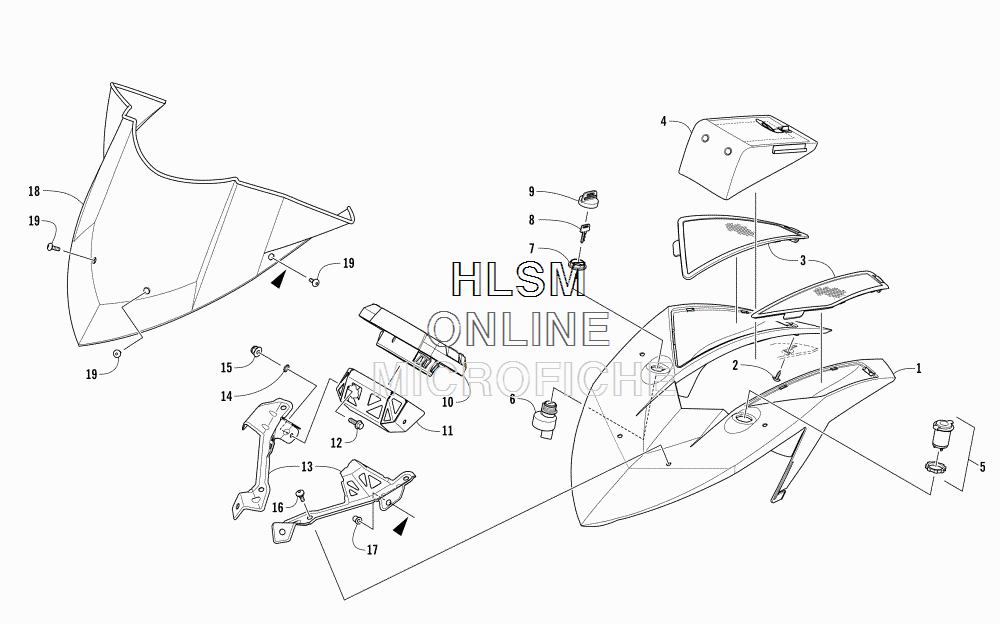

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 6000 LTD ES 137 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
16606-316 POD, INSTRUMENT - WHITEPOD, INSTRUMENT - WHITE
-
22623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30608-736 VENT, INTAKE - RIGHTVENT, INTAKE - RIGHT
-
30608-737 VENT, INTAKE - LEFTVENT, INTAKE - LEFT
-
46606-566 BAG, GOGGLEBAG, GOGGLE
-
50641-897 OUTLET, ACCESSORY (12V)OUTLET, ACCESSORY (12V)
-
60609-910 SWITCH, IGNITION (INC. 7-9)SWITCH, IGNITION (INC. 7-9)
-
70430-050 ...NUT, RETAINING...NUT, RETAINING
-
80430-042 ...KEY, IGNITION - Y SERIES (LEFT BANK)...KEY, IGNITION - Y SERIES (LEFT BANK)
-
80430-043 ...KEY, IGNITION - Z SERIES (RIGHT BANK)...KEY, IGNITION - Z SERIES (RIGHT BANK)
-
90430-054 ...COVER, KEY...COVER, KEY
-
100720-037 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
115706-959 BRACKET, SPEEDOMETER GAUGE - CENTER - WHITEBRACKET, SPEEDOMETER GAUGE - CENTER - WHITE
-
128410-616 SCREW, CAPSCREW, CAP
-
135706-652 BRACKET, SPEEDOMETER GAUGE - RIGHT - WHITEBRACKET, SPEEDOMETER GAUGE - RIGHT - WHITE
-
135706-653 BRACKET, SPEEDOMETER GAUGE - LEFT - WHITEBRACKET, SPEEDOMETER GAUGE - LEFT - WHITE
-
148053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
158427-602 NUT, LOCKNUT, LOCK
-
160423-355 SCREW, SHOULDERSCREW, SHOULDER
-
171623-764 NUT, EXPANSIONNUT, EXPANSION
-
187606-323 WINDSHIELD - MID - ORANGEWINDSHIELD - MID - ORANGE
-
198477-516 SCREW, MACHINESCREW, MACHINE
