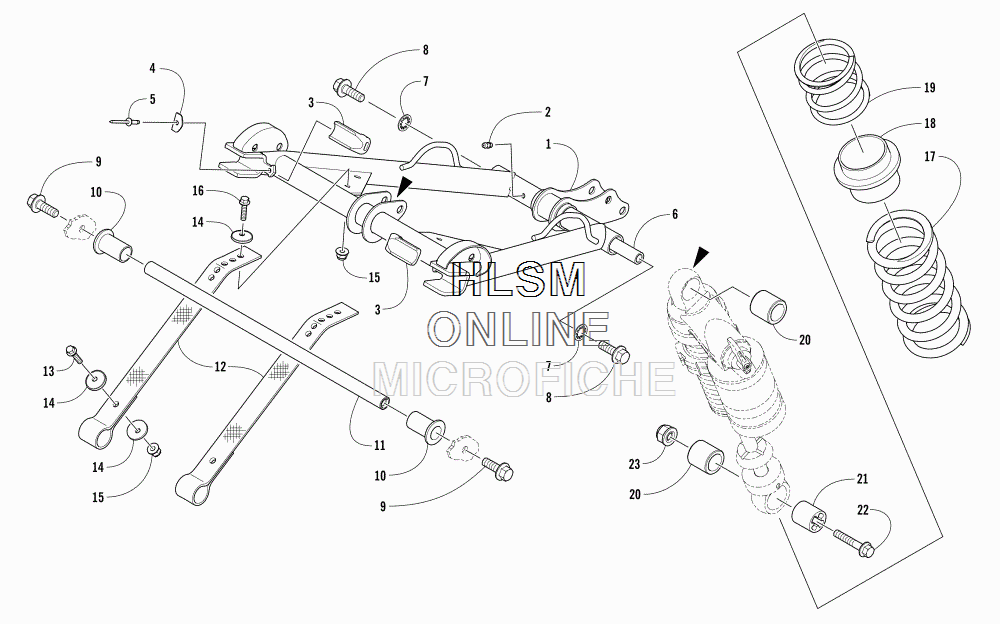

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat ZR 6000 RS LTD ES 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13704-001 ARM, FRONT SUSPENSION - BLACK (INC. 2-5)ARM, FRONT SUSPENSION - BLACK (INC. 2-5)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
43604-968 ...PLATE, RETAINING...PLATE, RETAINING
-
58060-708 ...RIVET...RIVET
-
64604-086 AXLE, INNERAXLE, INNER
-
71623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
88413-031 SCREW, CAPSCREW, CAP
-
98408-041 SCREW, CAPSCREW, CAP
-
103604-233 BUSHING, FLAREDBUSHING, FLARED
-
113604-663 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
123604-823 STRAP, LIMITERSTRAP, LIMITER
-
138408-630 SCREW, CAPSCREW, CAP
-
148450-109 WASHERWASHER
-
158427-602 NUT, LOCKNUT, LOCK
-
168408-620 SCREW, CAPSCREW, CAP
-
173704-039 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
184604-238 RING, COMMUNICATORRING, COMMUNICATOR
-
193704-035 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
203604-906 BEARINGBEARING
-
214604-228 AXLE, SHOCKAXLE, SHOCK
-
228408-045 SCREW, CAPSCREW, CAP
-
232623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
