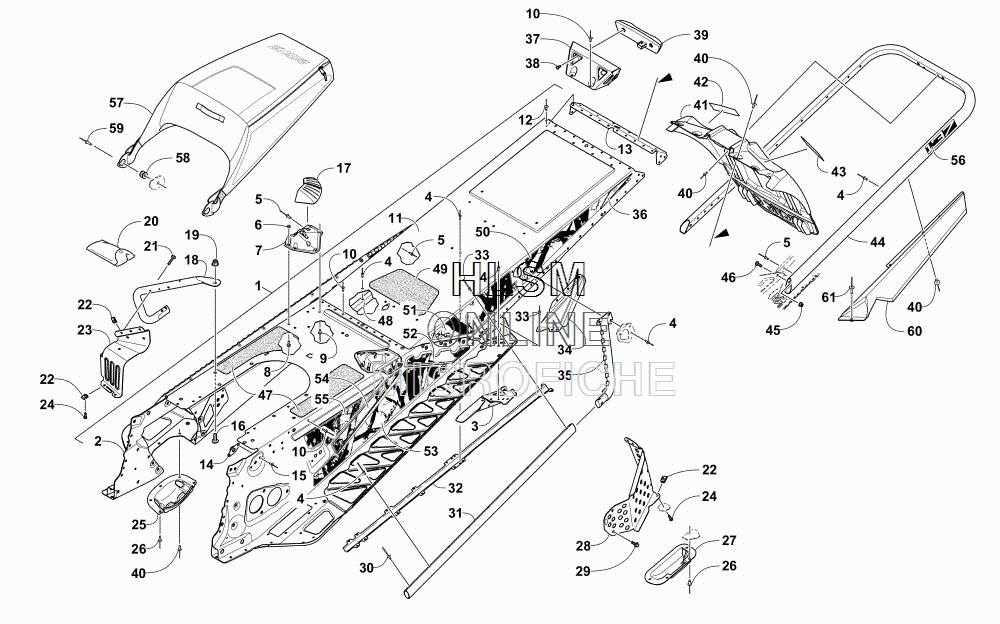

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 7000 LTD 137 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
-2707-081 COMPLETE CHASSIS ASSEMBLY - WHITECOMPLETE CHASSIS ASSEMBLY - WHITE
-
12707-393 TUNNEL ASSEMBLY - WHITE (INC. 2-13 AND 34)TUNNEL ASSEMBLY - WHITE (INC. 2-13 AND 34)
-
22707-391 ...TUNNEL, FRONT - ASSEMBLY - WHITE (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - WHITE (INC. 3-4)
-
32707-246 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE
-
32707-247 ......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE
-
48060-686 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-904 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE
-
71707-905 ...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
112707-377 ...TUNNEL, REAR - WHITE...TUNNEL, REAR - WHITE
-
128060-484 ...RIVET...RIVET
-
131707-834 ...END CAP, TUNNEL - WHITE...END CAP, TUNNEL - WHITE
-
140608-631 PLATE, RETAININGPLATE, RETAINING
-
158060-688 RIVETRIVET
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
176606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
176606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
181707-800 SUPPORT, FOOTREST - RIGHT - WHITESUPPORT, FOOTREST - RIGHT - WHITE
-
181707-801 SUPPORT, FOOTREST - LEFT - WHITESUPPORT, FOOTREST - LEFT - WHITE
-
198427-802 NUTNUT
-
200744-088 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
231702-802 FOOTREST - RIGHT - WHITEFOOTREST - RIGHT - WHITE
-
231707-803 FOOTREST - LEFT - WHITEFOOTREST - LEFT - WHITE
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
251607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-708 RIVETRIVET
-
270607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
282707-084 SHIELD, BRAKE DISC - WHITESHIELD, BRAKE DISC - WHITE
-
298408-613 SCREW, CAPSCREW, CAP
-
301623-130 RIVETRIVET
-
311707-899 ROLL, TUNNEL - WHITEROLL, TUNNEL - WHITE
-
320630-316 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
331623-241 RIVETRIVET
-
341707-906 GUSSET, RUNNING BOARD - RIGHT - WHITEGUSSET, RUNNING BOARD - RIGHT - WHITE
-
341707-907 GUSSET, RUNNING BOARD - LEFT - WHITEGUSSET, RUNNING BOARD - LEFT - WHITE
-
351707-908 GUSSET, TUNNEL ROLL - RIGHT - WHITEGUSSET, TUNNEL ROLL - RIGHT - WHITE
-
351707-909 GUSSET, TUNNEL ROLL - LEFT - WHITEGUSSET, TUNNEL ROLL - LEFT - WHITE
-
360621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
370730-228 BRACKET, MOUNTING - TAILLIGHT - WHITEBRACKET, MOUNTING - TAILLIGHT - WHITE
-
388470-510 SCREW, MACHINESCREW, MACHINE
-
390609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
408061-706 RIVETRIVET
-
416606-394 SNOWFLAPSNOWFLAP
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
442707-587 BUMPER, REAR - ORANGEBUMPER, REAR - ORANGE
-
458427-602 NUT, LOCKNUT, LOCK
-
468476-620 SCREW, MACHINESCREW, MACHINE
-
476606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
476606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
481607-455 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
496606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
503621-548 DECAL, TUNNEL - RIGHT - "137"DECAL, TUNNEL - RIGHT - "137"
-
503621-549 DECAL, TUNNEL - LEFT - "137"DECAL, TUNNEL - LEFT - "137"
-
513621-386 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
513621-387 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
523621-388 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
523621-389 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
533621-390 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
533621-391 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
543621-392 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
543621-393 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
553621-394 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
553621-395 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
563621-403 DECAL, REAR BUMPER - "137"DECAL, REAR BUMPER - "137"
-
577606-069 SADDLEBAGSADDLEBAG
-
581623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
598060-630 RIVETRIVET
-
606606-870 FLARE, TUNNEL - RIGHTFLARE, TUNNEL - RIGHT
-
606606-871 FLARE, TUNNEL - LEFTFLARE, TUNNEL - LEFT
-
618060-710 RIVETRIVET
