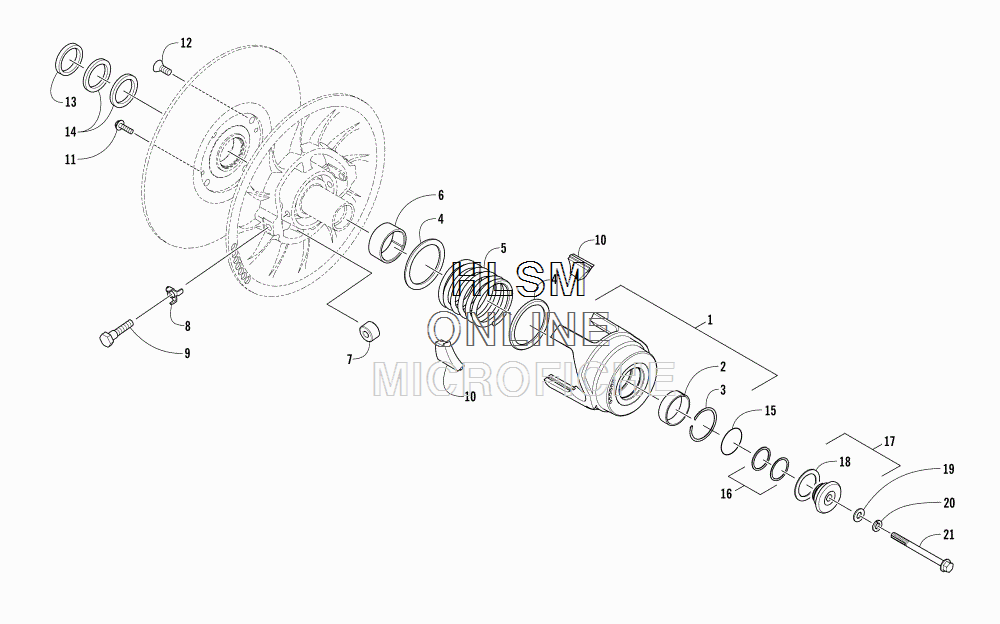

DRIVEN CLUTCH для Arctic Cat BEARCAT 2000 LT BLUE - 2018 года выпуска
-
№АртикулНазвание
-
h0726-360 CLUTCH, DRIVENCLUTCH, DRIVEN
-
10748-702 BRACKET, TORQUE 46°/40° (INC. 2-3)BRACKET, TORQUE 46°/40° (INC. 2-3)
-
20648-433 ...RING, SNAP...RING, SNAP
-
30648-009 ...BEARING, DRIVEN CLUTCH...BEARING, DRIVEN CLUTCH
-
40648-713 SEAT, SPRINGSEAT, SPRING
-
50648-774 SPRING, DRIVEN CLUTCH - ORANGESPRING, DRIVEN CLUTCH - ORANGE
-
60648-806 SPACERSPACER
-
70648-453 SEAT, SPRING - DRIVENSEAT, SPRING - DRIVEN
-
80648-097 PIN, ROLLER BEARINGPIN, ROLLER BEARING
-
90648-139 ROLLER, CAMROLLER, CAM
-
108070-224 PIN, SPRINGPIN, SPRING
-
110637-322 UPDATE KIT, TORQUE BRACKET RETAINER (INC. 12)UPDATE KIT, TORQUE BRACKET RETAINER (INC. 12)
-
121623-517 ...SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353...SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353
-
132623-031 WASHERWASHER
-
140648-442 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
140648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
150648-441 O-RINGO-RING
-
160648-715 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
160648-716 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
160648-714 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
171702-114 KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 18)KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 18)
-
180648-788 ...WASHER, THRUST...WASHER, THRUST
-
191623-415 WASHERWASHER
-
208051-272 WASHER, LOCKWASHER, LOCK
-
211623-572 SCREW, CAPSCREW, CAP
