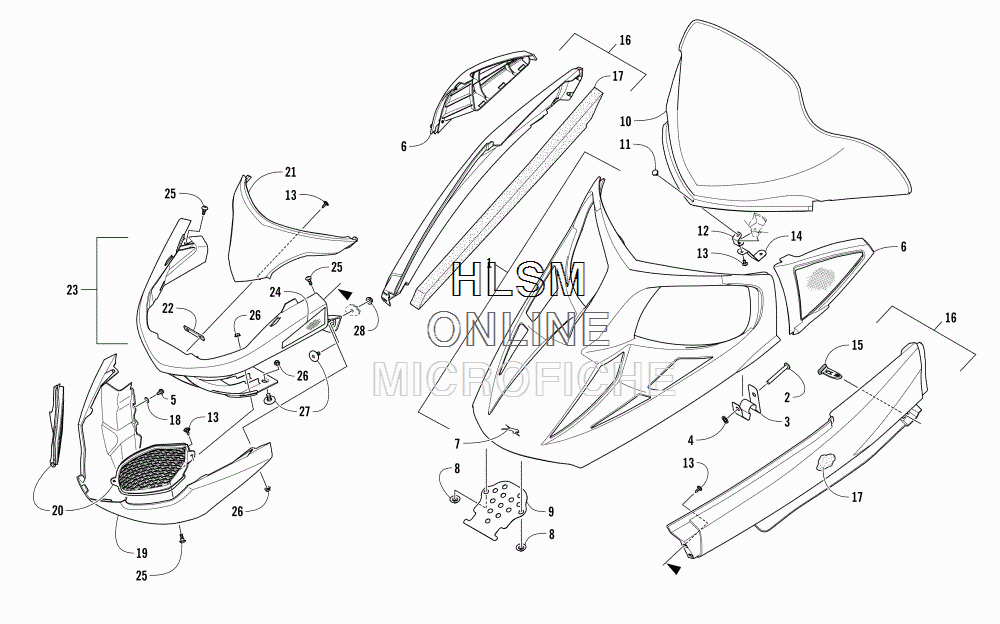

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 LT BLUE - 2018 года выпуска
-
№АртикулНазвание
-
15718-884 HOOD W/DECALS - WHITE (SEE DECALS PAGE FOR DECALS) (INC. 2-4)HOOD W/DECALS - WHITE (SEE DECALS PAGE FOR DECALS) (INC. 2-4)
-
17800-956 HOOD W/O DECALS - WHITE (INC. 2-4)HOOD W/O DECALS - WHITE (INC. 2-4)
-
21623-610 ...PIN, RETAINING...PIN, RETAINING
-
35706-084 ...CLIP, HOOD HOLD-DOWN - RIGHT...CLIP, HOOD HOLD-DOWN - RIGHT
-
35706-085 ...CLIP, HOOD HOLD-DOWN - LEFT...CLIP, HOOD HOLD-DOWN - LEFT
-
41623-409 ...RETAINER, PUSHNUT...RETAINER, PUSHNUT
-
50623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
65606-940 BEZEL, INTAKE - RIGHT - WHITEBEZEL, INTAKE - RIGHT - WHITE
-
65606-941 BEZEL, INTAKE - LEFT - WHITEBEZEL, INTAKE - LEFT - WHITE
-
74411-479 DECAL, AIRCATDECAL, AIRCAT
-
81623-469 NUT, STAMPEDNUT, STAMPED
-
95606-042 BRACKET, HINGEBRACKET, HINGE
-
105606-962 WINDSHIELD, HIGH - TINTWINDSHIELD, HIGH - TINT
-
111623-677 RIVET, PLASTICRIVET, PLASTIC
-
124606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
132623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
145606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
154606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
165718-050 SPAR, FRONT W/DECALS - RIGHT - BLUE (SEE DECALS PAGE FOR DECALS) (INC. 2-4)SPAR, FRONT W/DECALS - RIGHT - BLUE (SEE DECALS PAGE FOR DECALS) (INC. 2-4)
-
165718-051 SPAR, FRONT W/DECALS - LEFT - BLUE (SEE DECALS PAGE FOR DECALS) (INC. 2-4)SPAR, FRONT W/DECALS - LEFT - BLUE (SEE DECALS PAGE FOR DECALS) (INC. 2-4)
-
163718-834 SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 17)SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 17)
-
163718-835 SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 17)SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 17)
-
170617-656 ...FOAM, FRONT SPAR - RIGHT...FOAM, FRONT SPAR - RIGHT
-
170617-657 ...FOAM, FRONT SPAR - LEFT...FOAM, FRONT SPAR - LEFT
-
188053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
195606-462 FASCIA, BUMPER - LOWER - MOLD - BLACKFASCIA, BUMPER - LOWER - MOLD - BLACK
-
204606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
204606-605 VENT, BUMPER - LEFT - MOLD - BLACKVENT, BUMPER - LEFT - MOLD - BLACK
-
215606-991 FASCIA, BUMPER - UPPER - WHITEFASCIA, BUMPER - UPPER - WHITE
-
225606-953 SPACERSPACER
-
232718-925 BUMPER, FRONT - WHITE (INC. 24)BUMPER, FRONT - WHITE (INC. 24)
-
249611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
249611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
250423-355 SCREW, SHOULDERSCREW, SHOULDER
-
268427-602 NUT, LOCKNUT, LOCK
-
271623-775 SCREW, SHOULDERSCREW, SHOULDER
-
288424-602 NUTNUT
