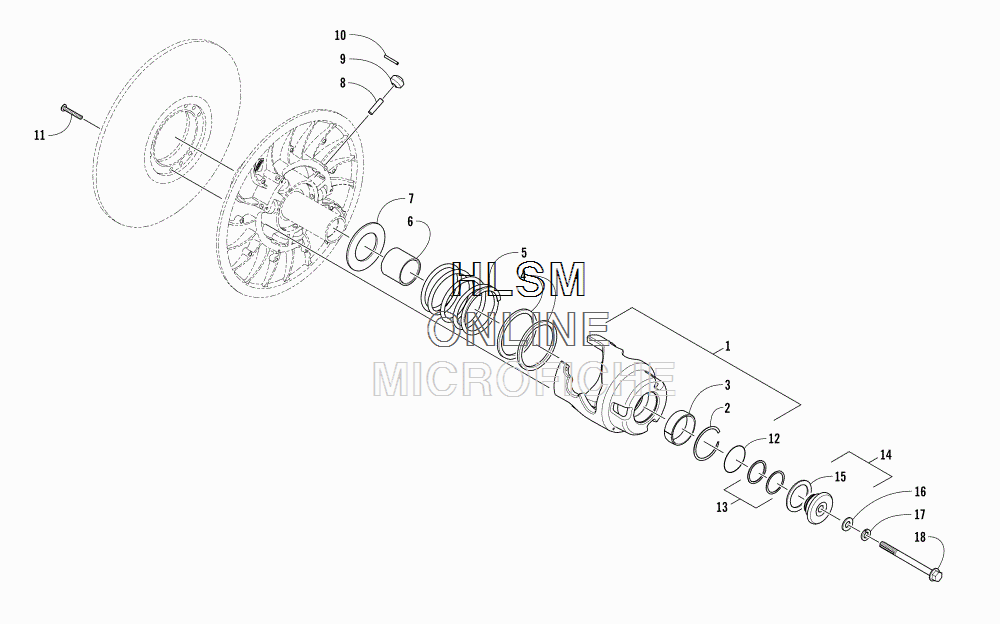

DRIVEN CLUTCH для Arctic Cat LYNX 2000 LT BLACK - 2018 года выпуска

№

Артикул

Название
-

0726-311 CLUTCH, DRIVEN

CLUTCH, DRIVEN

109 820 ₽
1

0748-714 CAM, DRIVEN 44°/40° - W/BEARING - ASSEMBLY (INC. 2-3)

CAM, DRIVEN 44°/40° - W/BEARING - ASSEMBLY (INC. 2-3)

37 230 ₽
2

0648-433 ...RING, SNAP

...RING, SNAP

460 ₽
3

0648-009 ...BEARING, DRIVEN CLUTCH

...BEARING, DRIVEN CLUTCH

2 910 ₽
4

0648-713 SEAT, SPRING

SEAT, SPRING

540 ₽
5

0648-774 SPRING, DRIVEN CLUTCH - ORANGE

SPRING, DRIVEN CLUTCH - ORANGE

4 150 ₽
6

0648-806 SPACER

SPACER

610 ₽
7

0648-453 SEAT, SPRING - DRIVEN

SEAT, SPRING - DRIVEN

520 ₽
8

0648-097 PIN, ROLLER BEARING

PIN, ROLLER BEARING

440 ₽
9

0648-139 ROLLER, CAM

ROLLER, CAM

1 870 ₽
10

8070-224 PIN, SPRING

PIN, SPRING

60 ₽
11

1623-517 SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353

SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353

150 ₽
12

0648-441 O-RING

O-RING

90 ₽
13

0648-715 WASHER, SHIM (.030 IN.)

WASHER, SHIM (.030 IN.)

190 ₽
13

0648-716 WASHER, SHIM (.060 IN.)

WASHER, SHIM (.060 IN.)

520 ₽
13

0648-714 WASHER, SHIM (.090 IN.)

WASHER, SHIM (.090 IN.)

310 ₽
14

1702-114 KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 15)

KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 15)

4 780 ₽
15

0648-788 ...WASHER, THRUST

...WASHER, THRUST

290 ₽
16

8450-127 WASHER

WASHER

150 ₽
17

8051-242 WASHER, LOCK

WASHER, LOCK

250 ₽
18

8408-801 SCREW, CAP

SCREW, CAP

3 110 ₽
