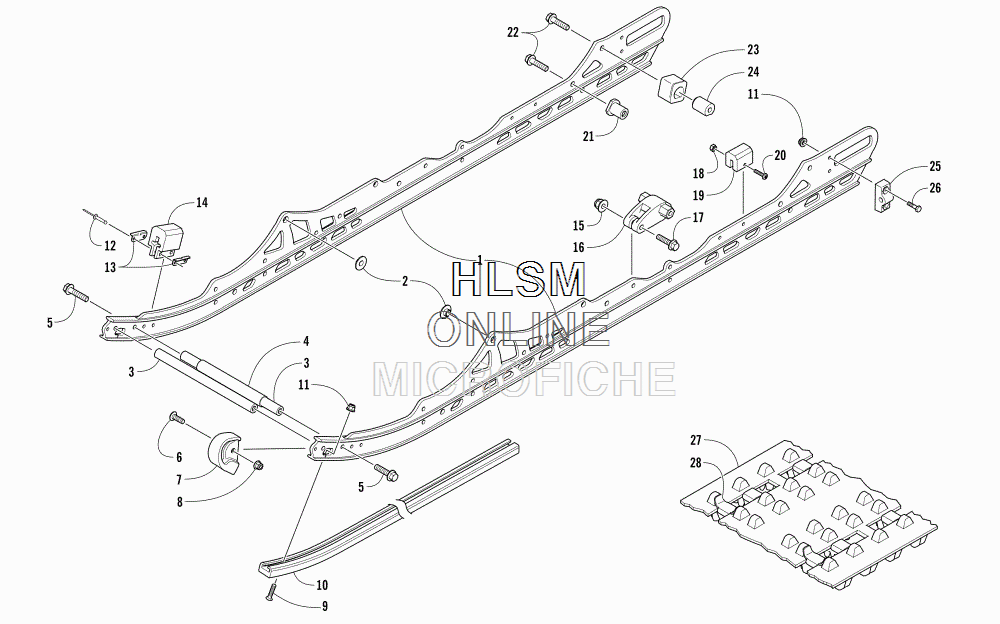

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat LYNX 2000 LT BLACK - 2018 года выпуска
-
№АртикулНазвание
-
-2704-725 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-469 RAIL, FORMEDRAIL, FORMED
-
23604-266 INSERT, RAILINSERT, RAIL
-
33604-268 AXLEAXLE
-
42604-281 SPACERSPACER
-
58408-826 SCREW, CAPSCREW, CAP
-
68427-602 NUT, LOCKNUT, LOCK
-
74604-093 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88476-625 SCREW, CAPSCREW, CAP
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
102604-799 WEARSTRIP, SLIDE RAIL - 162" - BLACKWEARSTRIP, SLIDE RAIL - 162" - BLACK
-
118047-366 NUT, LOCKNUT, LOCK
-
128060-633 RIVET, BLIND - DHRIVET, BLIND - DH
-
130604-967 BRACKET, RETAININGBRACKET, RETAINING
-
140604-918 PAD, SHOCKPAD, SHOCK
-
158427-802 NUTNUT
-
163604-513 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
178408-850 SCREW, CAPSCREW, CAP
-
188427-502 NUT, LOCKNUT, LOCK
-
191604-429 PAD, SHOCKPAD, SHOCK
-
208470-540 SCREW, MACHINESCREW, MACHINE
-
213604-979 AXLEAXLE
-
228408-031 SCREW, CAPSCREW, CAP
-
232604-545 BLOCK, COUPLERBLOCK, COUPLER
-
243604-291 BUSHING, COUPLERBUSHING, COUPLER
-
250704-352 BLOCKBLOCK
-
268002-042 SCREW, CAPSCREW, CAP
-
272602-100 TRACK ASSEMBLY (INC. 28)TRACK ASSEMBLY (INC. 28)
-
282602-385 ...CLIP, GUIDE...CLIP, GUIDE
