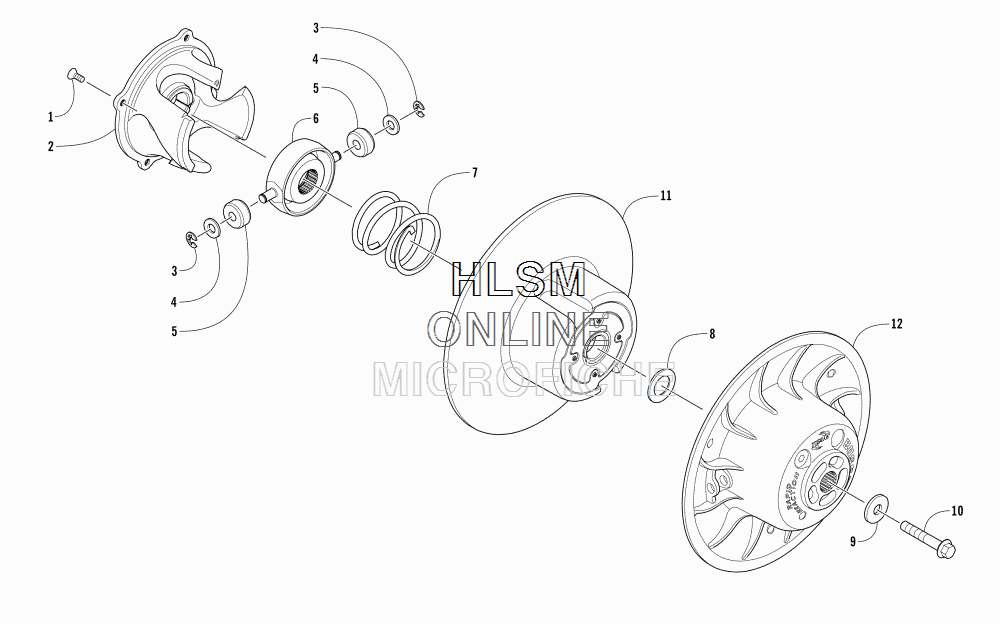

DRIVEN CLUTCH для Arctic Cat M 8000 SNO PRO ES 162 ORANGE - 2018 года выпуска
-
№АртикулНазвание
-
–0726-401 CLUTCH, DRIVEN - ASSEMBLY (INC. 1-7 AND 11-12)CLUTCH, DRIVEN - ASSEMBLY (INC. 1-7 AND 11-12)
-
10648-875 ...SCREW, MACHINE...SCREW, MACHINE
-
20648-948 ...CAM, DRIVEN...CAM, DRIVEN
-
30648-701 ...RING, RETAINING...RING, RETAINING
-
40648-700 ...WASHER, THRUST...WASHER, THRUST
-
50648-842 ...ROLLER...ROLLER
-
60648-841 ...SPIDER...SPIDER
-
70648-876 ...SPRING, DRIVEN CLUTCH...SPRING, DRIVEN CLUTCH
-
80648-850 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
80648-849 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
92623-120 WASHERWASHER
-
108409-060 SCREW, CAPSCREW, CAP
-
110748-776 SHEAVE, MOVEABLESHEAVE, MOVEABLE
-
120748-040 SHEAVE, STATIONARYSHEAVE, STATIONARY
