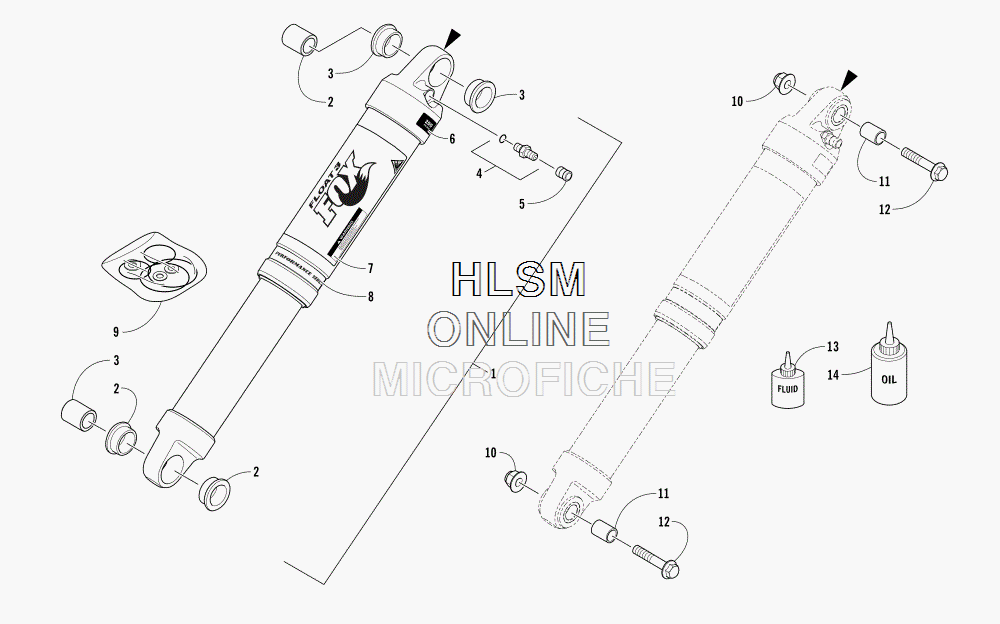

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M 8000 SNO PRO ES 162 ORANGE - 2018 года выпуска
-
№АртикулНазвание
-
13704-198 COMPLETE SHOCK ABSORBER (INC. 2-9)COMPLETE SHOCK ABSORBER (INC. 2-9)
-
21604-222 ...BUSHING...BUSHING
-
32604-223 ...SLEEVE...SLEEVE
-
42603-511 ...VALVE, AIR...VALVE, AIR
-
52603-327 ...CAP, AIR VALVE...CAP, AIR VALVE
-
63603-419 ...DECAL, PSI...DECAL, PSI
-
73603-369 ...DECAL, SHOCK...DECAL, SHOCK
-
83603-365 ...DECAL, "PERFORMANCE SERIES"...DECAL, "PERFORMANCE SERIES"
-
93603-293 ...KIT, SEAL/CAP REBUILD...KIT, SEAL/CAP REBUILD
-
108437-804 NUT, LOCKNUT, LOCK
-
113604-846 SLEEVESLEEVE
-
128413-845 SCREW, CAPSCREW, CAP
-
134639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
145639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
