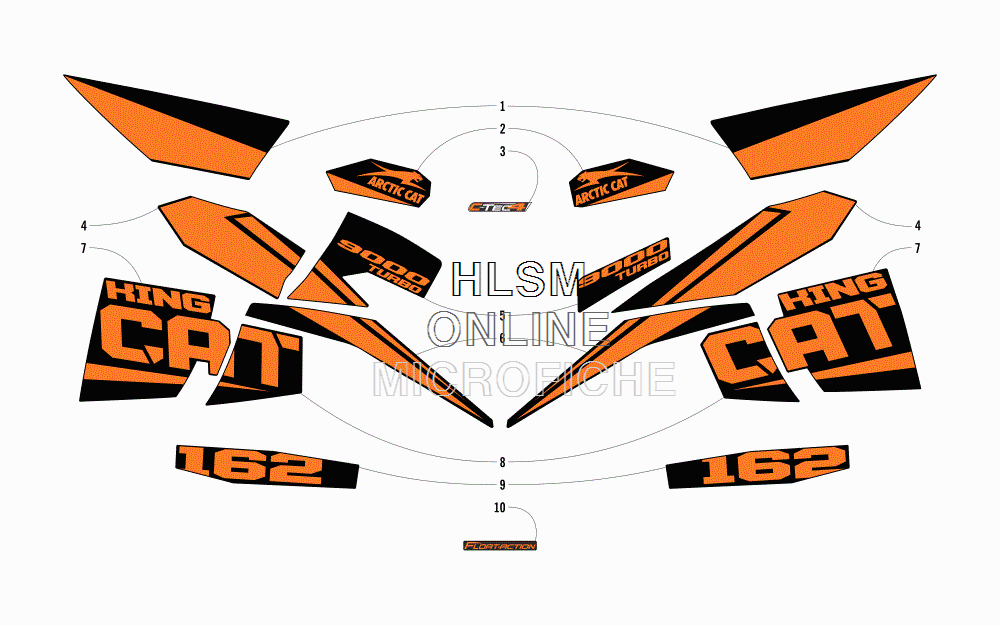

DECALS для Arctic Cat M 9000 KING CAT 162 BLACK EARLY BUILD - 2018 года выпуска
-
№АртикулНазвание
-
14621-108 DECAL, HOOD - REAR - RIGHTDECAL, HOOD - REAR - RIGHT
-
14621-109 DECAL, HOOD - REAR - LEFTDECAL, HOOD - REAR - LEFT
-
24621-110 DECAL, HOOD - FRONT - RIGHTDECAL, HOOD - FRONT - RIGHT
-
24621-111 DECAL, HOOD - FRONT - LEFTDECAL, HOOD - FRONT - LEFT
-
34621-296 DECAL, "CTEC-4"DECAL, "CTEC-4"
-
43621-986 DECAL, SIDE PANEL - UPPER REAR - RIGHTDECAL, SIDE PANEL - UPPER REAR - RIGHT
-
43621-987 DECAL, SIDE PANEL - UPPER REAR - LEFTDECAL, SIDE PANEL - UPPER REAR - LEFT
-
54621-530 DECAL, SIDE PANEL - LOWER VENT - RIGHTDECAL, SIDE PANEL - LOWER VENT - RIGHT
-
54621-289 DECAL, SIDE PANEL - UPPER FRONT - LEFTDECAL, SIDE PANEL - UPPER FRONT - LEFT
-
64621-292 DECAL, SIDE PANEL - MID FRONT - RIGHTDECAL, SIDE PANEL - MID FRONT - RIGHT
-
64621-293 DECAL, SIDE PANEL - MID FRONT - LEFTDECAL, SIDE PANEL - MID FRONT - LEFT
-
74621-022 DECAL, SIDE PANEL - LOWER REAR - RIGHTDECAL, SIDE PANEL - LOWER REAR - RIGHT
-
74621-023 DECAL, SIDE PANEL - LOWER REAR - LEFTDECAL, SIDE PANEL - LOWER REAR - LEFT
-
84621-128 DECAL, SIDE PANEL - LOWER FRONT - RIGHTDECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
84621-129 DECAL, SIDE PANEL - LOWER FRONT - LEFTDECAL, SIDE PANEL - LOWER FRONT - LEFT
-
94621-102 DECAL, TUNNEL - "162" - RIGHTDECAL, TUNNEL - "162" - RIGHT
-
94621-103 DECAL, TUNNEL - "162" - LEFTDECAL, TUNNEL - "162" - LEFT
-
104621-117 DECAL, "FLOAT ACTION"DECAL, "FLOAT ACTION"
Все узлы модели:
- A-ARM ASSEMBLY
- AIR INTAKE ASSEMBLY
- BATTERY AND TRAY ASSEMBLY
- BELT GUARD ASSEMBLY
- BUMPERS AND STORAGE
- CAMSHAFT- CHAIN- AND VALVE ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- • DECALS
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO AND COVER ASSEMBLY
- OIL PAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- SEAT ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND SNOWFLAP ASSEMBLY
- TURBOCHARGER ASSEMBLY
- WATER PUMP ASSEMBLY
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
