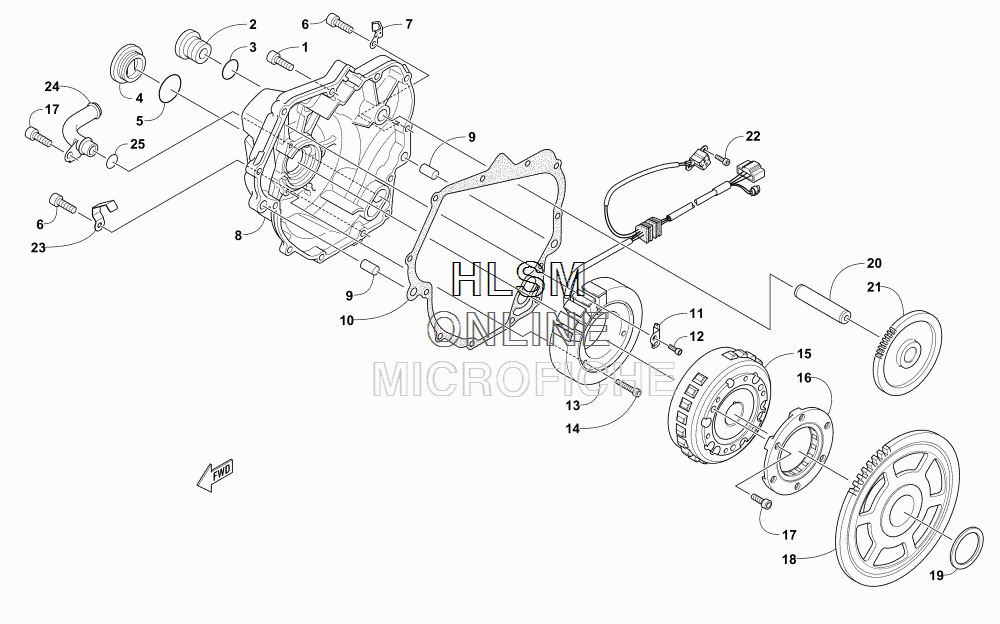

MAGNETO AND COVER ASSEMBLY для Arctic Cat M 9000 KING CAT 162 BLACK EARLY BUILD - 2018 года выпуска
-
№АртикулНазвание
-
13020-345 SCREW, CAPSCREW, CAP
-
23020-346 PLUGPLUG
-
33020-347 O-RINGO-RING
-
43020-616 PLUGPLUG
-
53020-617 O-RINGO-RING
-
63020-314 SCREW, CAPSCREW, CAP
-
73020-350 BRACKET, RETAININGBRACKET, RETAINING
-
83020-613 COVER, MAGNETOCOVER, MAGNETO
-
93020-293 PIN, DOWELPIN, DOWEL
-
103020-436 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
113020-620 BRACKET, RETAININGBRACKET, RETAINING
-
123020-354 SCREW, CAPSCREW, CAP
-
133020-396 STATORSTATOR
-
143020-356 SCREW, CAPSCREW, CAP
-
153020-619 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
163020-457 CLUTCH, STARTER - ONE-WAYCLUTCH, STARTER - ONE-WAY
-
173020-359 SCREW, CAPSCREW, CAP
-
183020-360 GEAR, STARTER CLUTCHGEAR, STARTER CLUTCH
-
193020-361 WASHERWASHER
-
203020-362 SHAFT, IDLER GEARSHAFT, IDLER GEAR
-
213020-456 GEAR, IDLER - STARTERGEAR, IDLER - STARTER
-
223020-621 BOLTBOLT
-
233020-618 CLAMPCLAMP
-
243020-614 PIPE, OILPIPE, OIL
-
253020-615 O-RINGO-RING
