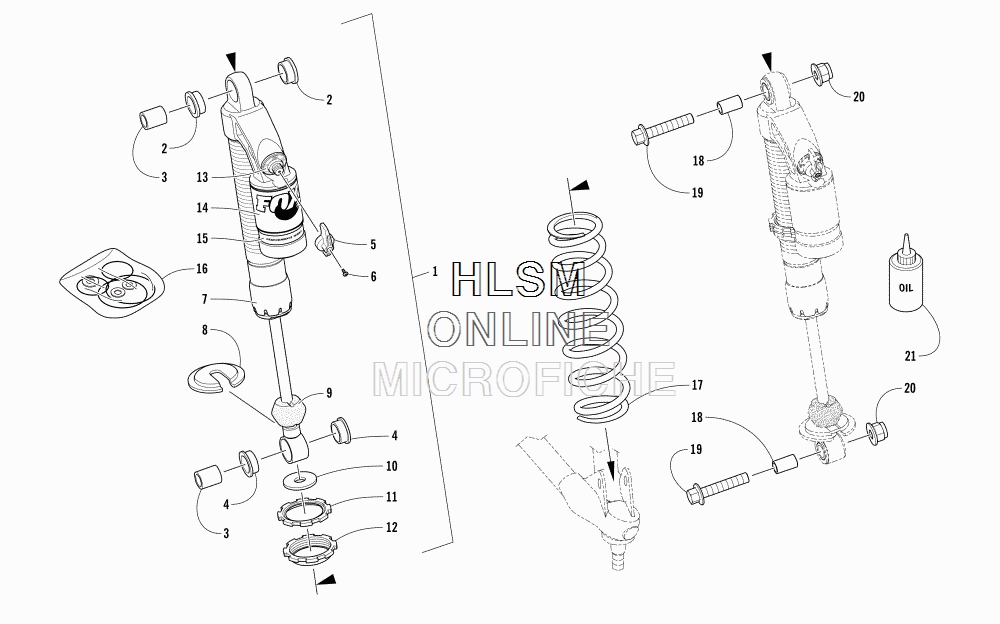

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat XF 9000 CROSS COUNTRY LTD 137 GREEN - 2018 года выпуска

№

Артикул

Название
1

3703-476 COMPLETE SHOCK ABSORBER (INC. 2-16)

COMPLETE SHOCK ABSORBER (INC. 2-16)

92 550 ₽
2

1604-222 ...BUSHING

...BUSHING

2 700 ₽
3

2604-223 ...SLEEVE

...SLEEVE

4 990 ₽
4

3603-283 ...BUSHING

...BUSHING

3 950 ₽
5

3603-520 ...KNOB, DAMPING ADJUSTER - REBOUND

...KNOB, DAMPING ADJUSTER - REBOUND

5 610 ₽
6

3603-377 ...SCREW, MACHINE

...SCREW, MACHINE

1 870 ₽
7

4604-016 ...GUIDE, SPRING

...GUIDE, SPRING

5 610 ₽
8

0403-490 ...RETAINER, SPRING

...RETAINER, SPRING

5 400 ₽
9

3603-024 ...BUMPER, SHAFT

...BUMPER, SHAFT

2 490 ₽
10

3603-028 ...WASHER

...WASHER

1 870 ₽
11

3603-026 ...PRELOAD RING

...PRELOAD RING

2 490 ₽
12

3603-027 ...PRELOAD RING, BACK-UP

...PRELOAD RING, BACK-UP

2 700 ₽
13

3603-523 ...DECAL, BASE VALUE

...DECAL, BASE VALUE

2 700 ₽
14

3603-521 ...DECAL, RESERVOIR

...DECAL, RESERVOIR

5 820 ₽
15

3603-365 ...DECAL, "PERFORMANCE SERIES"

...DECAL, "PERFORMANCE SERIES"

2 700 ₽
16

3603-522 ...KIT, SEAL/CAP REBUILD

...KIT, SEAL/CAP REBUILD

24 950 ₽
17

3703-496 SPRING, COMPRESSION - WHITE

SPRING, COMPRESSION - WHITE

5 820 ₽
18

3604-109 SLEEVE

SLEEVE

670 ₽
19

8408-050 SCREW, CAP

SCREW, CAP

420 ₽
20

8427-002 NUT, LOCK

NUT, LOCK

150 ₽
21

5639-530 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
