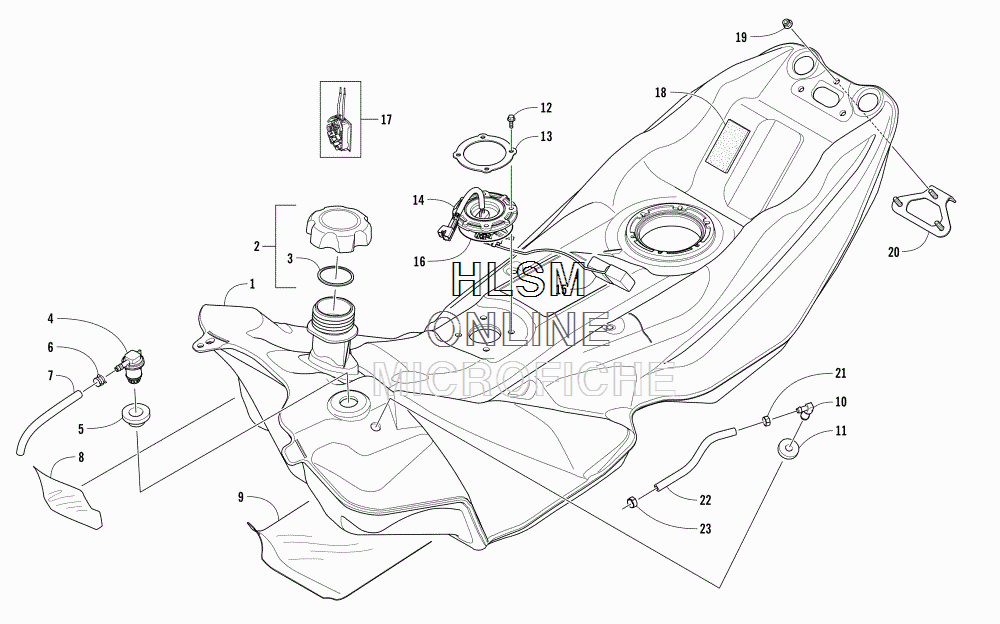

GAS TANK ASSEMBLY для Arctic Cat XF 9000 CROSS COUNTRY LTD 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
11770-090 TANK, GAS - ASSEMBLY (INC. 4-5 AND 10-11)TANK, GAS - ASSEMBLY (INC. 4-5 AND 10-11)
-
22670-048 CAP, GAS TANK - ASSEMBLY (INC. 3)CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ...SEAL, TANK CAP...SEAL, TANK CAP
-
41670-787 VALVE, CHECKVALVE, CHECK
-
51670-822 GROMMETGROMMET
-
61623-233 CLAMP, HOSECLAMP, HOSE
-
76101-009 HOSE - 50 FTHOSE - 50 FT
-
83612-316 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
93612-315 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
101670-324 FITTING, ELBOWFITTING, ELBOW
-
111670-325 GROMMETGROMMET
-
128408-517 SCREW, CAPSCREW, CAP
-
132670-431 PLATE, RETAININGPLATE, RETAINING
-
142670-386 SENSOR, FUEL LEVEL (INC. 15)SENSOR, FUEL LEVEL (INC. 15)
-
152670-235 ...FLOAT...FLOAT
-
162623-035 O-RINGO-RING
-
171770-170 FUEL LEVEL SENSOR KITFUEL LEVEL SENSOR KIT
-
180645-760 PAD, BATTERYPAD, BATTERY
-
198427-602 NUT, LOCKNUT, LOCK
-
205706-771 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
210610-415 CLAMP, HOSECLAMP, HOSE
-
220410-143 HOSE - 25 FTHOSE - 25 FT
-
230610-419 CLAMP, HOSECLAMP, HOSE
