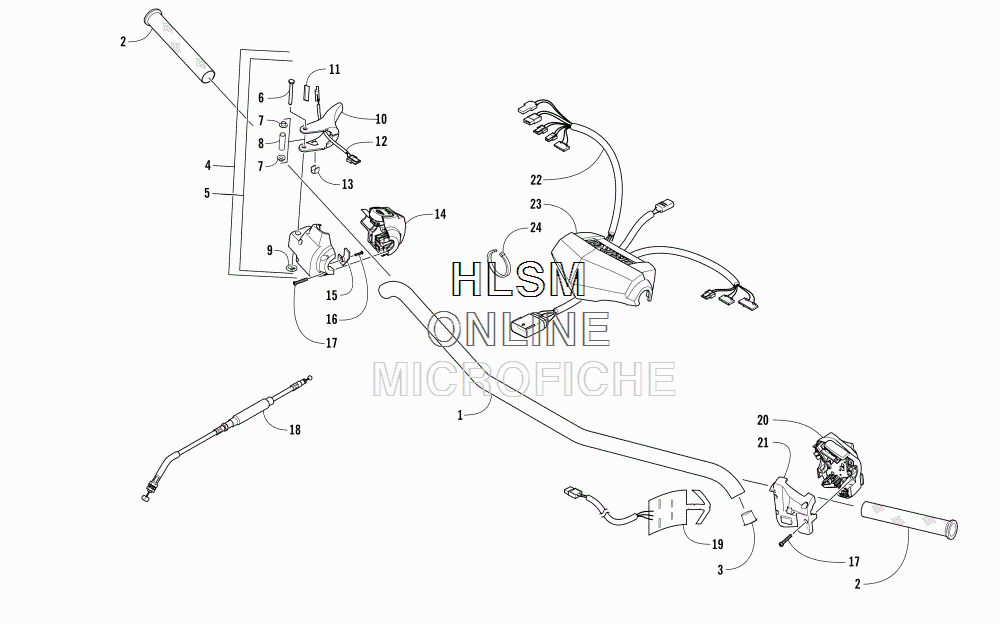

HANDLEBAR AND CONTROLS для Arctic Cat ZR 7000 SNO PRO 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
11705-532 HANDLEBAR - BLACKHANDLEBAR - BLACK
-
21605-166 GRIP, HANDLEBARGRIP, HANDLEBAR
-
32623-200 PLUGPLUG
-
40609-882 CONTROL, THROTTLE - REAR (INC. 5-10)CONTROL, THROTTLE - REAR (INC. 5-10)
-
50609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
-
90123-766 ......NUT, PUSH......NUT, PUSH
-
100609-795 ...LEVER, THROTTLE...LEVER, THROTTLE
-
110617-248 PAD, INSULATORPAD, INSULATOR
-
120609-827 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
130609-595 CLIP, RETAININGCLIP, RETAINING
-
140609-884 CONTROL, THROTTLE - FRONTCONTROL, THROTTLE - FRONT
-
150609-792 COVER, CONNECTORCOVER, CONNECTOR
-
160609-793 SCREW, MACHINESCREW, MACHINE
-
170609-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180687-235 CABLE, THROTTLECABLE, THROTTLE
-
190609-948 ELEMENT, HANDWARMER - RIGHTELEMENT, HANDWARMER - RIGHT
-
190609-949 ELEMENT, HANDWARMER - LEFTELEMENT, HANDWARMER - LEFT
-
200609-929 CONTROL, DIMMER - FRONTCONTROL, DIMMER - FRONT
-
210609-883 CONTROL, DIMMER - REARCONTROL, DIMMER - REAR
-
221686-815 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
236606-129 PAD, HANDLEBARPAD, HANDLEBAR
-
240123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
240123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
