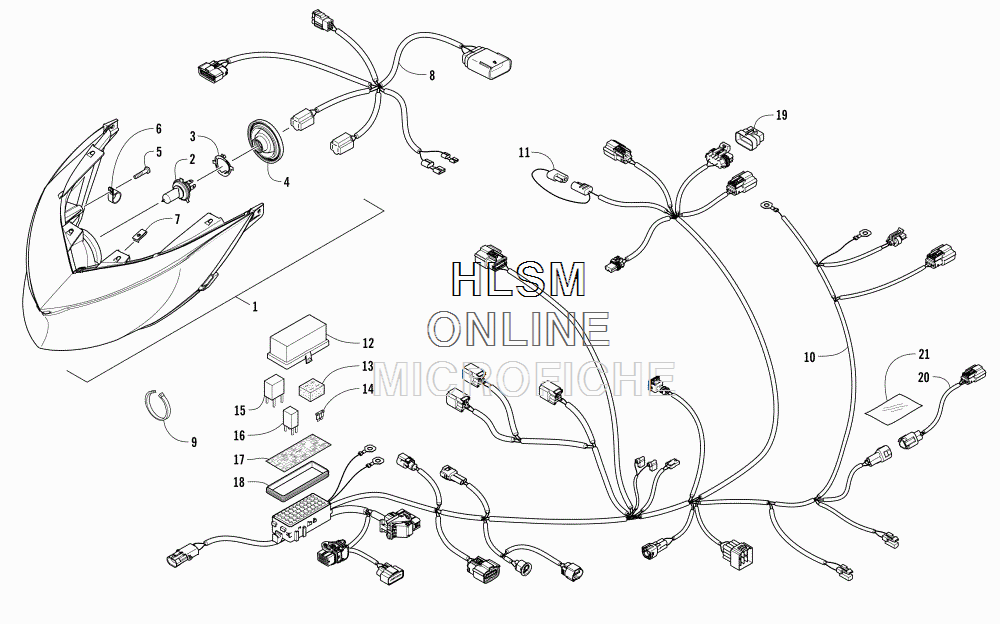

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat ZR 7000 SNO PRO 137 GREEN - 2018 года выпуска
-
№АртикулНазвание
-
10609-967 HEADLIGHT ASSEMBLY (INC. 2-4)HEADLIGHT ASSEMBLY (INC. 2-4)
-
20609-956 ...BULB...BULB
-
30409-097 ...RETAINER, SPRING...RETAINER, SPRING
-
40609-919 ...BOOT...BOOT
-
51623-915 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-675 CLAMPCLAMP
-
70423-031 NUT, SPEEDNUT, SPEED
-
81686-704 HARNESS, HOODHARNESS, HOOD
-
90123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
90123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
101686-780 HARNESS, MAIN (INC. 11-19)HARNESS, MAIN (INC. 11-19)
-
110486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
120430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
130430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
140430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
140430-098 ...FUSE - 20 AMP...FUSE - 20 AMP
-
140430-099 ...FUSE, MINI - 25 AMP...FUSE, MINI - 25 AMP
-
140430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
150430-033 ...RELAY (5-PIN) 30 AMP...RELAY (5-PIN) 30 AMP
-
160430-045 ...RELAY (4-PIN) 20 AMP...RELAY (4-PIN) 20 AMP
-
171621-228 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
180430-086 ...SEAL...SEAL
-
190430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
201686-703 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
-
210619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
