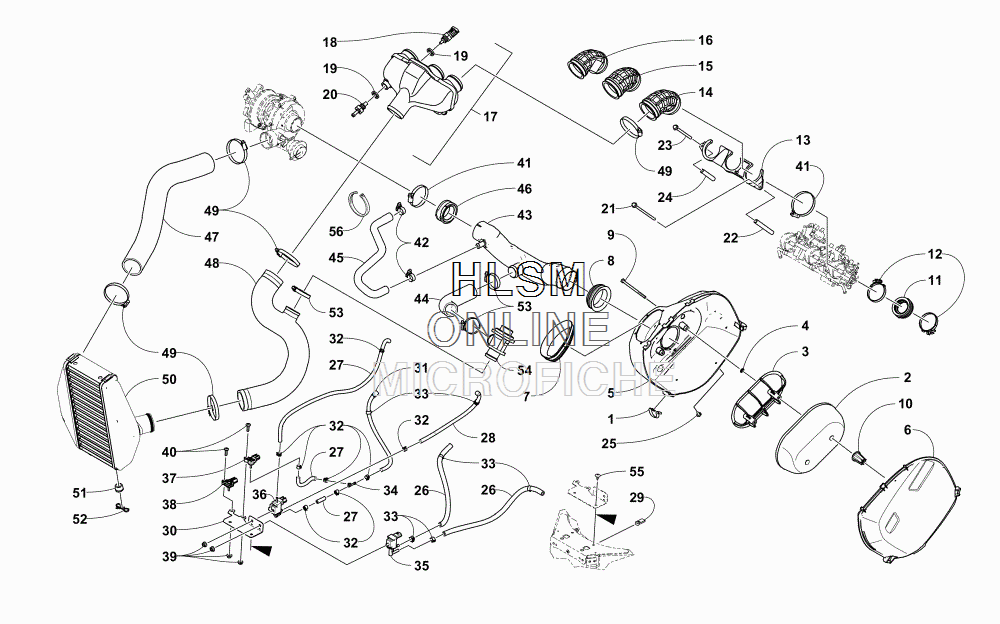

AIR INTAKE ASSEMBLY для Arctic Cat ZR 9000 SNO PRO 129 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
10423-455 CLIP, SPRINGCLIP, SPRING
-
22670-625 FILTER, AIRFILTER, AIR
-
30470-731 CAGE, AIR FILTERCAGE, AIR FILTER
-
41623-409 RETAINER, PUSHNUTRETAINER, PUSHNUT
-
52670-501 SILENCER, AIRSILENCER, AIR
-
62670-513 COVER, AIR SILENCERCOVER, AIR SILENCER
-
72670-552 BOOT, UPPER PLENUMBOOT, UPPER PLENUM
-
82670-567 SEAL, AIR SILENCERSEAL, AIR SILENCER
-
98402-600 SCREW, CAPSCREW, CAP
-
102623-175 KNOBKNOB
-
113020-189 BOOT, INTAKEBOOT, INTAKE
-
123020-188 CLAMPCLAMP
-
133020-375 BRACKETBRACKET
-
143020-376 BOOT, INTAKE (PTO)BOOT, INTAKE (PTO)
-
153020-377 BOOT, INTAKE (CENTER)BOOT, INTAKE (CENTER)
-
163020-378 BOOT, INTAKE (MAG)BOOT, INTAKE (MAG)
-
173020-412 MANIFOLD, INTAKE - ASSEMBLY (INC. 18-20)MANIFOLD, INTAKE - ASSEMBLY (INC. 18-20)
-
183020-380 ...SENSOR...SENSOR
-
193020-381 ...WASHER...WASHER
-
203020-586 ...FITTING...FITTING
-
212623-127 SCREW, CAPSCREW, CAP
-
220608-752 SPACER, INTAKE - PTOSPACER, INTAKE - PTO
-
232623-128 SCREW, CAPSCREW, CAP
-
240608-753 SPACER, INTAKE - MAGSPACER, INTAKE - MAG
-
252623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
260410-143 HOSE - 25 FTHOSE - 25 FT
-
270610-538 HOSE - 25 FTHOSE - 25 FT
-
280610-131 HOSE, ABV CONTROLHOSE, ABV CONTROL
-
291623-030 CLIP, U-NUTCLIP, U-NUT
-
300645-806 BRACKET, CONTROL - SOLENOIDBRACKET, CONTROL - SOLENOID
-
311610-012 HOSE, BOOST PRESSUREHOSE, BOOST PRESSURE
-
321623-042 CLAMP, 10MMCLAMP, 10MM
-
331623-966 CLAMP, HOSECLAMP, HOSE
-
342623-137 FITTINGFITTING
-
353020-394 VALVE, SOLENOID - WASTE GATE CONTROLVALVE, SOLENOID - WASTE GATE CONTROL
-
363020-395 VALVE, SOLENOID - BOOST CONTROLVALVE, SOLENOID - BOOST CONTROL
-
373020-398 SENSOR, PRESSURESENSOR, PRESSURE
-
383020-399 SENSOR, PRESSURE - MAPSENSOR, PRESSURE - MAP
-
398424-602 NUTNUT
-
408468-620 SCREW, MACHINESCREW, MACHINE
-
410423-066 CLAMPCLAMP
-
422623-062 CLAMP, HOSECLAMP, HOSE
-
432670-502 DUCT, INTAKEDUCT, INTAKE
-
442670-549 HOSE, AIR BYPASS VALVE OUTLETHOSE, AIR BYPASS VALVE OUTLET
-
452670-540 HOSE, CUT OFF VALVE/INTAKE DUCTHOSE, CUT OFF VALVE/INTAKE DUCT
-
462670-568 SEAL, TURBO INLETSEAL, TURBO INLET
-
472670-504 HOSE, COMPRESSOR - OUTHOSE, COMPRESSOR - OUT
-
482670-548 HOSE, INTERCOOLER - OUTHOSE, INTERCOOLER - OUT
-
490423-019 CLAMPCLAMP
-
502670-510 INTERCOOLERINTERCOOLER
-
510423-533 GROMMETGROMMET
-
521623-546 CLIP, RETAININGCLIP, RETAINING
-
532623-210 CLAMP, HOSECLAMP, HOSE
-
543020-382 VALVE, AIR BYPASS - ASSEMBLYVALVE, AIR BYPASS - ASSEMBLY
-
552623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
560123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
560123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
