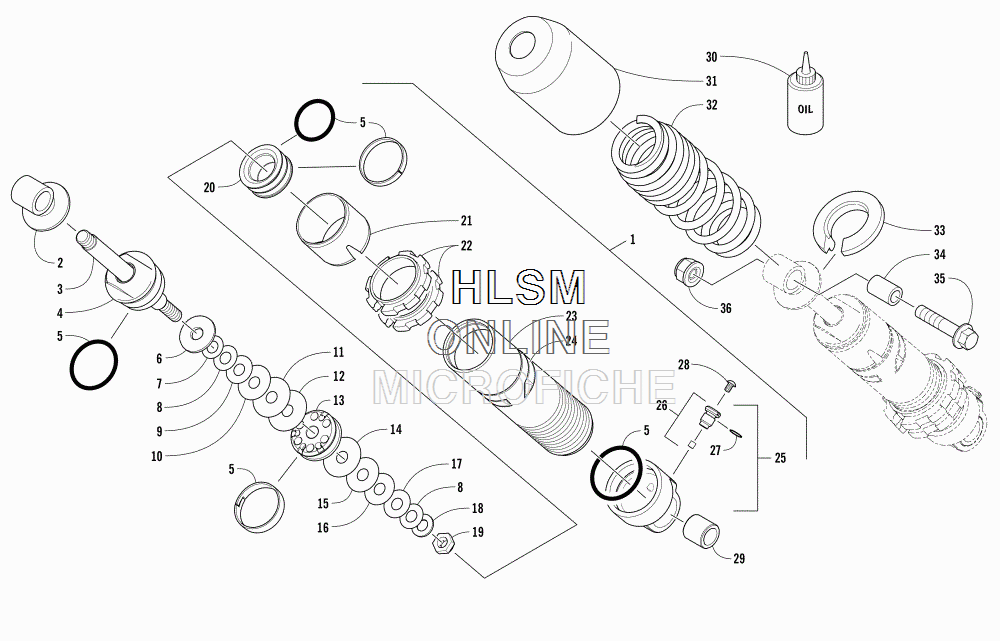

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 9000 SNO PRO 129 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
12704-705 SHOCK ABSORBERSHOCK ABSORBER
-
23604-797 EYELET, SHOCKEYELET, SHOCK
-
33604-831 ROD, SHOCKROD, SHOCK
-
44604-125 BEARING, ENDCAP - ASSEMBLYBEARING, ENDCAP - ASSEMBLY
-
54604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
63604-789 WASHER, TOP OUTWASHER, TOP OUT
-
73603-096 VALVE, 0.700 X 0.012 IN.VALVE, 0.700 X 0.012 IN.
-
83603-105 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
93603-114 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
103603-124 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
113603-144 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
123603-184 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
133604-790 PISTON, 37 BORE-2.35 ORIFICEPISTON, 37 BORE-2.35 ORIFICE
-
143603-174 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
153603-145 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
163603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
173603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
183604-775 WASHER, BACKUPWASHER, BACKUP
-
193604-739 NUTNUT
-
203604-772 PISTON, FLOATINGPISTON, FLOATING
-
213604-773 SLEEVE, WEARSLEEVE, WEAR
-
223603-618 NUT, ADJUSTERNUT, ADJUSTER
-
233604-830 BODY, SHOCKBODY, SHOCK
-
241621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
252704-257 END CAP, SHOCK - ASSEMBLY (INC. 26-27)END CAP, SHOCK - ASSEMBLY (INC. 26-27)
-
263604-751 ...VALVE, PRESSURE (INC. 27)...VALVE, PRESSURE (INC. 27)
-
273604-733 ......O-RING, VALVE......O-RING, VALVE
-
283604-750 SCREW, MACHINESCREW, MACHINE
-
293604-906 BEARINGBEARING
-
305639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
310604-790 COVER, SHOCKCOVER, SHOCK
-
322704-927 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
333604-200 RETAINER, SPRINGRETAINER, SPRING
-
343604-273 AXLEAXLE
-
358408-045 SCREW, CAPSCREW, CAP
-
362623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
