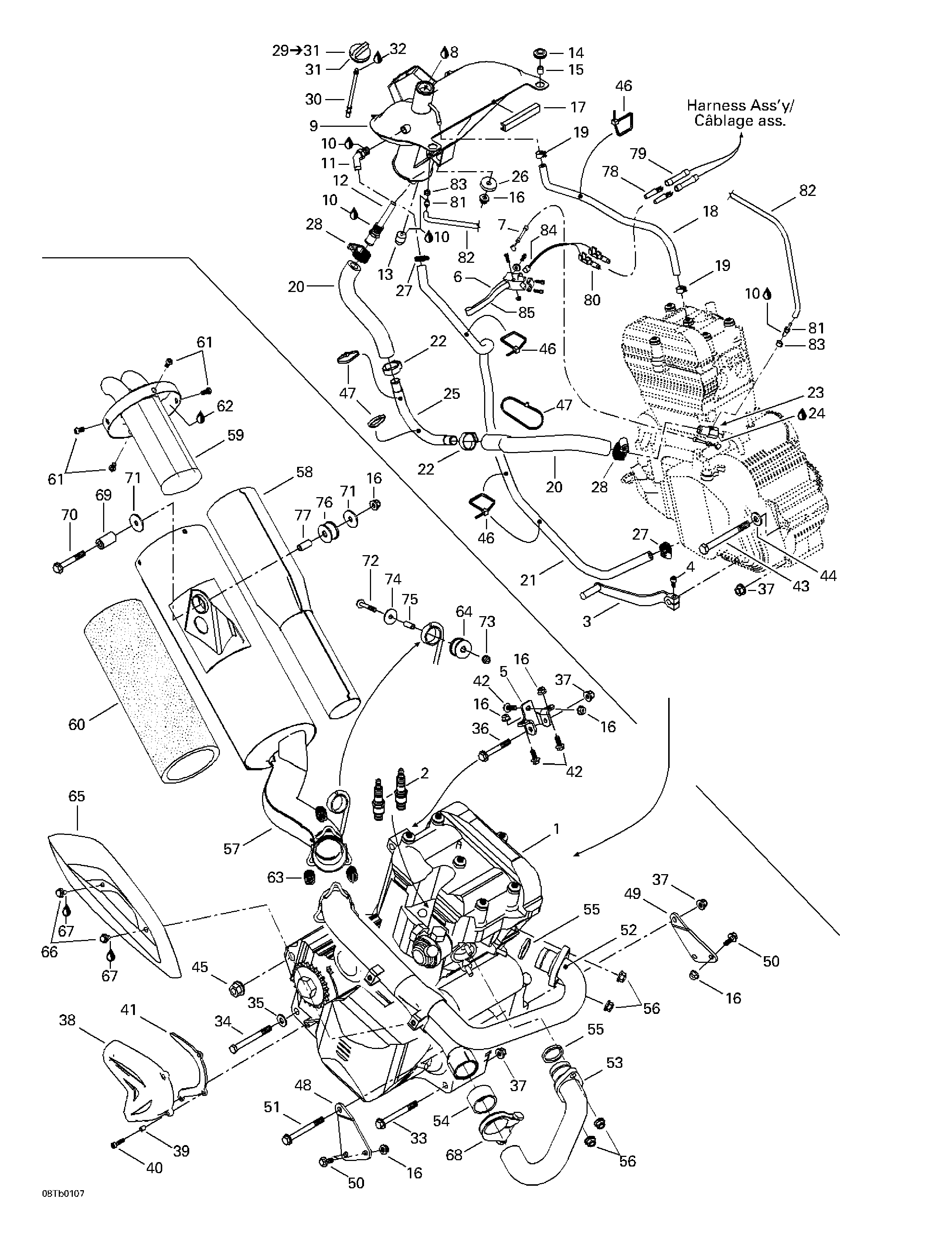

01- Exhaust And Engine System для BRP DS 650 (supplement), 7482 - 2001
-
№АртикулНазвание
-
1707000164 Rotax 4 Strokes Engine >. Includes 1 - 2.Rotax 4 Strokes Engine >. Includes 1 - 2.
-
2707000008 Spark Plug (NGK/DR8EA)Spark Plug (NGK/DR8EA)
-
3711248317 Shifter PedalShifter Pedal
-
4205062047 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
5707000029 Support BracketSupport Bracket
-
6707000035 Shifter LeverShifter Lever
-
7707000027 Shifter Lever CableShifter Lever Cable
-
9707000238 Oil TankOil Tank
-
10293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
11420922245 Angular TubeAngular Tube
-
12707000076 StrainerStrainer
-
13250000053 Magnetic CapMagnetic Cap
-
14293720062 GrommetGrommet
-
15707000058 SpacerSpacer
-
16233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
17414506600 Trim (Foot)Trim (Foot)
-
18275500139 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
19414415200 Spring ClampSpring Clamp
-
20707000098 Hose 15.8 mm (Meter)Hose 15.8 mm (Meter)
-
21709000022 Hose 9.5 mm (Meter)Hose 9.5 mm (Meter)
-
22293650099 Oetiker ClampOetiker Clamp
-
23707000242 AdaptorAdaptor
-
24293800073 Loctite 277, 10 mlLoctite 277, 10 ml
-
25707000059 Intake TubeIntake Tube
-
26250200002 Rubber WasherRubber Washer
-
27293650027 Tridon Gear ClampTridon Gear Clamp
-
28293650051 Tridon Gear ClampTridon Gear Clamp
-
29707000047 Oil Cap Ass'y. Includes 29 - 31.Oil Cap Ass'y. Includes 29 - 31.
-
31293250009 O-RingO-Ring
-
32413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
33230501046 Hex. Flanged Screw M10 x 110 (Scotch Grip)Hex. Flanged Screw M10 x 110 (Scotch Grip)
-
34230202046 Hex. Screw M10 x 120 (Scotch Grip)Hex. Screw M10 x 120 (Scotch Grip)
-
35224002251 WasherWasher
-
36207507046 Hex. Flanged Screw M10 x 70 (Scotch Grip)Hex. Flanged Screw M10 x 70 (Scotch Grip)
-
37233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
38707000024 Pinion CoverPinion Cover
-
39707000065 SpacerSpacer
-
40205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
41707000163 Chain GuardChain Guard
-
42207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
43230275044 Hex. Screw M14 x 150 (Scotch Grip)Hex. Screw M14 x 150 (Scotch Grip)
-
44234071410 Flat Washer 14 mmFlat Washer 14 mm
-
45233271414 Elastic Flanged Stop Nut M14Elastic Flanged Stop Nut M14
-
46414115200 Tie RapTie Rap
-
47293750008 Tie Rap 350 mmTie Rap 350 mm
-
48707000071 Support R.HSupport R.H
-
49707000072 Support L.HSupport L.H
-
50207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
51230500046 Hex. Flanged Screw M10 x 100 (Scotch Grip)Hex. Flanged Screw M10 x 100 (Scotch Grip)
-
52707600019 L.H. Tuned PipeL.H. Tuned Pipe
-
53707600095 R.H. Tuned PipeR.H. Tuned Pipe
-
54707600020 Pipe GasketPipe Gasket
-
55707600069 Pipe GasketPipe Gasket
-
56233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
57707600065 Tuned PipeTuned Pipe
-
58707600053 Perforated TubePerforated Tube
-
59707600066 End PieceEnd Piece
-
60707600089 InsulatorInsulator
-
61205461060 Socket Head Screw M6 x 10Socket Head Screw M6 x 10
-
62413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
63415107100 SpringSpring
-
64707600012 RubberRubber
-
65707600074 Heat ShieldHeat Shield
-
66207661244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
67293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
68293650093 Gear ClampGear Clamp
-
69707600049 SpacerSpacer
-
70207687044 Hex. Flanged Screw M8 x 70Hex. Flanged Screw M8 x 70
-
71224081301 Flat WasherFlat Washer
-
72207664044 Hex. Flanged Screw M6 x 40Hex. Flanged Screw M6 x 40
-
73233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
74224060251 WasherWasher
-
75707600070 SpacerSpacer
-
76707600077 RubberRubber
-
77293900025 BushingBushing
-
78278001009 Female TerminalFemale Terminal
-
79278001007 Insulated SheathInsulated Sheath
-
80278000230 Male TerminalMale Terminal
-
81707000240 Hose AdaptorHose Adaptor
-
82707000243 Hose 4.5 mm (Meter)Hose 4.5 mm (Meter)
-
83707000035 Norma ClampNorma Clamp
-
84707000183 Lever Shifter SwitchLever Shifter Switch
-
85707000184 Lever ShifterLever Shifter
