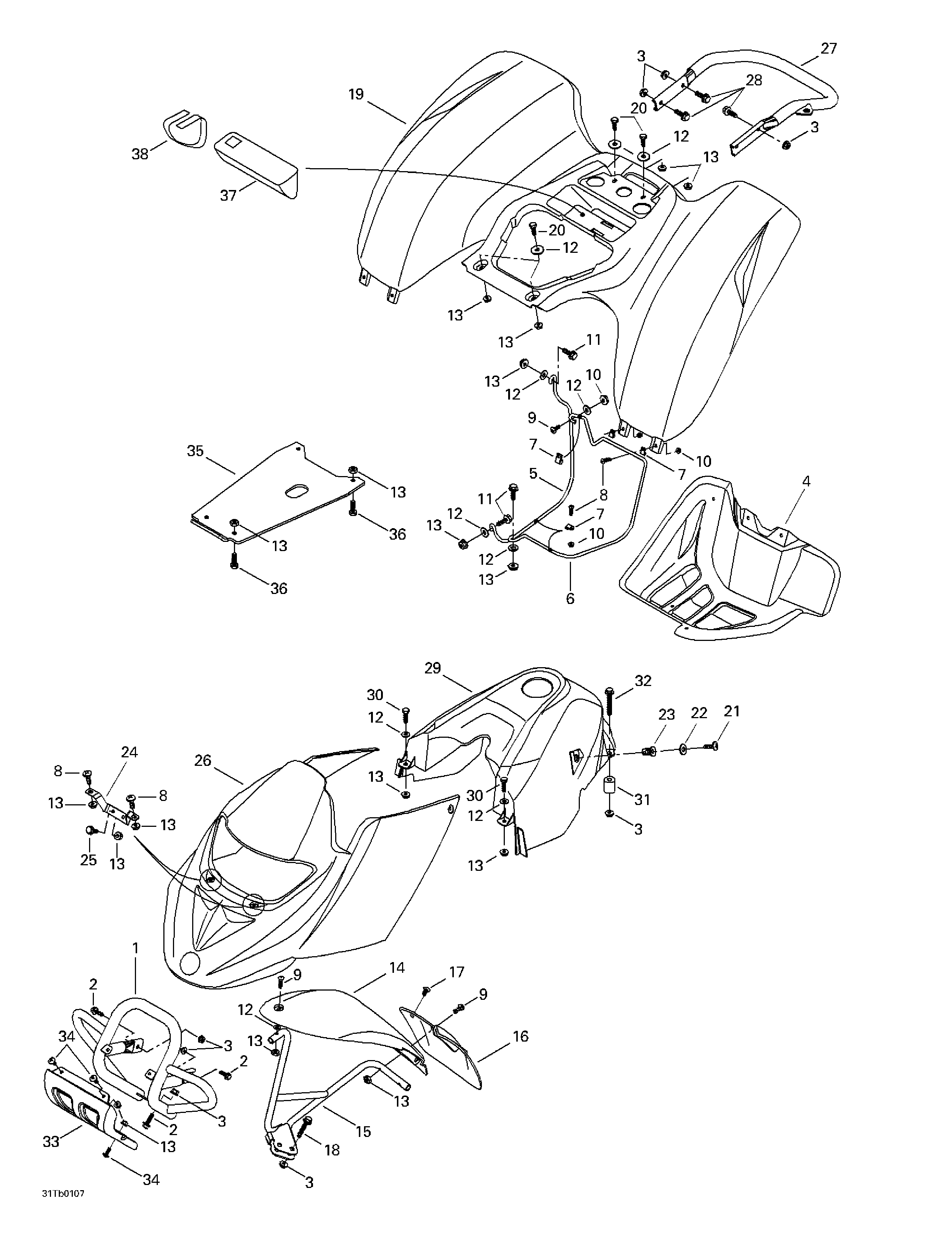

09- Body для BRP DS 650 (supplement), 7482 - 2001
-
№АртикулНазвание
-
1705000142 Front BumperFront Bumper
-
2207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
3233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
4705000301 R.H. Foot ProtectorR.H. Foot Protector
-
705000302 L.H. Foot ProtectorL.H. Foot Protector
-
5705000116 R.H. SupportR.H. Support
-
705000119 L.H. SupportL.H. Support
-
6705000117 R.H. SupportR.H. Support
-
705000120 L.H. SupportL.H. Support
-
7293650111 Gear ClampGear Clamp
-
8211000123 Screw M6 x 20Screw M6 x 20
-
9250000032 Screw M6 x 30Screw M6 x 30
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
12224061201 Flat WasherFlat Washer
-
13233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
14705000360 R.H. Front Fender (Black)R.H. Front Fender (Black)
-
705000361 L.H. Front Fender (Black)L.H. Front Fender (Black)
-
15705000150 R.H. Fender SupportR.H. Fender Support
-
705000151 L.H. Fender SupportL.H. Fender Support
-
16705000095 R.H. MudguardR.H. Mudguard
-
705000096 L.H. MudguardL.H. Mudguard
-
17414939500 DartDart
-
18207683544 Hex. Flanged Screw M8 x 35Hex. Flanged Screw M8 x 35
-
19705000362 Rear Fender (Black)Rear Fender (Black)
-
20207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
21250000043 Screw M6 x 20 (Scotch Grip)Screw M6 x 20 (Scotch Grip)
-
22506117300 BushingBushing
-
23732610057 Jack Nut M6Jack Nut M6
-
24705000146 Facia BracketFacia Bracket
-
25207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
26705000363 Front Facia (Black)Front Facia (Black)
-
27705000143 Rear BumperRear Bumper
-
28207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
29705000276 Tank CoverTank Cover
-
30207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
31705000114 SpacerSpacer
-
32207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
33705000303 Protector PlateProtector Plate
-
34211000123 Screw M6 x 20Screw M6 x 20
-
35705000304 Skid PlateSkid Plate
-
36207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
37295000178 Tool KitTool Kit
-
38708200008 StrapStrap
