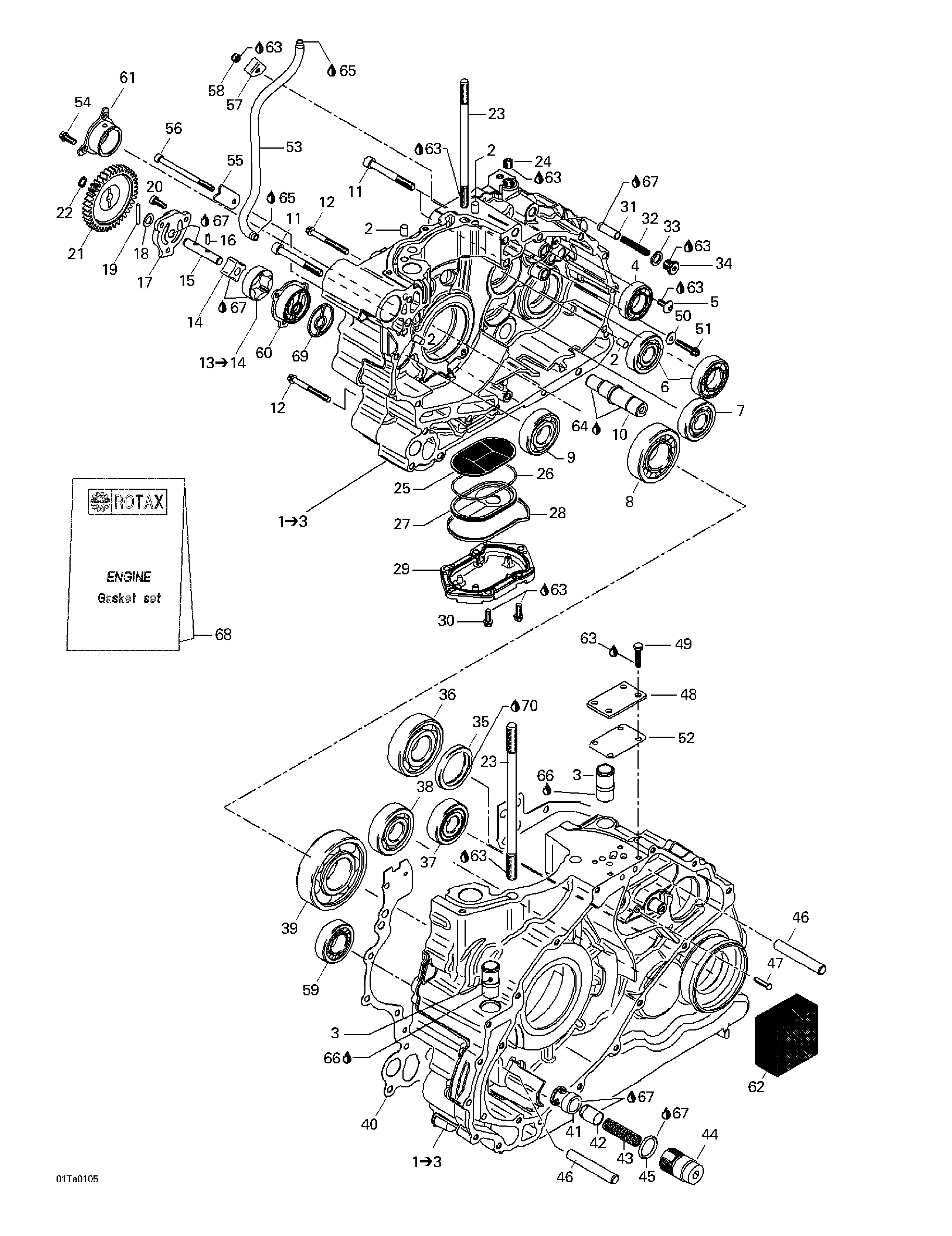

01- Crankcase для BRP Traxter Footshift, Green/vert - 2001
-
№АртикулНазвание
-
1711295881 Crankcase Ass'y. Includes 1 - 3.Crankcase Ass'y. Includes 1 - 3.
-
2290632010 Pin M8 x 12Pin M8 x 12
-
3711224260 TubeTube
-
4420932650 Ball Bearing 6005Ball Bearing 6005
-
5711241521 Flat Head Screw M6 x 16Flat Head Screw M6 x 16
-
6711232764 Ball Bearing 6205Ball Bearing 6205
-
7290932095 Ball Bearing 6304Ball Bearing 6304
-
8711232490 Roller BearingRoller Bearing
-
9711632200 Ball Bearing 63/22Ball Bearing 63/22
-
10711220570 Shaft, Intermediate GearShaft, Intermediate Gear
-
11420841991 Socket Screw M8 x 70Socket Screw M8 x 70
-
12711640351 Screw Hex. Flanged M6 x 65Screw Hex. Flanged M6 x 65
-
13711956275 Oil Pump Rotor Ass'y. Includes 13 - 14.Oil Pump Rotor Ass'y. Includes 13 - 14.
-
15711220592 Oil Pump ShaftOil Pump Shaft
-
16711232730 Needle PinNeedle Pin
-
17711211852 Oil Pump CoverOil Pump Cover
-
18711827590 Thrust WasherThrust Washer
-
19420232970 Needle Pin M4 x 25Needle Pin M4 x 25
-
20420240400 Socket Screw M6 x 20Socket Screw M6 x 20
-
21711635030 Oil Pump Gear (40 Teeth)Oil Pump Gear (40 Teeth)
-
22420245330 Snap RingSnap Ring
-
23711241670 Stud M10 x 190Stud M10 x 190
-
24711840651 Plug ScrewPlug Screw
-
25711256572 Oil SieveOil Sieve
-
26711931385 O-RingO-Ring
-
27711256652 Oil CollectorOil Collector
-
28711650950 Rubber RingRubber Ring
-
29711211941 Oil Sieve CoverOil Sieve Cover
-
30711241861 Screw Hex. Flanged M6 x 20Screw Hex. Flanged M6 x 20
-
31711256590 PistonPiston
-
32711238020 Compression SpringCompression Spring
-
33711250015 Sealing RingSealing Ring
-
34711241700 Plug ScrewPlug Screw
-
35711650700 Oil SealOil Seal
-
36420932825 Ball Bearing 6305Ball Bearing 6305
-
37711932815 Ball Bearing 6303EBall Bearing 6303E
-
38290932095 Ball Bearing 6304EBall Bearing 6304E
-
39711432120 Ball Bearing 6307Ball Bearing 6307
-
40711650422 Gasket, CrankcaseGasket, Crankcase
-
41711256602 Valve Seat SleeveValve Seat Sleeve
-
42711256630 Valve PistonValve Piston
-
43711938785 Compression SpringCompression Spring
-
44711640790 Plug Screw M24Plug Screw M24
-
45711250050 O-RingO-Ring
-
46711229470 Cylindrical Pin M10 x 65Cylindrical Pin M10 x 65
-
47711229170 Groove Pin M4 x 20Groove Pin M4 x 20
-
48711627470 Plug CoverPlug Cover
-
49711840516 Socket Screw M5 x 18Socket Screw M5 x 18
-
50711627400 WasherWasher
-
51711241941 Allen Screw M6 x 30Allen Screw M6 x 30
-
52711650635 GasketGasket
-
53711224622 Oil PipeOil Pipe
-
54711241751 Hex Flanged Screw M6 x 16Hex Flanged Screw M6 x 16
-
55711627437 Holding StripHolding Strip
-
56711241481 Socket Screw M6 x 90Socket Screw M6 x 90
-
57711627432 Holding StripHolding Strip
-
58232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
59711232280 Roller Bearing 204Roller Bearing 204
-
60711610140 Ring HousingRing Housing
-
61711610130 Ring HousingRing Housing
-
62711256720 Oil Separating FoamOil Separating Foam
-
63293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
64711297433 MolykoteG-n,DowCorning,88162-74,50gMolykoteG-n,DowCorning,88162-74,50g
-
65293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
66413711400 Loctite 648, 10mlLoctite 648, 10ml
-
68711296373 Engine Gasket SetEngine Gasket Set
-
69711650960 Rubber RingRubber Ring
-
70293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
