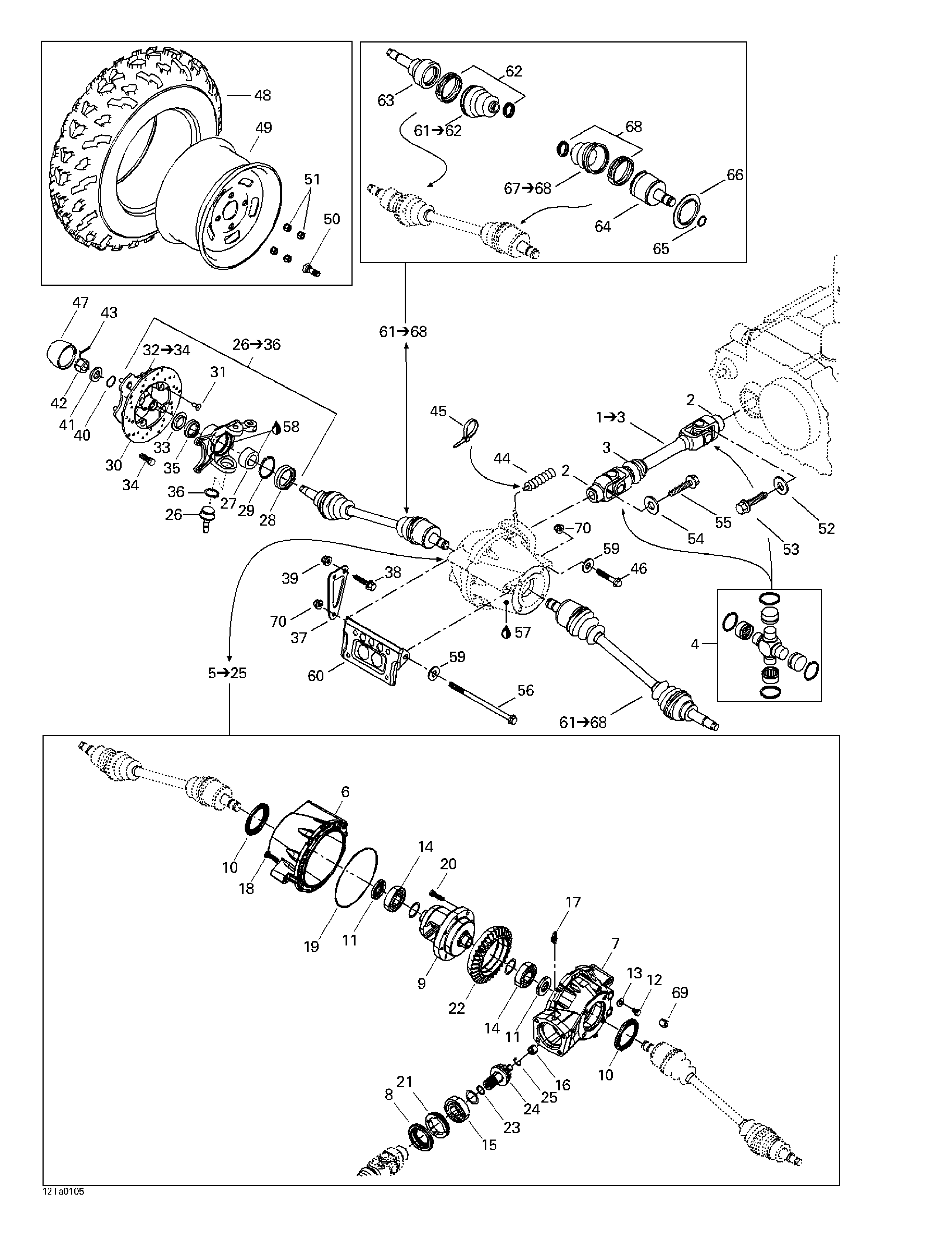

05- Drive System, Front для BRP Traxter Footshift, Green/vert - 2001
-
№АртикулНазвание
-
1703500001 Front Propeller Shaft Kit. Includes 1 - 3.Front Propeller Shaft Kit. Includes 1 - 3.
-
2705400036 Wear SleeveWear Sleeve
-
3705400051 ProtectorProtector
-
4703500002 Universal Joint Packing KitUniversal Joint Packing Kit
-
5705400003 Front Differential Ass'y Diff-rentiel avant ass. Includes 5 - 25.Front Differential Ass'y Diff-rentiel avant ass. Includes 5 - 25.
-
6705400025 Differential CapDifferential Cap
-
7705400026 Differential CarrierDifferential Carrier
-
8705400027 Oil SealOil Seal
-
9705400004 DifferentialDifferential
-
10705400019 Oil SealOil Seal
-
11705500081 Oil SealOil Seal
-
12705500298 Drain PlugDrain Plug
-
13705500299 Seal RingSeal Ring
-
14705500080 Ball BearingBall Bearing
-
15705500074 Ball BearingBall Bearing
-
16705500077 Needle BearingNeedle Bearing
-
17705500124 Vent ValveVent Valve
-
18705500088 ScrewScrew
-
19705500091 SealSeal
-
20705500090 Ring Gear ScrewRing Gear Screw
-
21705500072 NutNut
-
22705500087 Gear (36 Teeth)Gear (36 Teeth)
-
23705500073 O-RingO-Ring
-
24705500076 Gear (10 Teeth)Gear (10 Teeth)
-
25705500102 Retaining RingRetaining Ring
-
26703500063 Knuckle Kit R.H. (7439,7440,7441,7442). Includes 26 - 36.Knuckle Kit R.H. (7439,7440,7441,7442). Includes 26 - 36.
-
703500064 Knuckle Kit L.H. (7439,7440,7441,7442)Knuckle Kit L.H. (7439,7440,7441,7442)
-
26706200091 Ball JointBall Joint
-
27705400006 Angle Bearing (7439,7440,7441,7442)Angle Bearing (7439,7440,7441,7442)
-
705400088 Angle Bearing (7473,7474)Angle Bearing (7473,7474)
-
28293250090 SealSeal
-
29293370003 Circlip (7439,7440,7441,7442)Circlip (7439,7440,7441,7442)
-
293370019 Circlip (7473,7474)Circlip (7473,7474)
-
30705600003 BrakeDisk 205mm(7439,7440,7441,7442)BrakeDisk 205mm(7439,7440,7441,7442)
-
705600171 Brake Disk 205 mm (7473,7474)Brake Disk 205 mm (7473,7474)
-
31235381646 Screw M8 x 16 (Scotch Grip)Screw M8 x 16 (Scotch Grip)
-
32705400011 Front Wheel Hub (7439,7440,7441,7442). Includes 32 - 34.Front Wheel Hub (7439,7440,7441,7442). Includes 32 - 34.
-
705400090 Front Wheel Hub (7473,7474)Front Wheel Hub (7473,7474)
-
33705500100 Wear SleeveWear Sleeve
-
34211300020 Stud Wheel M10 x 30Stud Wheel M10 x 30
-
35293250098 Seal (7439,7440,7441,7442)Seal (7439,7440,7441,7442)
-
705500099 Seal (7473,7474)Seal (7473,7474)
-
36293370009 CirclipCirclip
-
37705400069 Bracket, differentialBracket, differential
-
38207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
39233281414 Flanged Nut M8Flanged Nut M8
-
40293300052 O-Ring (7439,7440,7441,7442)O-Ring (7439,7440,7441,7442)
-
705500271 O-Ring (7473,7474)O-Ring (7473,7474)
-
41250200019 WasherWasher
-
42232291413 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
43211400012 Cotter PinCotter Pin
-
44705400066 Rubber BellowsRubber Bellows
-
45293750001 Tie Rap, 94 mmTie Rap, 94 mm
-
46207506044 Hex. Flanged Screw M10 x 60 (Scotch Grip)Hex. Flanged Screw M10 x 60 (Scotch Grip)
-
47705400012 Wheel CapWheel Cap
-
48705400009 Front TireFront Tire
-
49705400010 Front RimFront Rim
-
50705400053 Valve (Rim)Valve (Rim)
-
51705400013 Nut M10Nut M10
-
52211200041 WasherWasher
-
53207581646 Hex. Flanged Screw M8 x 16 (Scotch Grip)Hex. Flanged Screw M8 x 16 (Scotch Grip)
-
54250200014 Flat WasherFlat Washer
-
55250000060 Flanged Screw M10 x 16 (Scotch Grip)Flanged Screw M10 x 16 (Scotch Grip)
-
56250000024 Hex. Flanged Screw M10 x 200 (Scotch Grip)Hex. Flanged Screw M10 x 200 (Scotch Grip)
-
57293600011 Redline Pump Oil, 75W90, 12 x 6 ozRedline Pump Oil, 75W90, 12 x 6 oz
-
58293550010 Synthtic Grease, 400 gSynthtic Grease, 400 g
-
59250200003 Flat WasherFlat Washer
-
60705400068 BracketBracket
-
61703500021 R.H. CV Joint (7439,7440, 7441,7442). Includes 61 - 68.R.H. CV Joint (7439,7440, 7441,7442). Includes 61 - 68.
-
705400083 R.H. CV Joint (7473,7474)R.H. CV Joint (7473,7474)
-
703500022 L.H. CV Joint (7439,7440,7441,7442)L.H. CV Joint (7439,7440,7441,7442)
-
705400084 L.H. CV Joint (7473,7474)L.H. CV Joint (7473,7474)
-
61705400038 Wheel Boot Kit. Includes 61 - 62.Wheel Boot Kit. Includes 61 - 62.
-
62705400063 Clamp (big)Clamp (big)
-
705400064 Clamp (Small)Clamp (Small)
-
63705400037 CV Joint (7439,7440,7441,7442)CV Joint (7439,7440,7441,7442)
-
705400093 CV Joint (7473,7474)CV Joint (7473,7474)
-
64705400040 R.H. Plunging JointR.H. Plunging Joint
-
705400041 L.H. Plunging JointL.H. Plunging Joint
-
65705400042 CirclipCirclip
-
66705400016 Wear SleeveWear Sleeve
-
67705400039 Differential Boot Kit. Includes 67 - 68.Differential Boot Kit. Includes 67 - 68.
-
68705400064 Clamp (Small)Clamp (Small)
-
705400065 Clamp (Big)Clamp (Big)
-
69705500143 Filler/Level PlugFiller/Level Plug
-
70233101414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
