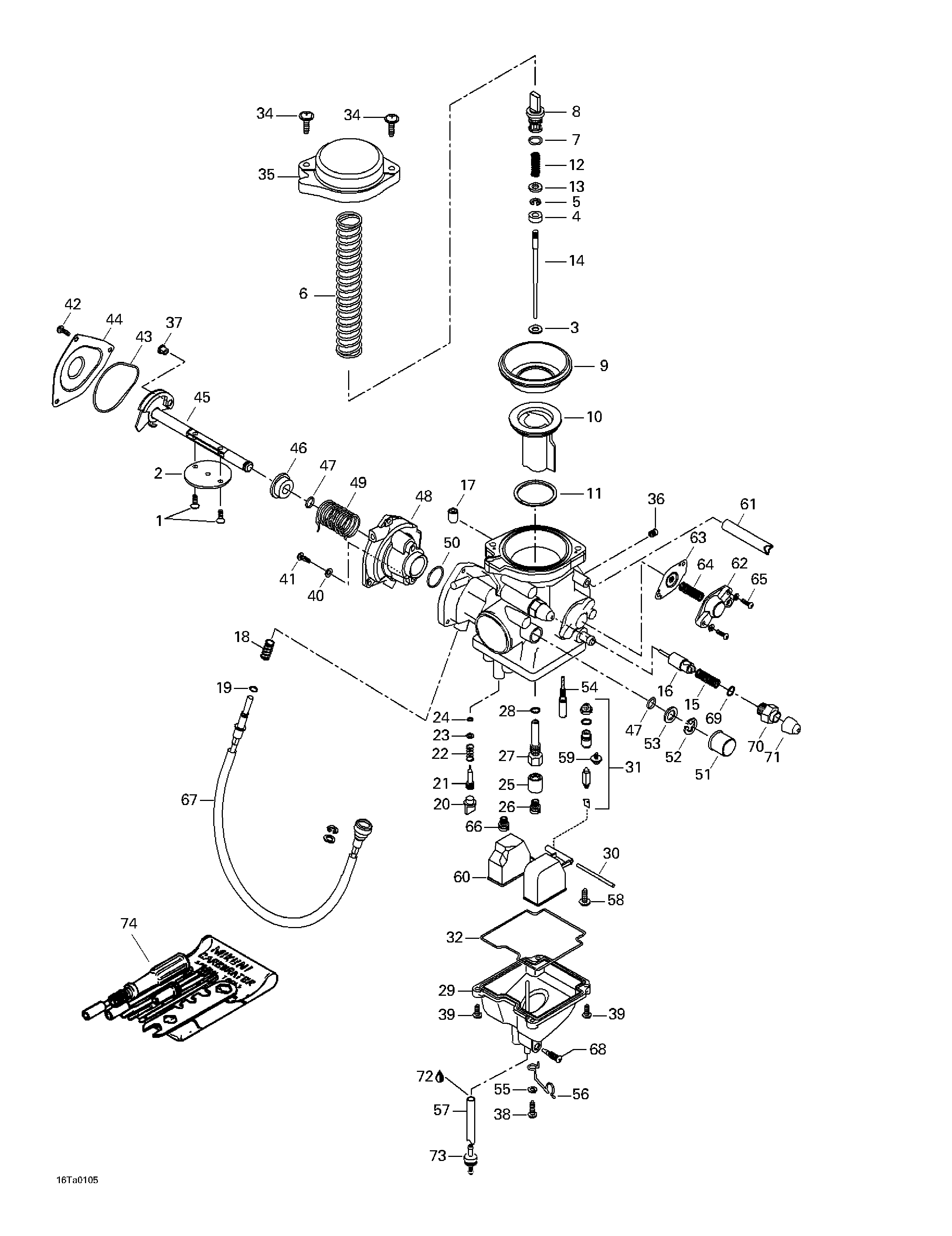

02- Carburetor для BRP Traxter Footshift, Red/rouge - 2001
-
№АртикулНазвание
-
1707000114 CarburatorAss'yBSR33-26(7439,7440,7441,7442). Includes 1 - 71.CarburatorAss'yBSR33-26(7439,7440,7441,7442). Includes 1 - 71.
-
707200157 Carburator Ass'y BSR 33-29 (7473,7474)Carburator Ass'y BSR 33-29 (7473,7474)
-
3707200064 WasherWasher
-
4707200065 RingRing
-
5404152200 E-RingE-Ring
-
6707200066 SpringSpring
-
7270500144 O-RingO-Ring
-
8707200067 HolderHolder
-
9707200068 DiaphragmDiaphragm
-
10707200069 Piston ValvePiston Valve
-
11707200070 RingRing
-
12707200071 SpringSpring
-
13707200072 WasherWasher
-
14707200109 Needle J8-5FEY01 (7439,7440,7441,7442)Needle J8-5FEY01 (7439,7440,7441,7442)
-
707200167 Needle J8-5FIY03 (7473,7474)Needle J8-5FIY03 (7473,7474)
-
15707200144 SpringSpring
-
16707200150 Plunger Ass'y (7439,7440,7441,7442)Plunger Ass'y (7439,7440,7441,7442)
-
707200170 Plunger Ass'y (7473,7474)Plunger Ass'y (7473,7474)
-
17404154900 CapCap
-
18404101700 SpringSpring
-
19707200141 WasherWasher
-
20707200004 CapCap
-
21707200077 Adjuster ScrewAdjuster Screw
-
22707200078 SpringSpring
-
23707200018 WasherWasher
-
24404139900 O-RingO-Ring
-
25707200079 RingRing
-
26270500276 Main Jet-145 (7439,7440,7441,7442)Main Jet-145 (7439,7440,7441,7442)
-
270500251 Main Jet-140 (7473,7474)Main Jet-140 (7473,7474)
-
27707200080 Jet HolderJet Holder
-
28270500119 O-RingO-Ring
-
29707200081 Float Body Ass'yFloat Body Ass'y
-
30404123400 PinPin
-
31707200082 Needle Valve 1.0Needle Valve 1.0
-
32707200083 O-RingO-Ring
-
33707200084 Needle Jet (not shown)Needle Jet (not shown)
-
34707200085 ScrewScrew
-
35707200086 Diaphragm CoverDiaphragm Cover
-
36707200087 Pilot Jet 60.0Pilot Jet 60.0
-
37707200058 Cable GuideCable Guide
-
38404138700 ScrewScrew
-
39707200089 ScrewScrew
-
42707200091 VisVis
-
43707200092 O-RingO-Ring
-
44707200093 CoverCover
-
54707200151 Pilot Jet 37.5 (7439,7440,7441,7442)Pilot Jet 37.5 (7439,7440,7441,7442)
-
707200168 Pilot Jet 35.0 (7473,7474)Pilot Jet 35.0 (7473,7474)
-
55707200101 WasherWasher
-
56707200102 ClipClip
-
57707200041 HoseHose
-
58404138600 VisVis
-
59404161861 VisVis
-
60707200103 Float- Ass'yFloat- Ass'y
-
61707200104 HoseHose
-
62707200105 Cover-Ass'yCover-Ass'y
-
63707200106 Diaphragm-Ass'yDiaphragm-Ass'y
-
64707200107 Spring (7439,7440,7441,7442)Spring (7439,7440,7441,7442)
-
707200160 Spring (7473,7474)Spring (7473,7474)
-
65404901400 VisVis
-
66707200152 Main Jet 50Main Jet 50
-
67707200146 Adjuster CableAdjuster Cable
-
68707200024 ScrewScrew
-
69404140200 O-RingO-Ring
-
70707200009 Guide HolderGuide Holder
-
71707200010 CapCap
-
72293800071 Loctite 454, 10 gLoctite 454, 10 g
-
73275500398 Check ValveCheck Valve
-
74404112000 Tool KitTool Kit
