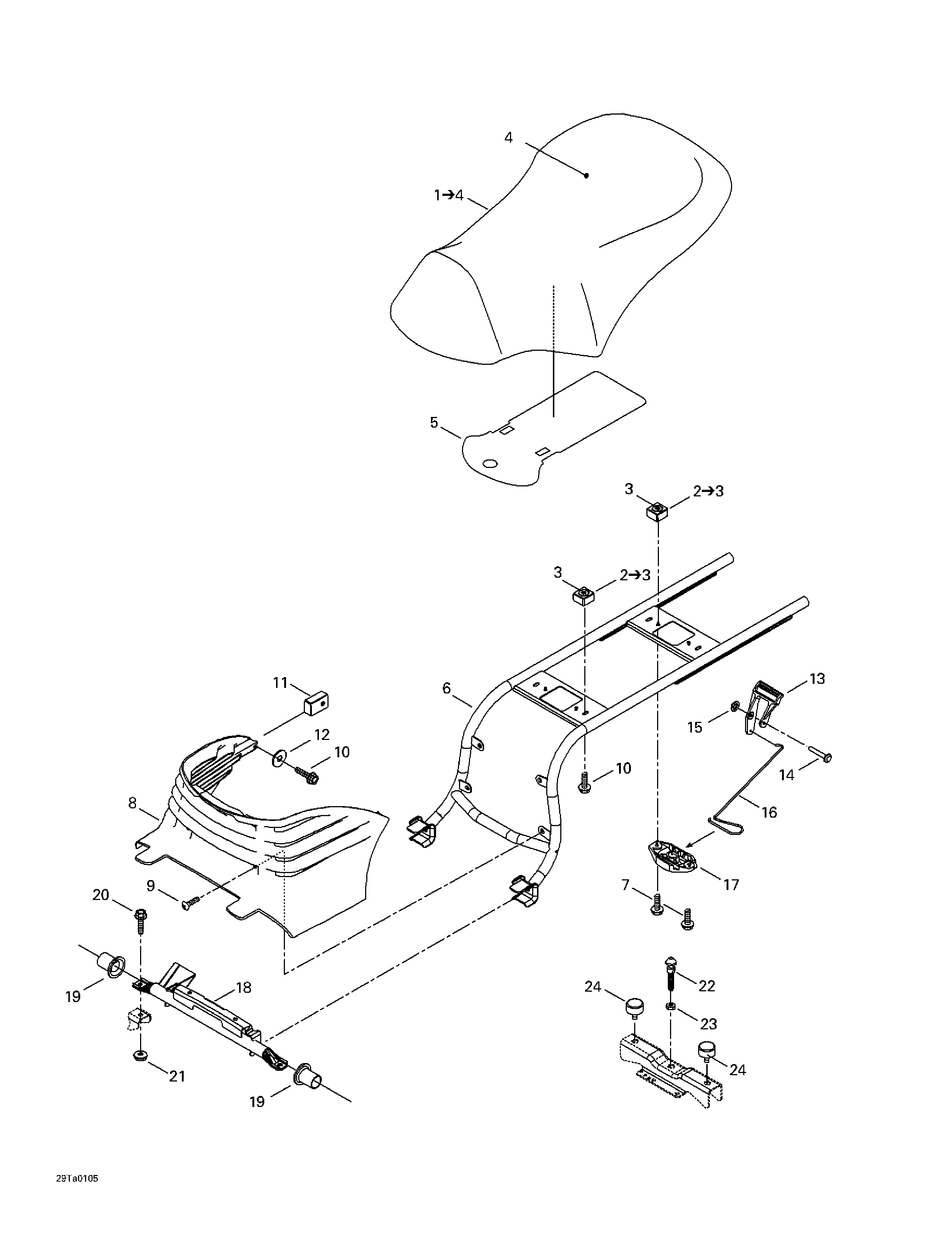

09- Seat для BRP Traxter Footshift, Red/rouge - 2001
-
№АртикулНазвание
-
1708000048 Seat Ass'y (7439,7440,7441,7442). Includes 1 - 4.Seat Ass'y (7439,7440,7441,7442). Includes 1 - 4.
-
708000093 Seat Ass'y (7473,7474)Seat Ass'y (7473,7474)
-
2708000046 Nut Housing Ass'y. Includes 2 - 3.Nut Housing Ass'y. Includes 2 - 3.
-
3232561414 Hex. Nut M6Hex. Nut M6
-
4708000024 Seat Cover (7439,7440,7441,7442)Seat Cover (7439,7440,7441,7442)
-
708000095 Seat Cover (7473,7474)Seat Cover (7473,7474)
-
5708000029 Reflective SheetReflective Sheet
-
6708000003 Seat SupportSeat Support
-
7207662544 Screw Hex. Flanged M6 x 25Screw Hex. Flanged M6 x 25
-
8705000187 Engine CoverEngine Cover
-
9210261080 Screw M6 x 10Screw M6 x 10
-
10207661644 Screw Hex. Flanged M6 x 16Screw Hex. Flanged M6 x 16
-
11708000042 NutNut
-
12224061201 Washer FlatWasher Flat
-
13708000010 Latch LeverLatch Lever
-
14293150062 RivetRivet
-
15389804300 Push NutPush Nut
-
16708000015 SpringSpring
-
17708000034 Latch BaseLatch Base
-
18708000044 Seat PivotSeat Pivot
-
19708000019 Seat BushingSeat Bushing
-
20207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
21233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
22291000689 Latch StudLatch Stud
-
23232100600 Jam Nut Hex. M10Jam Nut Hex. M10
-
24708000006 Rubber StopperRubber Stopper
