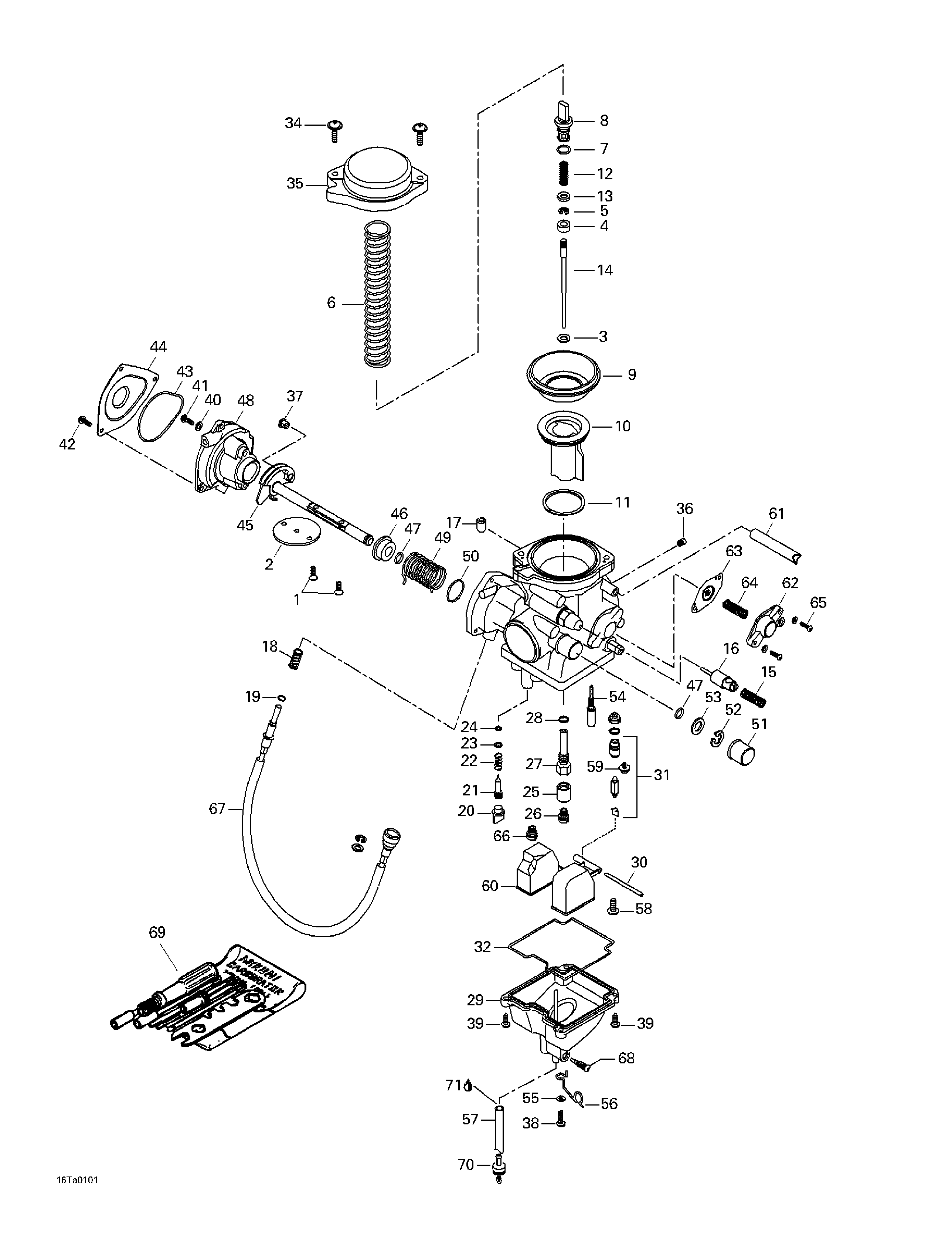

02- Carburetor для BRP Traxter, 7419/7420/7425/7426 (red/rouge) - 2001
-
№АртикулНазвание
-
1707000038 Carburator Ass'y BSR 33-12-A. Includes 1 - 68.Carburator Ass'y BSR 33-12-A. Includes 1 - 68.
-
3707200064 WasherWasher
-
4707200065 RingRing
-
5404152200 E-RingE-Ring
-
6707200066 SpringSpring
-
7270500144 O-RingO-Ring
-
8707200067 HolderHolder
-
9707200068 DiaphragmDiaphragm
-
10707200069 Valve-PistonValve-Piston
-
11707200070 RingRing
-
12707200071 SpringSpring
-
13707200072 WasherWasher
-
14707200109 NeedleNeedle
-
15707200144 SpringSpring
-
16707200145 Plunger Ass'yPlunger Ass'y
-
17404154900 CapCap
-
18404101700 SpringSpring
-
19707200141 WasherWasher
-
20707200004 CapCap
-
21707200077 Adjuster ScrewAdjuster Screw
-
22707200078 SpringSpring
-
23707200018 WasherWasher
-
24404139900 O-RingO-Ring
-
25707200079 RingRing
-
26270500163 Jet-Main 130Jet-Main 130
-
27707200080 Holder-JetHolder-Jet
-
28270500119 O-RingO-Ring
-
29707200081 Body-Float Ass'yBody-Float Ass'y
-
30404123400 PinPin
-
31707200082 Valve-Needle 1.0Valve-Needle 1.0
-
32707200083 O-RingO-Ring
-
33707200084 Jet-Needle (not shown)Jet-Needle (not shown)
-
34707200085 ScrewScrew
-
35707200086 Cover-DiaphragmCover-Diaphragm
-
36707200087 Jet-Pilot 60.0Jet-Pilot 60.0
-
37707200058 Cable GuideCable Guide
-
38404138700 ScrewScrew
-
39707200089 ScrewScrew
-
42707200091 VisVis
-
43707200092 Ring-ORing-O
-
44707200093 CoverCover
-
54707200100 Jet-Pilot 32.5Jet-Pilot 32.5
-
55707200101 WasherWasher
-
56707200102 ClipClip
-
57707200041 HoseHose
-
58404138600 VisVis
-
59404161861 VisVis
-
60707200103 Float- Ass'yFloat- Ass'y
-
61707200104 HoseHose
-
62707200105 Cover-Ass'yCover-Ass'y
-
63707200106 Diaphragm-Ass'yDiaphragm-Ass'y
-
64707200107 SpringSpring
-
65404901400 VisVis
-
66707200108 Jet-Main 45.0Jet-Main 45.0
-
67707200146 Adjuster CableAdjuster Cable
-
68707200024 ScrewScrew
-
69404112000 Tool KitTool Kit
-
70275500398 Check ValveCheck Valve
-
71293800071 Loctite 454, 10 gLoctite 454, 10 g
