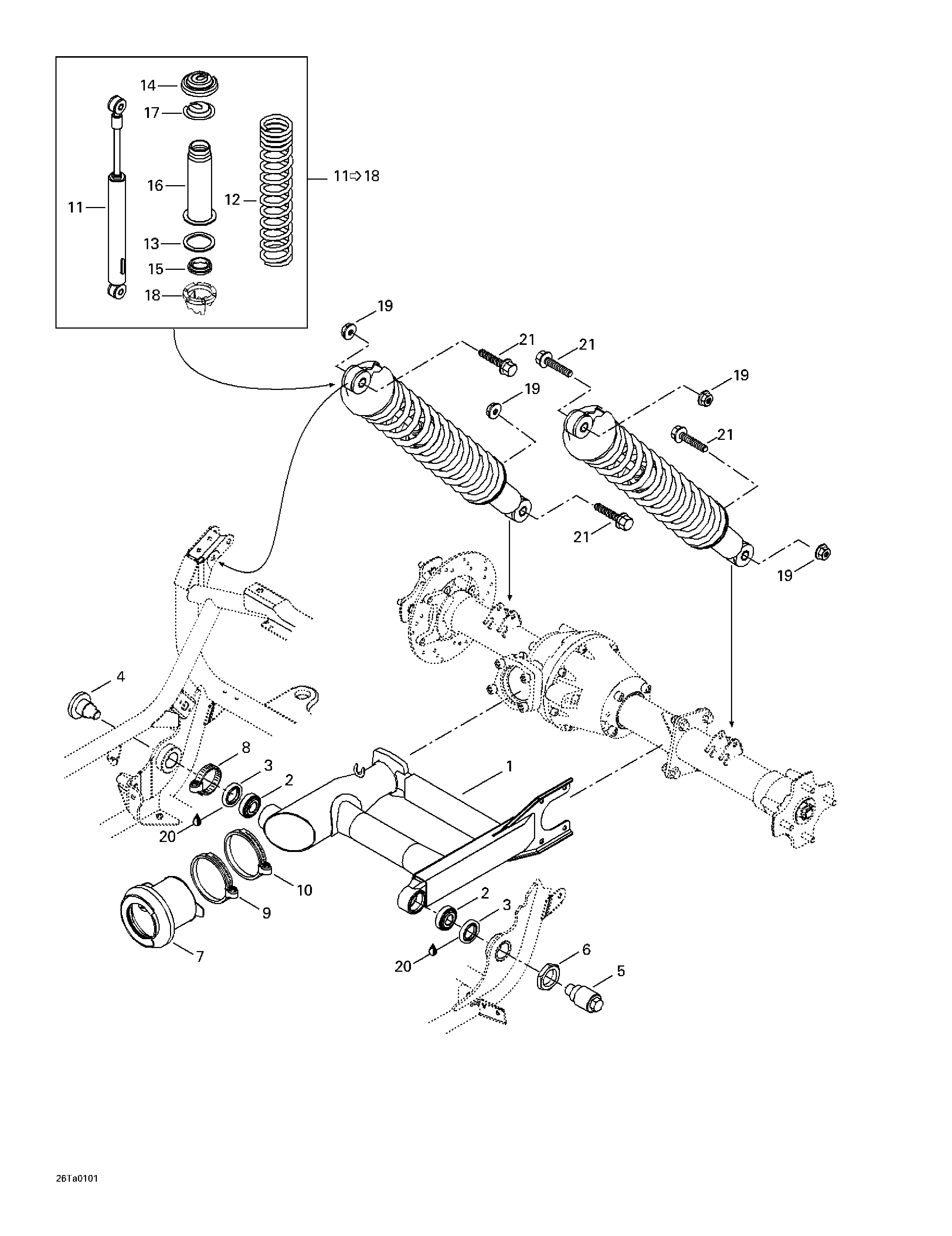

08- Rear Suspension для BRP Traxter, 7419/7420/7425/7426 (red/rouge) - 2001
-
№АртикулНазвание
-
1703500023 Swing Arm Kit. Includes 1 - 3.Swing Arm Kit. Includes 1 - 3.
-
2706000009 Cone BearingCone Bearing
-
3706000010 Oil Seal Ass'yOil Seal Ass'y
-
4706000092 Pivot Bolt R.HPivot Bolt R.H
-
5706000093 Pivot Bolt L.HPivot Bolt L.H
-
6706000006 Jam Nut HexJam Nut Hex
-
7706000011 Swing Arm BellowsSwing Arm Bellows
-
8293650090 Clamp NormaClamp Norma
-
9293650096 Clamp NormaClamp Norma
-
10514052924 Clamp NormaClamp Norma
-
11706000124 Rear Shock. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).Rear Shock. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
-
706000088 Rear Shock. 7423/7424 (XT-Yellow/Jaune).Rear Shock. 7423/7424 (XT-Yellow/Jaune).
-
12706000068 Rear SpringRear Spring
-
13706000028 Ring HolderRing Holder
-
14503140600 Spring StopperSpring Stopper
-
15706000007 Spring SeatSpring Seat
-
16706000032 ProtectorProtector
-
17503141600 CapCap
-
18706000073 Ring AdjusterRing Adjuster
-
19233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
20293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
21207605544 Screw Hex. Flanged M10 x 55Screw Hex. Flanged M10 x 55
