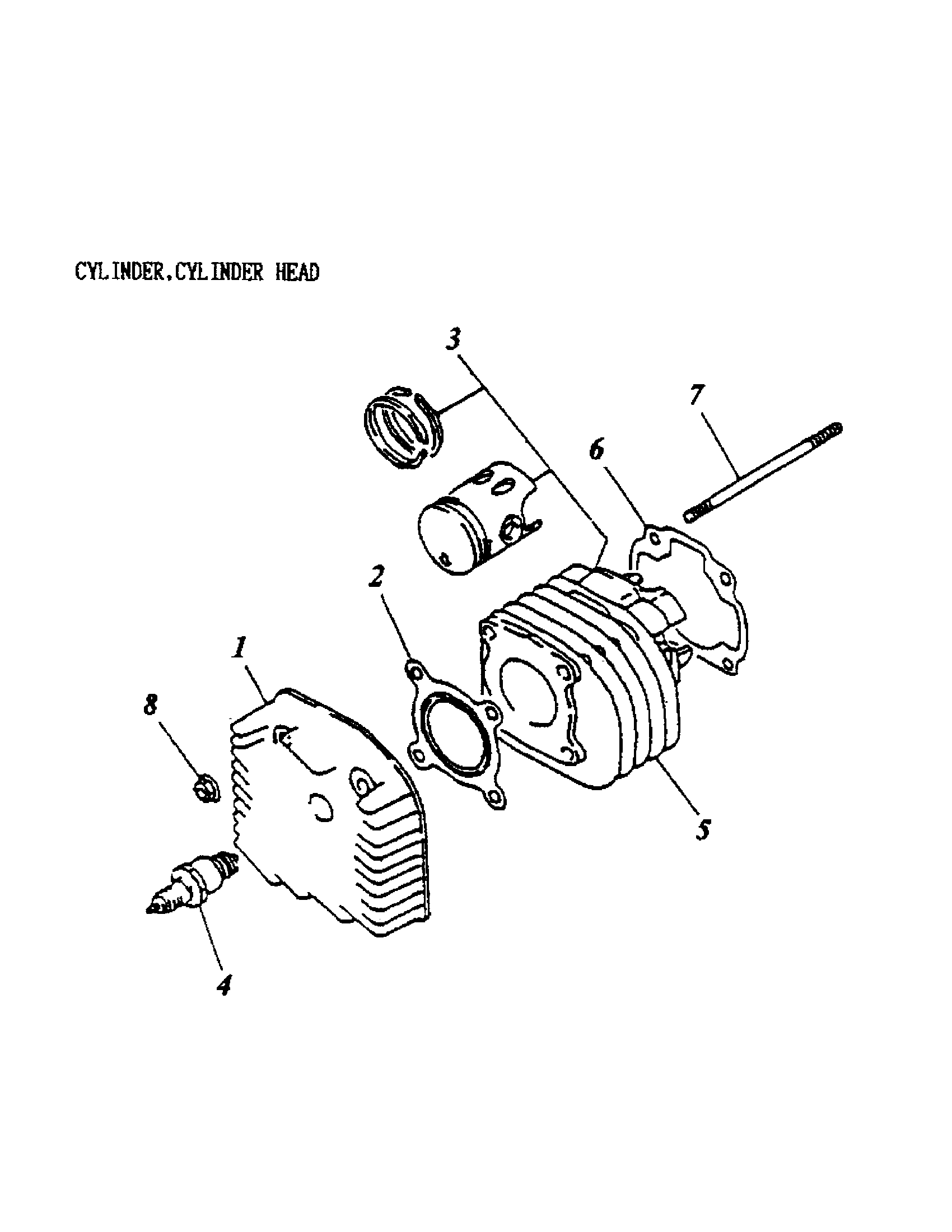

01- Cylinder, Cylinder Head 166-01 для BRP Mini DS 50 2-strokes - 2002
-
№АртикулНазвание
-
1A12201116000 Cylinder HeadCylinder Head
-
2A12251116000 Cylinder Head GasketCylinder Head Gasket
-
3A12301116000 Cylinder CompCylinder Comp
-
4A9807610100A Resistance Spark PlugResistance Spark Plug
-
5A12101116000 CylinderCylinder
-
6A12191116000 Cylinder GasketCylinder Gasket
-
7A9100107110 Stud Bolt M7 x 110Stud Bolt M7 x 110
-
8A9405007000 Hex. Flanged Nut With Serration M7Hex. Flanged Nut With Serration M7
