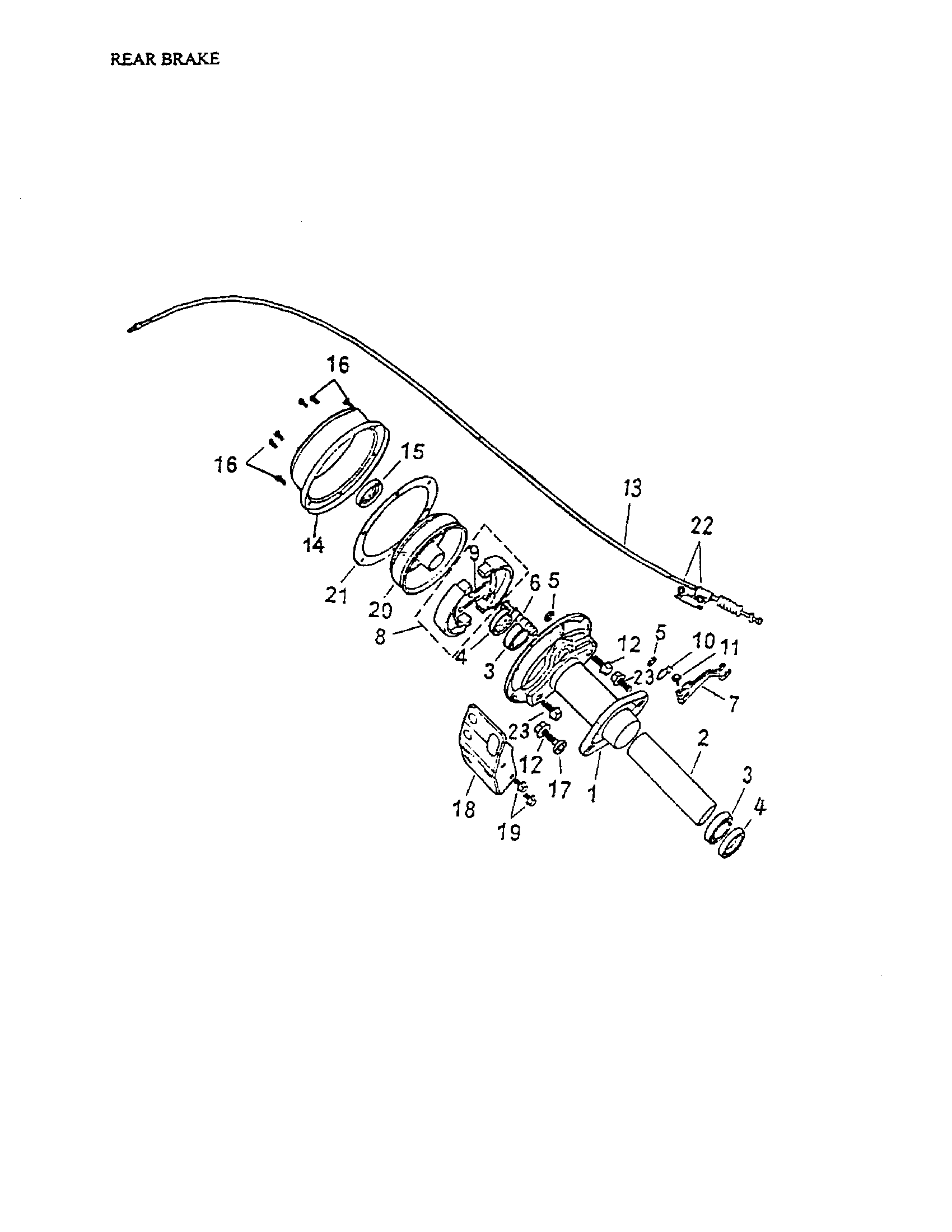

06- Rear Brake 166-20 для BRP Mini DS 50 2-strokes - 2002
-
№АртикулНазвание
-
1A43101145001 Rear Brake PanelRear Brake Panel
-
2A42313145000 Rear Brake Panel SpacerRear Brake Panel Spacer
-
3A961006006ZZ Radial Ball Bearing (6006ZZ)Radial Ball Bearing (6006ZZ)
-
4A96500355511 Oil SealOil Seal
-
5A9650014204 Oil SealOil Seal
-
6A43141145000 Rear Brake Cam ShaftRear Brake Cam Shaft
-
7A43410145000 Rear Brake ArmRear Brake Arm
-
8A43120145000 Rear Brake Shoe CompRear Brake Shoe Comp
-
9A43151145000 Shoe Strain SpringShoe Strain Spring
-
10A42617145000 Return SpringReturn Spring
-
11A960000603010 Hex. Washer Face Bolt M6 x 30Hex. Washer Face Bolt M6 x 30
-
12A960001202717L Hex. Washer Face Bolt M12 x 27Hex. Washer Face Bolt M12 x 27
-
13A43450145000 Rear Brake CableRear Brake Cable
-
14A42612145000 Rear Drum CoverRear Drum Cover
-
15A96500325211 Oil SealOil Seal
-
16A960000601208G Hex. Washer Face Bolt M6 x 8Hex. Washer Face Bolt M6 x 8
-
17A941011225050 Plain WasherPlain Washer
-
18A42613145000 Rear Brake CoverRear Brake Cover
-
19A960000801212G Hex. Washer Face Bolt M8 x 12Hex. Washer Face Bolt M8 x 12
-
20A42601145000 Rear DrumRear Drum
-
21A42614145000 Rear Drum Cover GasketRear Drum Cover Gasket
-
22A9405008000 Hex. Flanged Nut With Serration M8Hex. Flanged Nut With Serration M8
-
23A960001202217L Hex. Washer Face Bolt M12 x 22Hex. Washer Face Bolt M12 x 22
