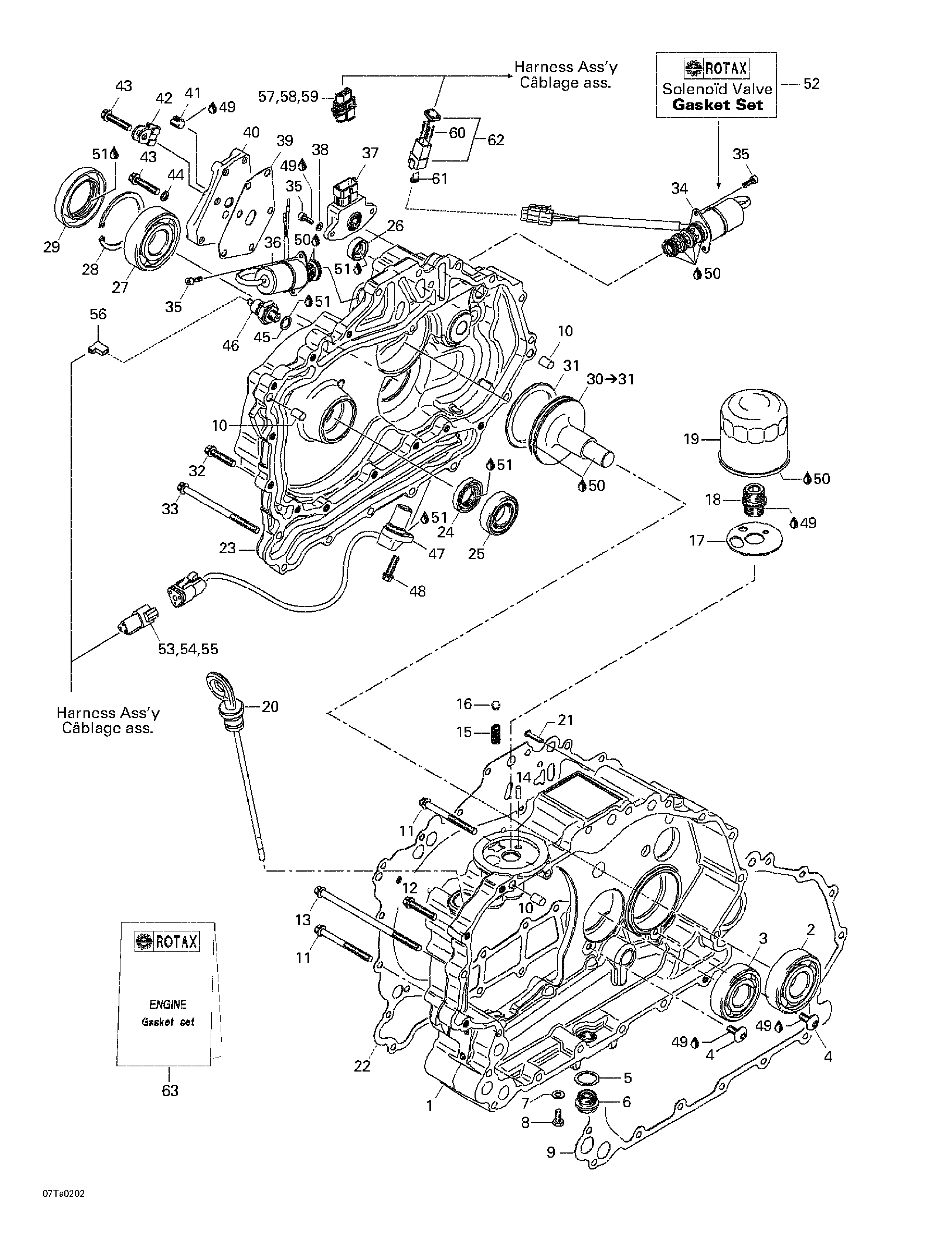

01- Clutch Housing And Cover для BRP Traxter XL, 7477 - 2002
-
№АртикулНазвание
-
1711211921 Clutch HousingClutch Housing
-
2420932825 Ball Bearing 6305Ball Bearing 6305
-
3711632200 Ball Bearing 63/22Ball Bearing 63/22
-
4711241531 Flat Head Screw M6 x 16Flat Head Screw M6 x 16
-
5711552280 O-RingO-Ring
-
6711840277 Drain PlugDrain Plug
-
7404146600 Seal WasherSeal Washer
-
8711241751 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
9711650582 Clutch Housing GasketClutch Housing Gasket
-
10290632010 Pin M8 x 12Pin M8 x 12
-
11711940576 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
12711941126 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
13711640371 Hex. Flanged Screw M6 x 130Hex. Flanged Screw M6 x 130
-
14711232710 Needle PinNeedle Pin
-
15711238050 SpringSpring
-
16711232370 BallBall
-
17711627370 Oil Filter WasherOil Filter Washer
-
18711924420 Oil Filter NippleOil Filter Nipple
-
19711256620 Oil FilterOil Filter
-
20711256610 Oil DipstickOil Dipstick
-
21711229170 Groove Pin M4 x 20Groove Pin M4 x 20
-
22711650592 Clutch Cover GasketClutch Cover Gasket
-
23711211811 Clutch CoverClutch Cover
-
24290930390 Oil SealOil Seal
-
25711232190 Ball Bearing 6304Ball Bearing 6304
-
26711250455 Oil SealOil Seal
-
27420932825 Ball Bearing 6305Ball Bearing 6305
-
28711445070 Retaining RingRetaining Ring
-
29711650680 Oil SealOil Seal
-
30711257056 Disengaging Piston. Includes 30 - 31.Disengaging Piston. Includes 30 - 31.
-
31711650550 K-Grooved RingK-Grooved Ring
-
32711241941 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
33711640361 Hex. Flanged Screw M6 x 100Hex. Flanged Screw M6 x 100
-
34711256550 Soleno‹d ValveSoleno‹d Valve
-
35711440291 Socket Head Screw M4 x 12Socket Head Screw M4 x 12
-
36711256560 Pressure ValvePressure Valve
-
37711265600 Potentiometer (Sub Transmission)Potentiometer (Sub Transmission)
-
38420244073 Washer 4.3Washer 4.3
-
39711650620 GasketGasket
-
40711211935 Oil Duct CoverOil Duct Cover
-
41420240480 Plug ScrewPlug Screw
-
42711853412 Cable ClipCable Clip
-
43711241941 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
44711230415 Seal WasherSeal Washer
-
45711230150 Oil SealOil Seal
-
46711256640 Oil Pressure SwitchOil Pressure Switch
-
47711265622 Speed SensorSpeed Sensor
-
48711241861 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
49293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
51293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
52711296375 Soleno‹d Valve Gasket SetSoleno‹d Valve Gasket Set
-
53409207600 Male LockMale Lock
-
54278000631 Male TerminalMale Terminal
-
55409207000 Male HousingMale Housing
-
56409010300 Female TerminalFemale Terminal
-
57278000998 Female TerminalFemale Terminal
-
58278000999 Wire SealWire Seal
-
59278000997 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
60409014800 Male TerminalMale Terminal
-
61710000046 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
62710000045 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
52711296372 Engine Gasket SetEngine Gasket Set
