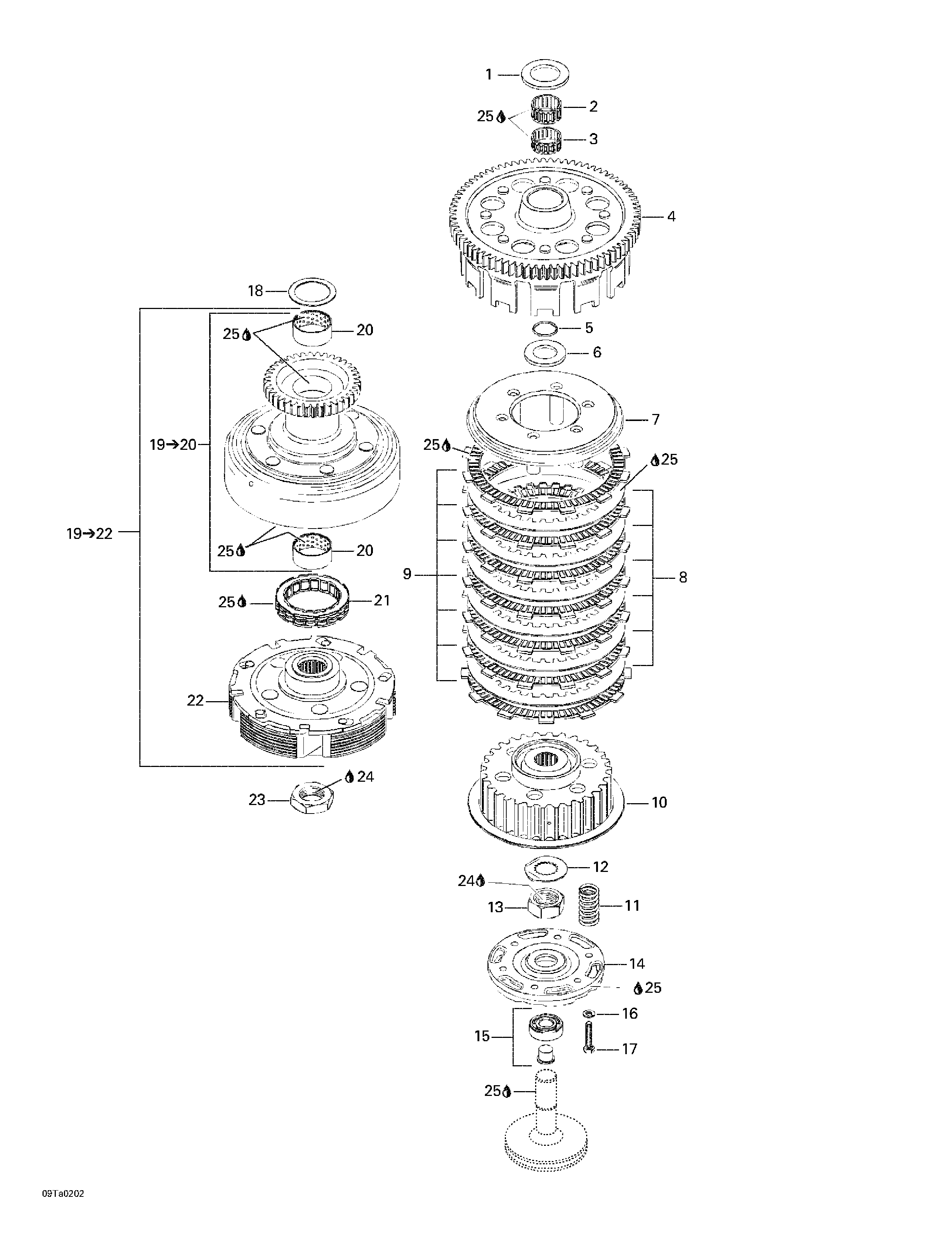

05- Clutch для BRP Traxter XL, 7477 - 2002
-
№АртикулНазвание
-
1711227390 Thrust WasherThrust Washer
-
2711632070 Needle BearingNeedle Bearing
-
3711232655 Needle CageNeedle Cage
-
4711659203 Clutch DrumClutch Drum
-
5293300018 O-RingO-Ring
-
6420227600 Thrust WasherThrust Washer
-
7711659230 Inner PlateInner Plate
-
8711259915 Plate 1.5 mmPlate 1.5 mm
-
9711259907 Lamella 3 mmLamella 3 mm
-
10711259876 Clutch HubClutch Hub
-
11711239741 Clutch SpringClutch Spring
-
12711245320 Tab WasherTab Washer
-
13711242605 Nut M18Nut M18
-
14711259131 Retaining PlateRetaining Plate
-
15711259143 Hub Thrust ass'y with Ball BearingHub Thrust ass'y with Ball Bearing
-
16420945750 Lock WasherLock Washer
-
17711241770 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
18711427130 Thrust WasherThrust Washer
-
19711296093 Clutch Ass'y. Includes 19 - 22.Clutch Ass'y. Includes 19 - 22.
-
19420659177 Clutch. Includes 19 - 20.Clutch. Includes 19 - 20.
-
20711233765 Clutch BushingClutch Bushing
-
21711659240 Sprag ClutchSprag Clutch
-
22711659180 Clutch HubClutch Hub
-
23711842234 Nut M22Nut M22
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
