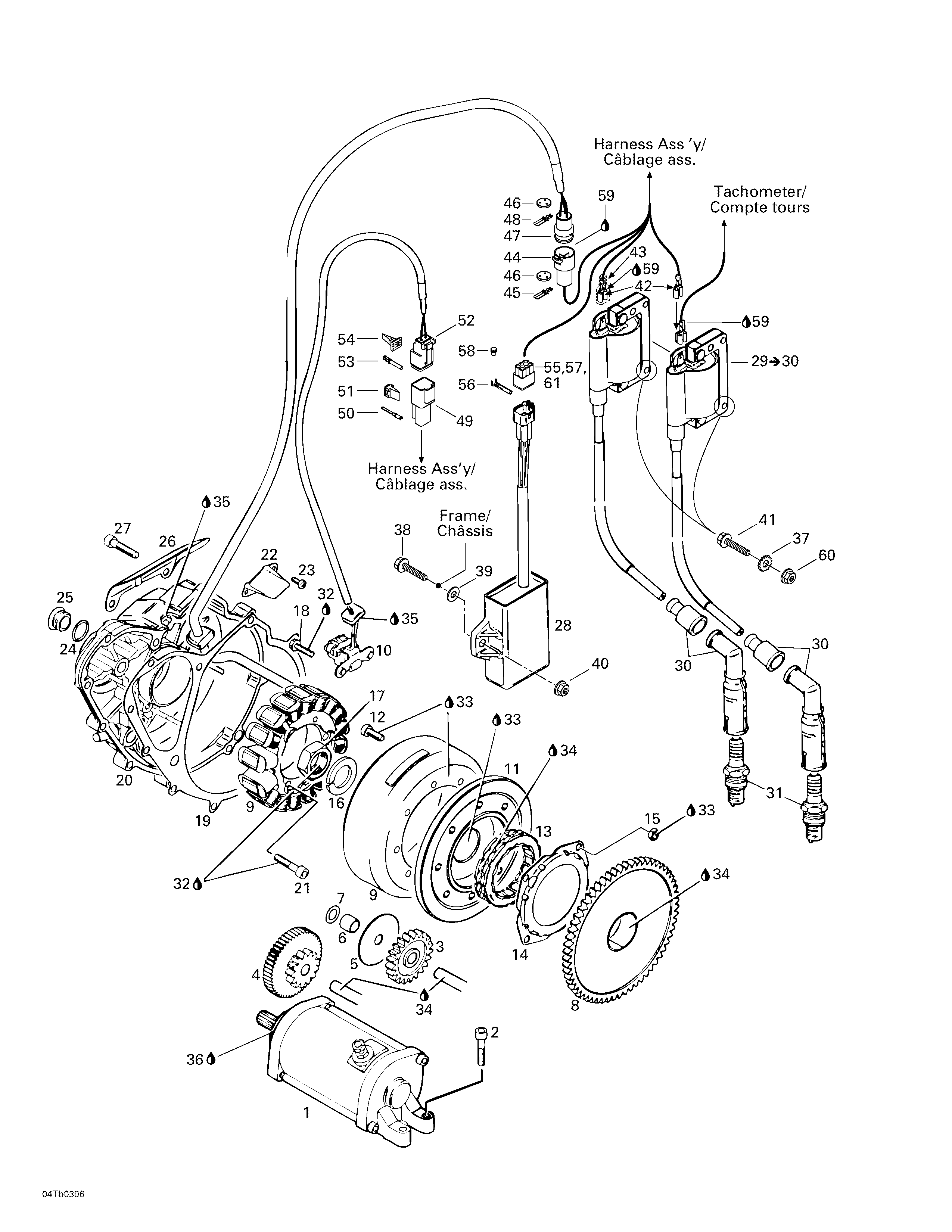

03- Ignition для BRP DS 650 Baja - 2003
-
№АртикулНазвание
-
1420294351 Electric StarterElectric Starter
-
1420294354 Brush Kit (Not shown)Brush Kit (Not shown)
-
1293300103 Starter O-ring (Not shown)Starter O-ring (Not shown)
-
2205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
3420234655 Intermediate Gear (24 Teeth)Intermediate Gear (24 Teeth)
-
4420234756 Intermediate Gear (11/52 Teeth)Intermediate Gear (11/52 Teeth)
-
5420627080 Thrust WasherThrust Washer
-
6420247785 SpacerSpacer
-
7420827590 Thrust WasherThrust Washer
-
8420634317 Starting Gear (61 Teeth)Starting Gear (61 Teeth)
-
9420295172 Magneto Ass'y 12V/280WMagneto Ass'y 12V/280W
-
10420265153 Pickup Ass'yPickup Ass'y
-
11420264577 Flywheel HubFlywheel Hub
-
12420640980 Hex. Locking Screw M6 X 16Hex. Locking Screw M6 X 16
-
13420958857 Clutch-SpragClutch-Sprag
-
14420259192 Housing-Clutch SpragHousing-Clutch Sprag
-
15420242031 Nut BM6Nut BM6
-
16420945759 Lock Washer 22 mmLock Washer 22 mm
-
17420842234 Nut M22Nut M22
-
18420941925 Tapping Screw M5 x 16Tapping Screw M5 x 16
-
19420250920 GasketGasket
-
20420211291 Ignition CoverIgnition Cover
-
21420241810 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
22420251880 Cable Inner CoverCable Inner Cover
-
23420240195 Tapping ScrewTapping Screw
-
24420250890 O-RingO-Ring
-
25420241801 Drain PlugDrain Plug
-
26420251990 Cable External CoverCable External Cover
-
27205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
28420664170 Amplifier BoxAmplifier Box
-
29420265357 Ignition Coil. Includes 29 - 30.Ignition Coil. Includes 29 - 30.
-
30420665010 Spark Plug CapSpark Plug Cap
-
31707000008 Spark Plug (NGK DR8EA)Spark Plug (NGK DR8EA)
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
35420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
36711297616 Grease, 60 gGrease, 60 g
-
37234461608 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
38207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
39224061201 Flat WasherFlat Washer
-
40233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
41207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
42710000114 Female TerminalFemale Terminal
-
43710000115 Terminal EnvelopeTerminal Envelope
-
44409207900 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
45409011100 Male TerminalMale Terminal
-
46409208500 SealSeal
-
47409208200 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
48409011900 Female TerminalFemale Terminal
-
49409206900 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
50278000631 Male TerminalMale Terminal
-
51409207500 Male Lock (2 Circuits)Male Lock (2 Circuits)
-
52409207300 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
53278000632 Female TerminalFemale Terminal
-
54409207100 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
55710000190 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
56278001638 Female TerminalFemale Terminal
-
57710000189 Wire SealWire Seal
-
58710000080 CapCap
-
59293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
60233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
61710000191 Locking Wage (6 Circuits)Locking Wage (6 Circuits)
