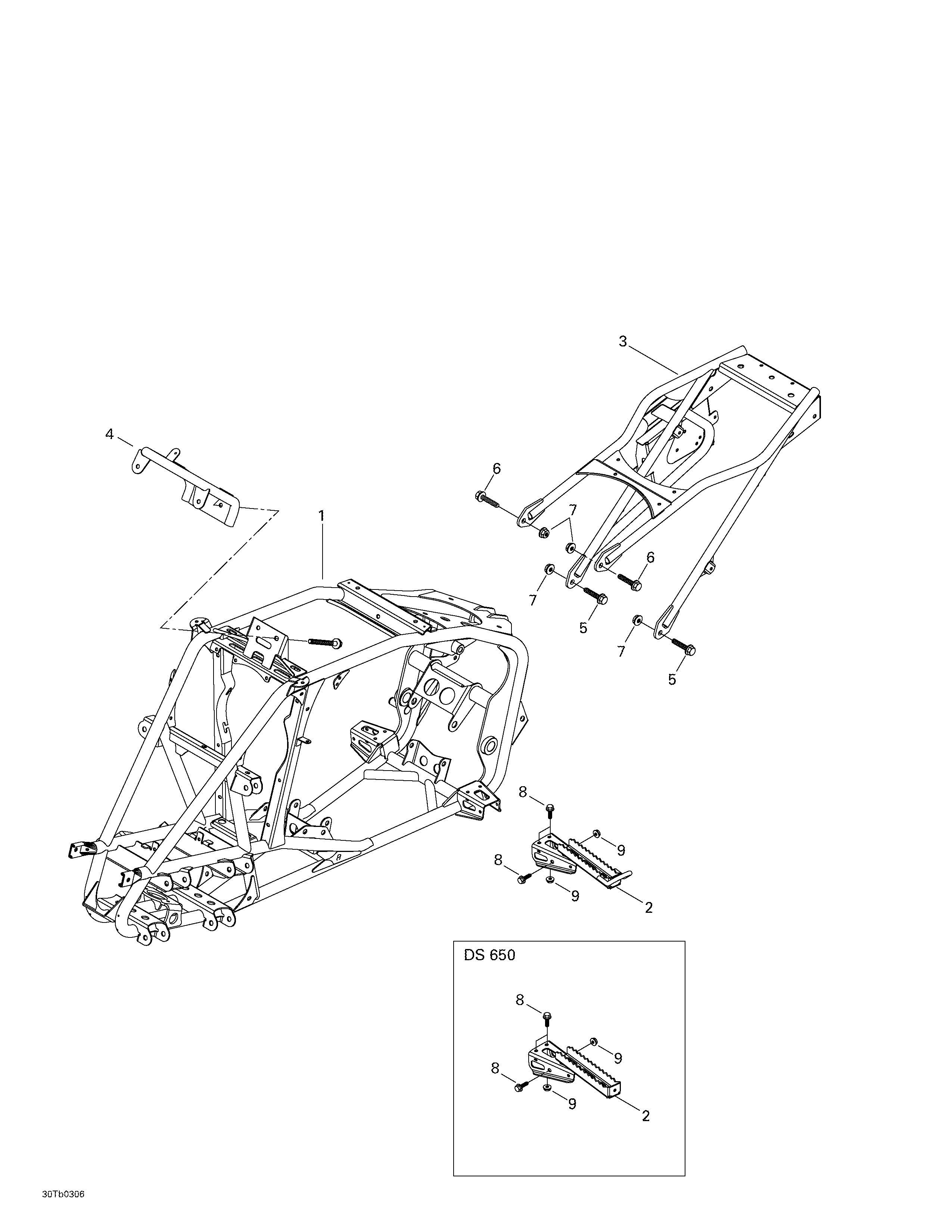

09- Frame для BRP DS 650 Baja - 2003
-
№АртикулНазвание
-
1705200185 Painted FramePainted Frame
-
2705200616 R.H. Footrest. DS 650 Baja.R.H. Footrest. DS 650 Baja.
-
705200313 R.H. Footrest. DS 650.R.H. Footrest. DS 650.
-
705200620 L.H. Footrest. DS 650 Baja.L.H. Footrest. DS 650 Baja.
-
705200315 L.H. Footrest. DS 650.L.H. Footrest. DS 650.
-
3705200359 Frame ExtensionFrame Extension
-
4705200189 Box SupportBox Support
-
5207503087 Hex. Flanged Screw M10 x 30 (Scotch Grip)Hex. Flanged Screw M10 x 30 (Scotch Grip)
-
6207505087 Hex. Flanged Screw M10 x 50 (Scotch Grip)Hex. Flanged Screw M10 x 50 (Scotch Grip)
-
7233201487 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
8207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
9233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
