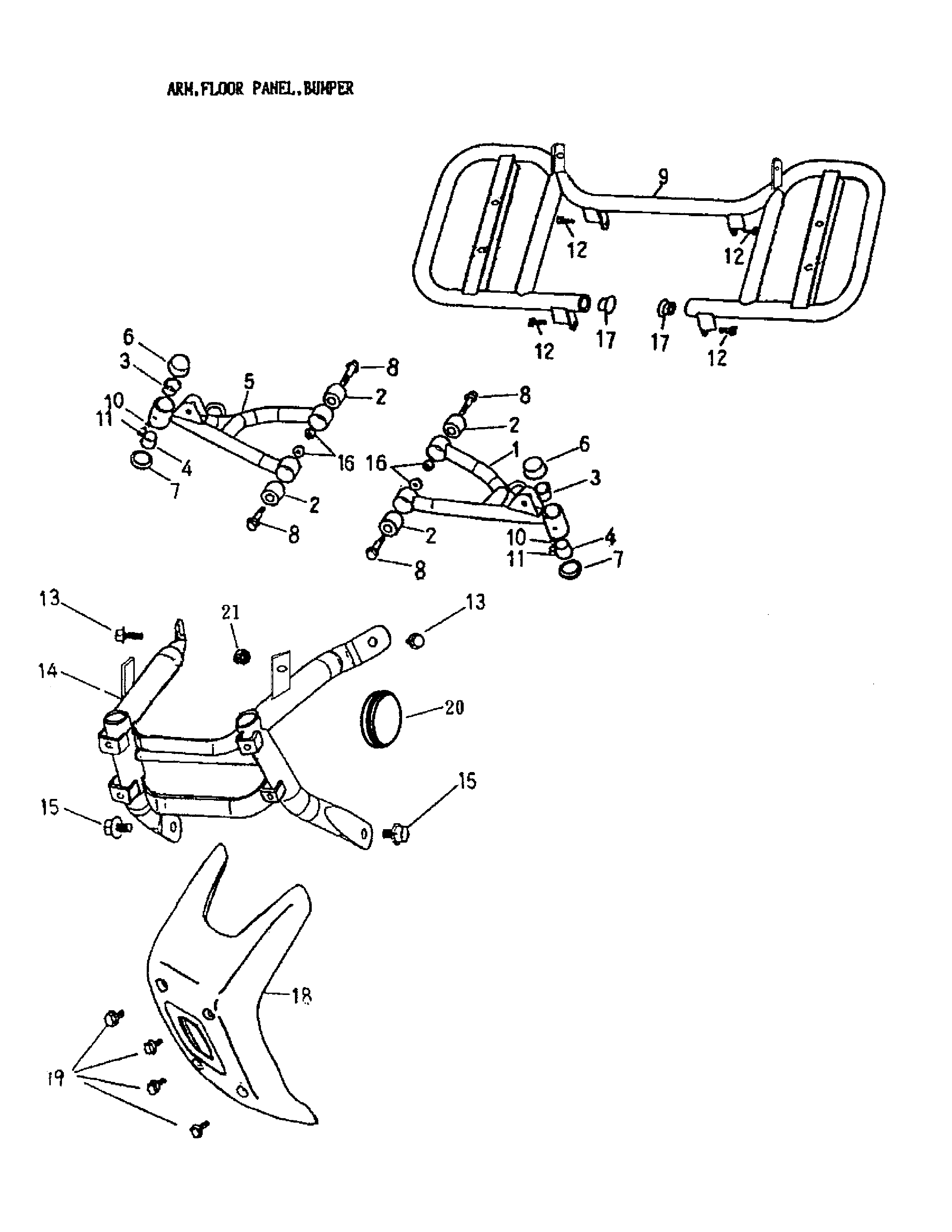

09- Arm, Foot Rest, Bumper 170a-14 для BRP Mini DS 90 2-strokes - 2003
-
№АртикулНазвание
-
1A51300145001 Left Suspension ArmLeft Suspension Arm
-
2A96400102829 Rubber Bushing (10 x 28 x 29)Rubber Bushing (10 x 28 x 29)
-
3A51201145000 BushBush
-
4A51202145000 BushBush
-
5A51200145001 Right Suspension ArmRight Suspension Arm
-
6A5120314500A Waterproof CoverWaterproof Cover
-
7A51204145001 Dustproof CoverDustproof Cover
-
8A960001004814G Hex. Washer Face Bolt M10 x 48Hex. Washer Face Bolt M10 x 48
-
9A64310166000 Floor PanelFloor Panel
-
10A9650106000 Grease ValveGrease Valve
-
11A9650206000 Grease Valve CapGrease Valve Cap
-
12A960001002014G Hex. Washer Face Bolt M10 x 20Hex. Washer Face Bolt M10 x 20
-
13A960000601610G Hex. Washer Face Bolt M6 x 16Hex. Washer Face Bolt M6 x 16
-
14A50104166000 BumperBumper
-
15A960000801512G Hex. Washer Face Bolt M8 x 15Hex. Washer Face Bolt M8 x 15
-
16A9035010000G Nylon Nut M10Nylon Nut M10
-
17A64330145000 Floor Panel Rubber CapFloor Panel Rubber Cap
-
18A50107155000 Bumper CoverBumper Cover
-
19A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
20A33741145000YL ReflectorReflector
-
21233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
