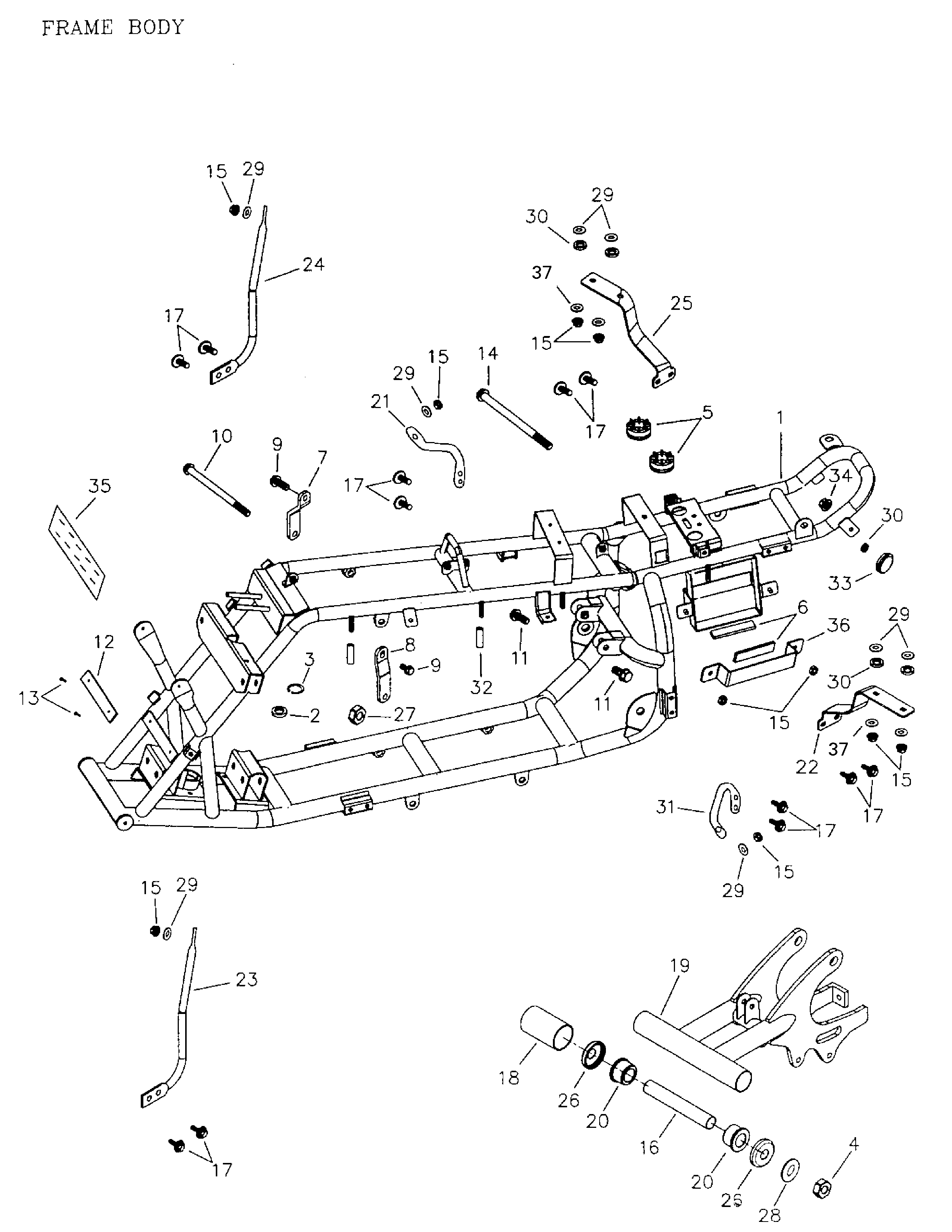

09- Frame And Body 170a-13 для BRP Mini DS 90 2-strokes - 2003
-
№АртикулНазвание
-
1A50100166001 Frame CompFrame Comp
-
2A961006002ZZ Radial Ball Bearing (6002ZZ)Radial Ball Bearing (6002ZZ)
-
3A945123200R Internal CirclipInternal Circlip
-
4A9035014000 Nylon Nut M14Nylon Nut M14
-
5A77211145000 RubberRubber
-
6A17505145000 Sponge PadSponge Pad
-
7A50353145002 R.H. Engine Fixed PlateR.H. Engine Fixed Plate
-
8A50354145002 L.H. Engine Fixed PlateL.H. Engine Fixed Plate
-
9A960001002014G Hex. Washer Face Bolt M10 x 20Hex. Washer Face Bolt M10 x 20
-
10A960001020814 Hex. Washer Face Bolt M10 x 208Hex. Washer Face Bolt M10 x 208
-
11A960000803612G Hex. Washer Face Bolt M8 x 36Hex. Washer Face Bolt M8 x 36
-
12A50110145000 Frame No. PlateFrame No. Plate
-
13A90662105000 RivetRivet
-
14A960001429019 Hex. Washer Face Bolt M14 x 290Hex. Washer Face Bolt M14 x 290
-
15A9035006000 Nylon Nut M6Nylon Nut M6
-
16A52104145000 Swing Arm SpacerSwing Arm Spacer
-
17A920000601410 Hex. Bolt M6 x 14Hex. Bolt M6 x 14
-
18A52101145001 Rubber SleeveRubber Sleeve
-
19A52100145003 Swing Arm Sub Ass'ySwing Arm Sub Ass'y
-
20A52103145000 BushBush
-
21A83401155000 Rear Cover Lower Right Fixed PoleRear Cover Lower Right Fixed Pole
-
22A83402166000 Rear Cover Up Left Fixed PlateRear Cover Up Left Fixed Plate
-
23A64307155000 Front Cover Left Fixed PoleFront Cover Left Fixed Pole
-
24A64308155000 Front Cover Right Fixed PoleFront Cover Right Fixed Pole
-
25A83403166000 Rear Cover Up Right Fixed PlateRear Cover Up Right Fixed Plate
-
26A52144145000 Swing Arm Seal CoverSwing Arm Seal Cover
-
27A9035010000 Nut Nylon M10Nut Nylon M10
-
28A941011426030 Plain Washer (14 x 26 x 3)Plain Washer (14 x 26 x 3)
-
29A941010618020 Plain Washer (6 x 18 x 2)Plain Washer (6 x 18 x 2)
-
30A94102145000 Rubber WasherRubber Washer
-
31A83404155000 Rear Cover Lower Left Fixed PoleRear Cover Lower Left Fixed Pole
-
32A11357145000 Cable Clamp RubberCable Clamp Rubber
-
33A33741145000RD ReflectorReflector
-
34233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
-
35ABO507557 Frame DecalFrame Decal
-
36A31504145000 Battery BracketBattery Bracket
-
37A941010614020 WasherWasher
