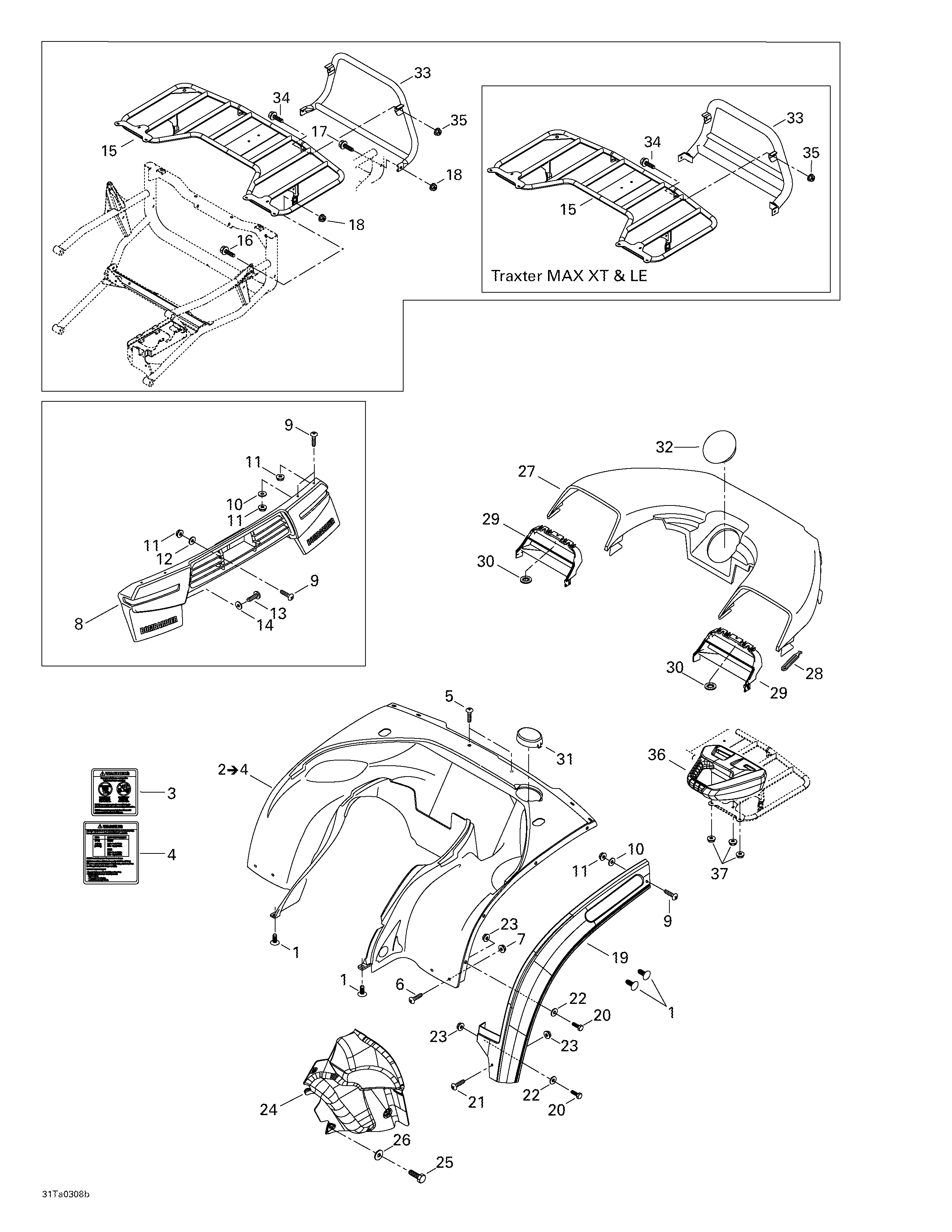

09- Body And Accessories, Rear View для BRP Traxter Max - 2003
-
№АртикулНазвание
-
1293730011 DartDart
-
2703500277 Rear fender. Includes 2 - 4.Rear fender. Includes 2 - 4.
-
3704900634 Warning label. (Passenger under 12 years old)Warning label. (Passenger under 12 years old)
-
4704900519 Warning label. (Tire pressure)Warning label. (Tire pressure)
-
5732600009 Phillips forming screw M6 x 18Phillips forming screw M6 x 18
-
6211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
7233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
8705000709 Rear fasciaRear fascia
-
9211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
10224060201 Flat washerFlat washer
-
11233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
12224060201 Flat washerFlat washer
-
13732600009 Phillips forming screw M6 x 18Phillips forming screw M6 x 18
-
14224061121 Flat washerFlat washer
-
15705000674 Rear luggage rackRear luggage rack
-
16207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
17207685044 Hex flanged screw M8 x 50Hex flanged screw M8 x 50
-
18233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
19705000701 L.h. rear mudguardL.h. rear mudguard
-
705000702 R.h. rear mudguardR.h. rear mudguard
-
20207162044 Hex screw M6 x 20Hex screw M6 x 20
-
21211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
22224060201 Flat washerFlat washer
-
23233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
24705000133 L.h. tank protectorL.h. tank protector
-
705000134 R.h. tank protectorR.h. tank protector
-
25210261680 Hex flanged forming screw M6 x 16Hex flanged forming screw M6 x 16
-
26224061201 Flat washerFlat washer
-
27705000576 Fender coverFender cover
-
28570023800 Windshield LatchWindshield Latch
-
29705000180 L.h. grillL.h. grill
-
705000181 R.h. grillR.h. grill
-
30250100000 Push nutPush nut
-
31705000132 Radiator cap coverRadiator cap cover
-
32705000207 CapCap
-
33705000602 Rear bumper. STDRear bumper. STD
-
705000586 Rear bumper. LE & XTRear bumper. LE & XT
-
34207682046 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
35233281416 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
36705000703 L.h. handleL.h. handle
-
705000704 R.h. handleR.h. handle
-
37233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
